Color component output connectors (P
R
/C
R
, P
B
/C
B
and Y)
The red (P
R
/C
R
), blue (P
B
/C
B
) and brightness (Y) signals are output independently, achieving
more faithful reproduction of the colors.
• The color component input connectors may be marked differently on some TVs or monitors
(P
R
, P
B
and Y/R-Y, B-Y and Y/C
R
, C
B
and Y, etc.). For details, refer to the TV’s operating
instructions.
• If your TV is compatible with progressive scan, press the “SHIFT” and “P.SCAN” button on
the front panel so that “P.SCAN” lights on the display. This results in a high quality picture
with little flickering. (No signals are output from the Video out, S-Video output (S terminal)
when “P.SCAN” is lit.)
NOTES:

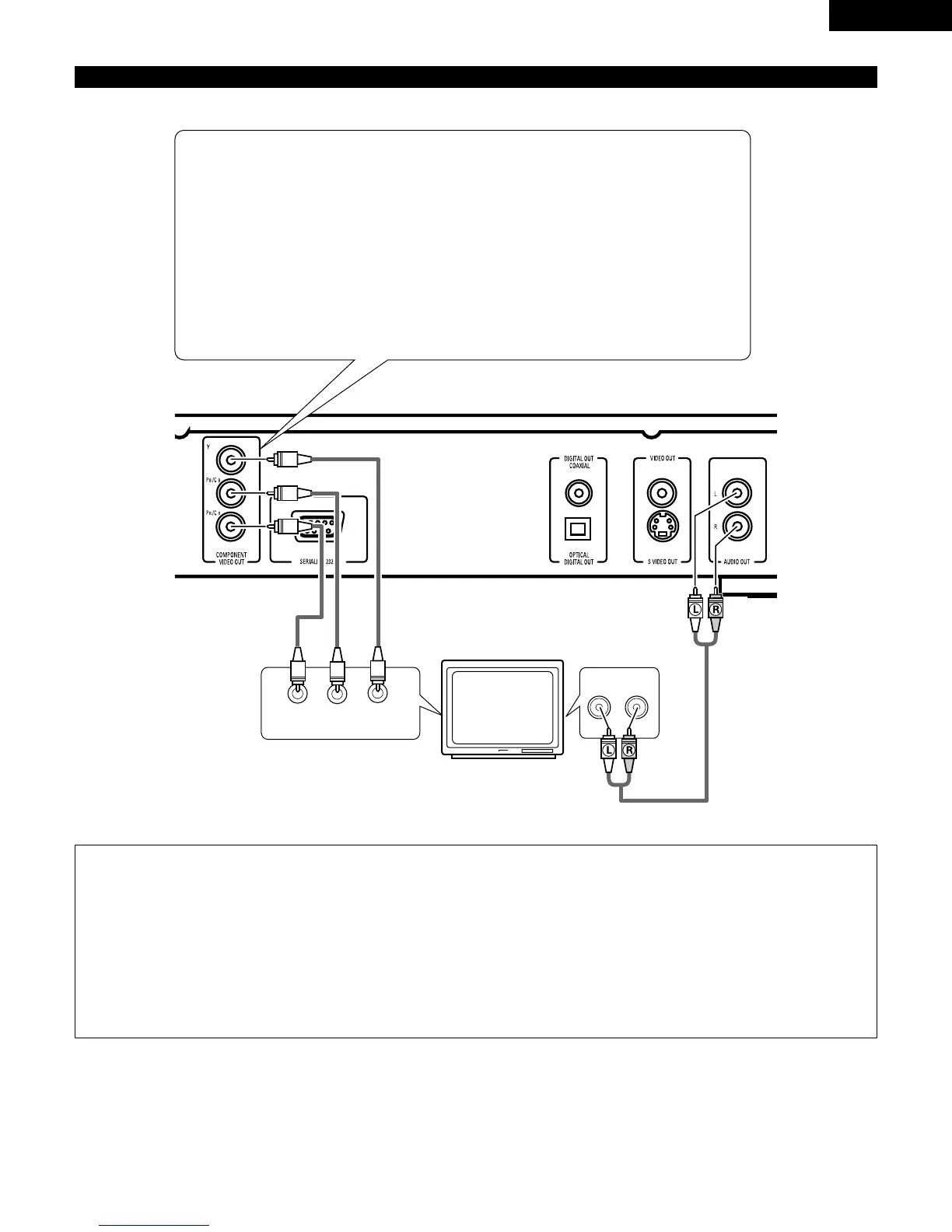

• Use the three commercially available video cords to connect the DN-V200/DN-V300’s color component output connectors to the
TV or monitor.
• Set the “TV TYPE“ in “VIDEO SETUP“ in “SETUP“ to comply with your TV's video format. When the TV is NTSC formatted, set
to NTSC (see page 23).
• Set the “VIDEO OUT” in “VIDEO SETUP” in “SETUP” to comply with Progressive TV.
• To use with 2-channel audio output, set “STEREO” in “DOWNMIX” in “AUDIO SETUP” in “SETUP” at the initial settings (see
page 25).
• Set the “TV ASPECT” in “VIDEO SETUP” in “SETUP” to comply with your TV’s aspect (see page 22).
• No audio signals are output from the DN-V200/DN-V300’s “AUDIO OUT” connector when discs recorded in DTS are played.
