I UNI_U_ llIllll II I IIIIIIIIIII

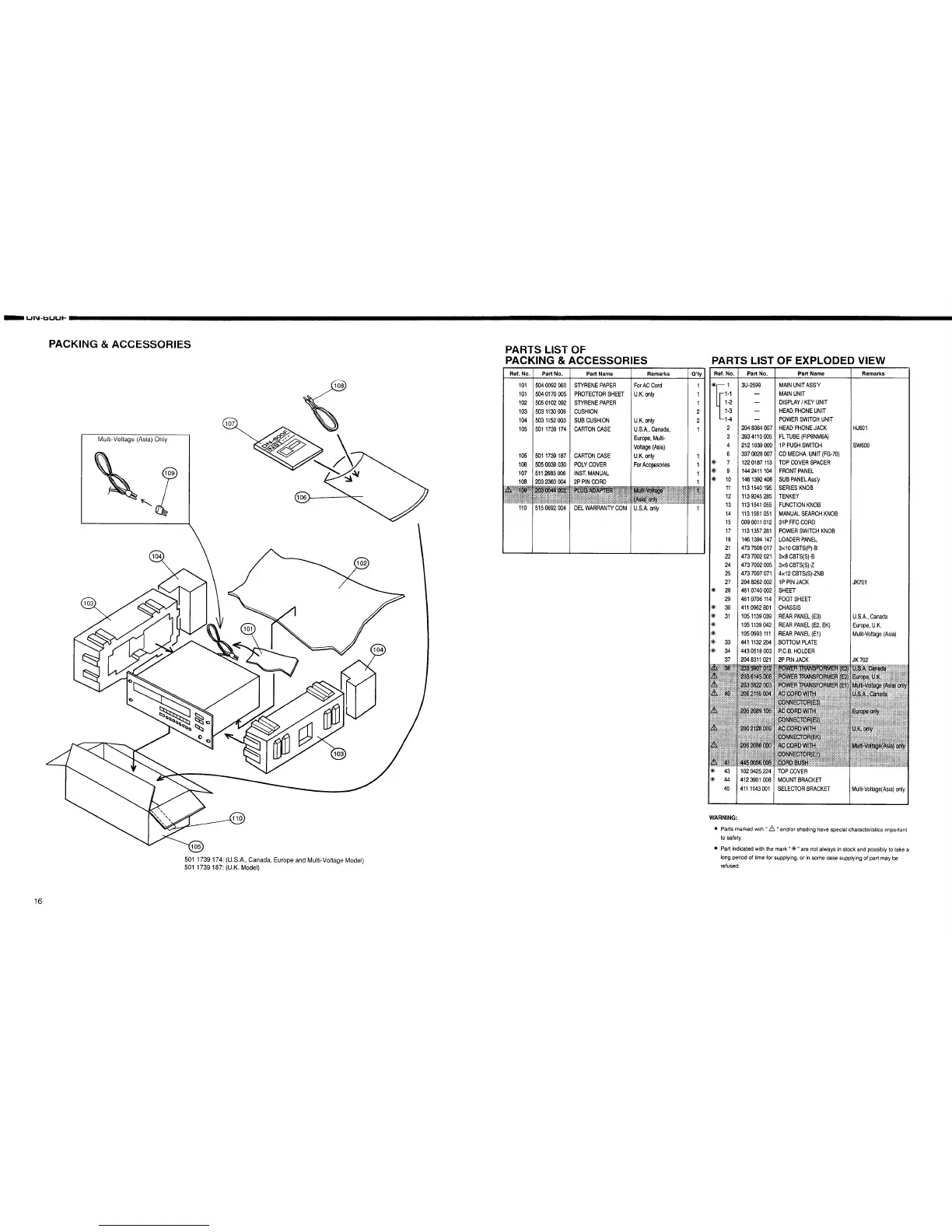

PACKING & ACCESSORIES
Multi-Voltage (Asia) Only
r....
16
!
-@
501 1739 174: (U.S.A., Canada, Europe and Multi-Voltage Model)
501 1739 187: (U.K. Model)
PARTS LIST OF
PACKING & ACCESSORIES PARTS LIST OF EXPLODED VIEW
Ref. No. Part No. Part Name
101 504 0092060 STYRENEPAPER
101 504 0170005 PROTECTORSHEET
102 505 0102092 STYRENEPAPER
103 503 1130009 CUSHION
104 503 1152003 SUBCUSHION
105 501 1739174 CARTONCASE
105 501 1739187 CARTONCASE
106 5050038 030 POLYCOVER
107 5112683 006 INST,MANUAL
108 2032360 004 2P PINCORD
Remarks
ForACCord
U.K.onty
U.K.only
U.S.A.,Canada,
Europe,Multi-
Voltage(Asia)
U.K.only
ForAcc_sories
O'ty
1
1
1
2
2
1
1
1
1
1
1!0 5150692 004 DELWARRANTYCOM U.S.A.only 1
Ref. No, Part No. Part Name Remarks
r-- 1 3u-2599 MAINUNITASS'Y
[
- 1-1 -- MAIN UNIT
1-2 -- DISPLAY/ KEYUNIT
1-3 -- HEAD PHONEUNIT
-1-4 -- POWERSWITCHUNIT
2 204 8364007 HEAD PHONEJACK HJ601
3 3934110005 FLTUBE(FIP8NM6A)
4 212 1039000 1PPUSHSWITCH SW600
6 387 0028007 CD MECHA.UNIT(FG-70)
® 7 1220187113 TOPCOVERSPACER
® 9 144 2411104 FRONTPANEL
® 10 146 1392408 SUBPANELAss'y
11 113 1540195 SERIESKNOB
12 1139245285 TENKEY
13 113 1541055 FUNCTIONKNOB
14 113 1561051 MANUALSEARCHKNOB
15 009 0011012 31P FFCCORD
17 113 1357281 POWERSWITCHKNOB
18 146 1394147 LOADERPANEL
21 4737508017 3x10 CBTS(P)-B
22 4737002 021 3x8 CBTS(S)-B
24 4737002 005 3x6 CBTS(S)-Z
25 473 7007 071 4x12 CBTS(S)-ZNB
27 2048262002 1P PINJACK JK701
® 28 461 0740002 SHEET
29 461 0706 114 FOOTSHEET
30 411 0962801 CHASSIS
31 105 1139039 REARPANEL(E3) U.S.A.,Canada
@ 105 1139042 REARPANEL(E2, EK) Europe,U.K.
® 1050993 111 REARPANEL(El) Mulit-Voltage(Asia)
® 33 441 1132204 BO'FrOMPLATE
34 4430518003 P.C.B.HOLDER
37 204 8311021 2P PINJACK JK 702
Nii i
® 4,3 102 0425 224 TOP COVER
=® 44 4123901 008 MOUNTBRACKET
45 4111143001 SELECTORBRACKET Multi-Voltage(Asia)only
WARNING:
• Parts marked with ",A, "and/or shading have special characteristics important
to safety.
Part indicated with the mark "®" are not always in stock and possibly to take a
long pedod of time for supplying, or in some case supplying of part may be
refused.
To Next Page
