PARTS LIST OF FG-70 MECHANISM UNIT
Ref.No. Part .No
2 9KA90H006
3 9KA9OH005
7 9KA80G0 17
8 9KA80G0 18
9 4990191 009
12 9KS01Wl 47
13 9KA85P009
15 0090051 001
16 443 1093006
17 9KA82G253
18 9KM 20S004
19 9KA85G026
20 9KA85G020
21 9KA85G021
22 9KA85G004
23 9KA85G022
24 9KA85G006
25 9KA85G007
26 9KA85G008
27 9KA85G009
28 9KA85G010
29 9KA85G030
30 9KA85P001
31 9KA85H001
34 9KA82G057
35 9KA91H002
36 9KB30B008
37 9KM26B004
39 9KA82G308
40 9KA85G027
41 9KS01Wl 48
42 9KA85S001
43 9KA85S002
44 9KA85S003
45 9KA85G033
46 9KA85G036
47 9KB20B005
48 9KS21W604
50 9KA85S005
60 9KA85A007
61 9KA85A008
62 9KA85A008
62-1
Part Name Remarks
FSFIXINGSCREW
FEEDSHAFT
DRIVEGEAR(A)
DRIVEGEAR(B)
LASERP.U
LEAFSWITCH
MOTORP.W.B.
12P FFCCABLE
FFCBUSH
SEB-PHCONNECTORBASE
2x4SCREW
MECHA.PLATE(FG70)
MECHA.FRAME(FG70)
CDTRAY(FG70)
CLAMPERFRAME
UDPLATEGEAR(FG70)
CLAMPER(F)
RELAYGEAR(A)
RELAYGEAR(B)
RELAYGEAR(C)
GEARBELT(F)
DAMPER(FG40)
CLAMPERPLATE(F)
SCREW(F)
MAGNET
3x8 (W-10)SCREW
3x8 BAINDSCREW
2.6x4BAINDSCREW
SEB-PH(RED)
CNW2(FG70)
OP/CLSWITCH(SSS12)
SPRING(A)
SPRING(B)
SPRING(C)
GEARGUIDE
TRAYSTOPPER
2x5 BAIND(B)
STW2.1x6x0.4
HOLDSPRING
SPINDLEMOTORASS'y
FEEDMOTORASS'y
LOADINGMOTORASS'y
MOTORP.W.B.
KSS-240A

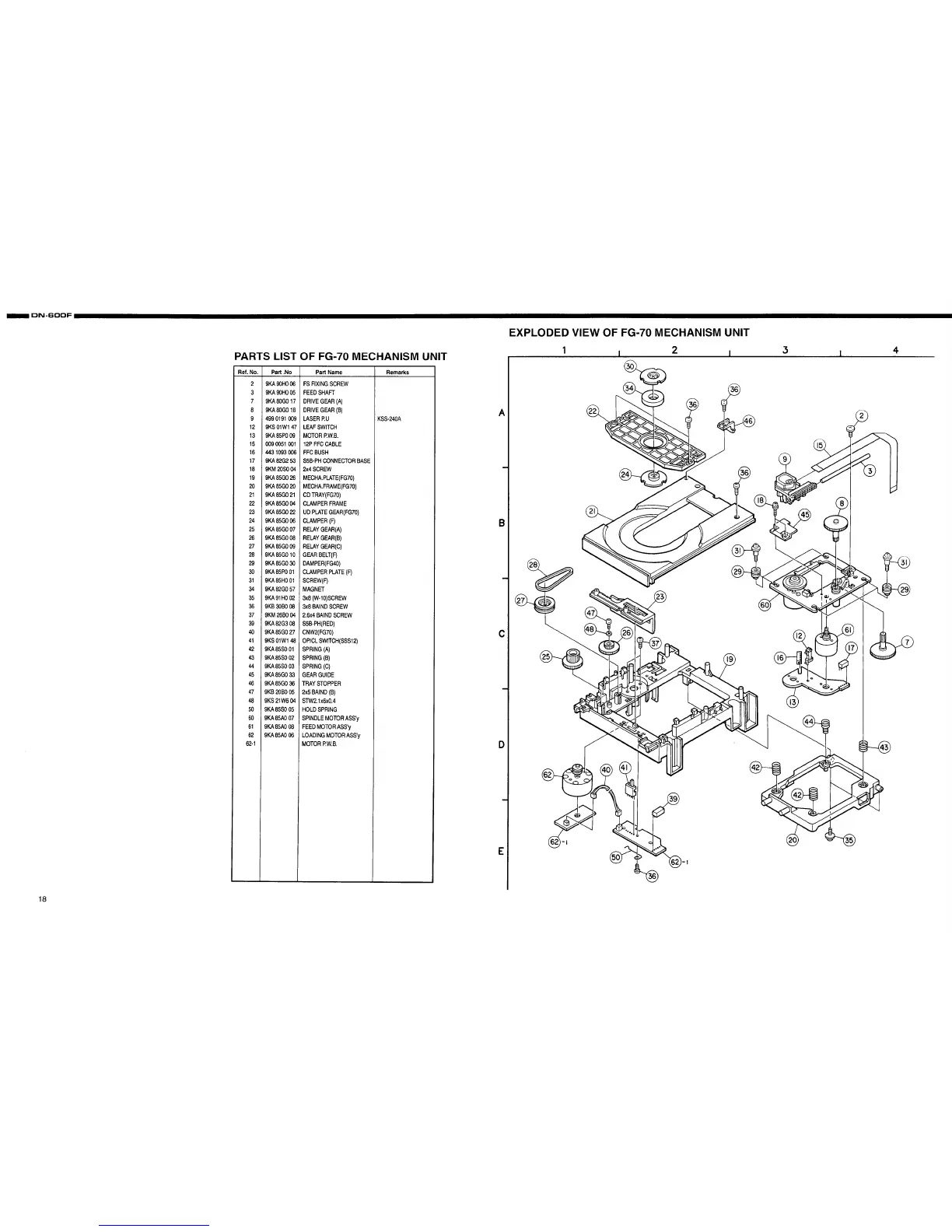

EXPLODED VIEW OF FG-70 MECHANISM UNIT
1 I 2 I
3 4.
A
B
C
D
E
