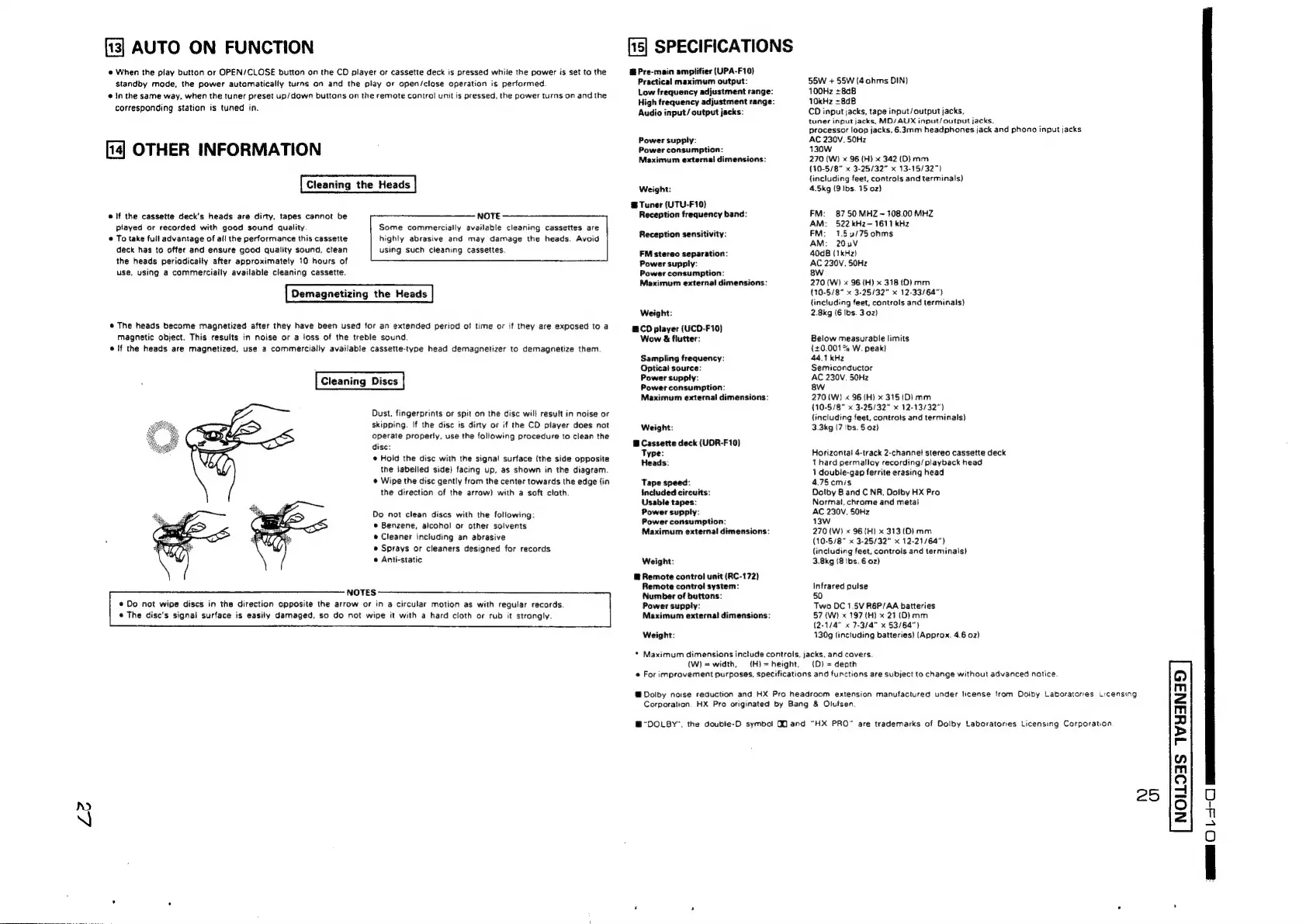

fi3] AUTO ON FUNCTION
@ When the play button or OPEN/CLOSE button on the CD piayer or cassette deck is pressed while the power is set to the
Standby mode, the power automatically turns on and the play or open/close operation is performed.
@ In the same way, when the tuner preset up/down buttons on the remote control unit is pressed, the power turns on and the
corresponding station is tuned in.
OTHER INFORMATION
e If the cassette deck’s heads are dirty, tapes cannot be
played or recorded with good sound quality.
@ To take full advantage of al! the performance this cassette
deck has to offer and ensure good quality sound, clean
the heads periodically after approximately 10 hours of
use, using a commercially available cleaning cassette.
Demagnetizing the Heads
The heads become magnetized after they have been used for an extended period of time or if they are exposed to a
Magnetic object. This results in noise or a loss of the treble sound
@ If the heads are magnetized, use a commercially available cassette-type head demagnetizer to demagnetize them.
Cleaning Discs
Dust, fingerprints or spit on the disc will result in noise or
skipping. If the disc is dirty or if the CD player does not
operate properly, use the following procedure to clean the
dise:
@ Hold the disc with the signa! surface (the side opposite
the jabelled side) facing up, as shown in the diagram.
© Wipe the disc gently from the center towards the edge {in
the direction of the arrow) with a soft cloth.
NOTE
Some commercially available cleaning cassettes are
highly abrasive and may damage the heads. Avoid
using such cleaning cassettes.
Do not clean discs with the following:
© Benzene, alcohol or other solvents
@ Cleaner including an abrasive
e Sprays or cleaners designed for records
@ Anti-static
NOTES
© Do not wipe discs in the direction opposite the arrow or in a circular motion as with regular records.
¢ The disc’s signal surface is easily damaged, so do not wipe it with a hard cloth or rub it strongly.
[15] SPECIFICATIONS
@ Pre-main amplifier (UPA-F10)
Practical maximum output:
Low frequency adjustment range:
High frequency adjustment range:
Audio input/output jacks:
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
@ Tuner (UTU-F10)
Reception frequency band:
Reception sensitivity:
FM stereo separation:
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
SCO player (UCD-F10)
Wow & flutter:
Sampling frequency:
Optica! source:
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
@ Cassette deck (UOR-F10)
Type:
Heads:
Tape speed:
included circuits:
Usable tapes:
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
@ Remote control unit (RC-172)
Remote control system:
Number of buttons:
Power supply:
Maximum external dimensions:
Weight:
(W) = width, {H) = height,
@ Dolby noise reduction and HX Pro headroom extension manufactured under license trom Doiby Laboratorres Ucensing
Corporation. HX Pro originated by Bang & Olufsen
W “DOLBY”, the double-D symbot Mand “HX PRO” are trademarks of Dolby Laboratories Licensing Corporation
Maximum dimensions include controls, jacks, and covers.
(D) = deoth
© For improvement purposes, specifications and functions are subject to change without advanced notice.
55W + 55W (4 ohms DIN)
100Hz +88
10kHz =8dB
CO input jacks, tape input/output jacks,
tuner input jacks, MD/AUX input/output jacks,
processor loop jacks, 6.3mm headphones jack and phono input jacks
AC 230V, SOHz
130W
270 (W) x 96 (H) x 342(D) mm
(10-5/8” x 3-25/32” x 13-15/32"}
{including feet, controls and terminals)
4.5kg (9 Ibs. 15 02z)
FM: 87.50 MHZ ~ 108.00 MHZ
AM: 522 kH2- 1611 kHz
FM: 1.84/75 0hms
AM: 20uV
40dB (1kHz)
AC 230V, SOHz
8W
270 (W)} « 96 {H) x 318(D) mm
(10-5/8” x 3-25/32” x 12-33/64")
{including feet, controls and terminals)
2.8kg (6 lbs. 3.02)
Below measurable limits
{+0.001% W. peak)
44,1 kHz
Semiconductor
AC 230V. 50Hz
Bw
270 (W) x 96 {H) x 315(D) mm
(10-5/8" x 3-25/32” x 12-13/32”)
{including feet, controls and terminals)
3.3kg (7 !bs. 5 02)
Horizontal 4-track 2-channet stereo cassette deck
1 hard permalloy recording/ playback head
1 double-gap ferrite erasing head
4.75 cmis
Dolby B and C NR, Dolby HX Pro
Normat. chrome and metal
AC 230V, S0Hz
13W
270 (W) x 96 (H) x 313 (D) mm
(10-5/8" x 3-25/32" x 12-21/64")
{including feet, controls and terminals)
3.8kg (8 !bs. 6 oz)
Infrared pulse
50
Two DC 1.5V R6P/AA batteries
57 (W) x 197 (H) x 27 (D) mm
(2-1/4" « 7-3/4" x 53/64")
130g (including batteries) (Approx. 4.6 oz)
