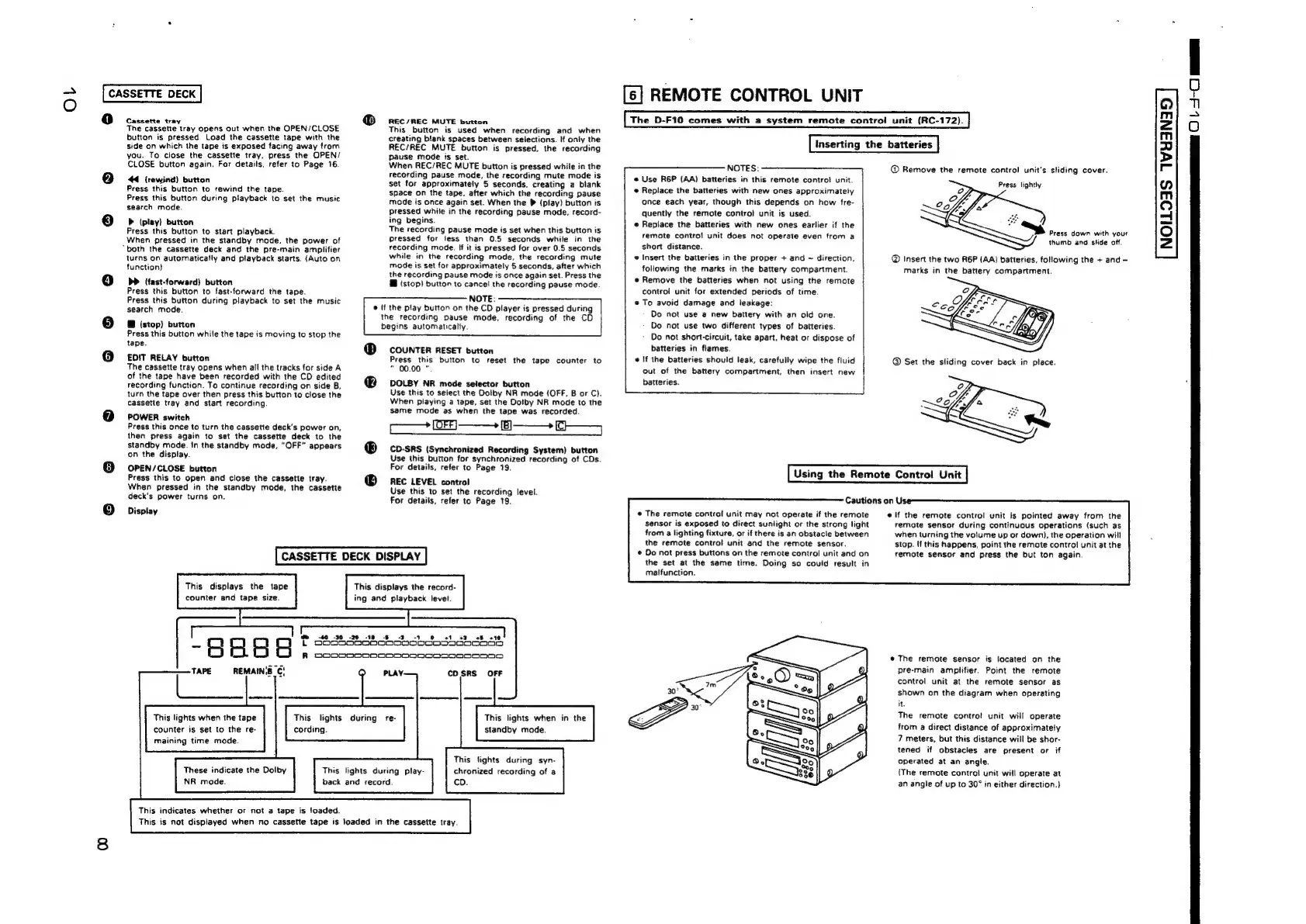

Denon UDR-F10 User Manual

=>
CASSETTE DECK
Cassette tray
The cassette tray opens out when the OPEN/CLOSE
button is pressed. Load the cassette tape with the
side on which the tape is exposed facing away from
you. To close the cassette tray, press the OPEN/
CLOSE button again. For details, refer to Page 16.
44 (rewind) button
Press this button to rewind the tape.
Press this button during playback to set the music
search mode.
> (plsy} button
Press this button to start playback.
When pressed in the standby mode, the power of
‘both the cassette deck and the pre-main amplifier
turns on autornaticatly and playback starts. (Auto on
function)
b> (fast-forward) button
Press this button to fast-forward the tape.
Press this button during playback to set the music
search mode.
@ (stop) button
Press this button while the tape is moving to stop the
tape.
EDIT RELAY button
The cassette tray opens when all the tracks for side A
of the tape have been recorded with the CD edited
recording function. To continue recording on side B,
turn the tape over then press this button to close the
cassette tray and start recording
POWER switch
Press this once to turn the cassette deck’s power on,
then press again to set the cassette deck to the
standby mode. In the standby mode, “OFF” appears
on the display.
OPEN/CLOSE button
Press this to open and close the cassette tray.
When pressed in the standby mode, the cassette
deck's power turns on.
REC/REC MUTE button
This button is used when recording and when
creating blank spaces between selections. If only the
REC/REC MUTE button is pressed, the recording
pause mode is set.
When REC/REC MUTE button is pressed while in the
recording pause mode, the recording mute mode is
set for approximately 5 seconds. creating a blank
space on the tape, after which the recording pause
mode is once again set. When the > (play) button is
pressed while in the recording pause mode, record-
ing begins.
The recording pause mode is set when this button is
pressed for less than 0.5 seconds while in the
recording mode. If it is pressed for over 0.5 seconds
while in the recording mode, the recording mute
mode is set for approximately 5 seconds, after which
the recording pause mode is once again set. Press the
@ (stop) button to cancel the recording pause mode.
NOTE:
© if the pfay button on the CD player is pressed during
the recording pause mode, recording of the CD
begins automatically.
COUNTER RESET button
Press this button to reset the tape counter to
“00.00 ”.
DOLBY NR mode selector button
Use this to select the Oolby NR mode {OFF, B or C).
When piaying a tape, set the Dolby NR mode to the
same mode as when the tape was recorded.
CD-SRS (Synchronized Recording System) button
Use this button for synchronized recording of CDs.
For details, refer to Page 19.
REC LEVEL control
Use this to set the recording level.
[6] REMOTE CONTROL UNIT
inserting the batteries
NOTES:
* Use R6P (AA) batteries in this remote contro! unit.
* Replace the batteries with new ones approximately
once each year, though this depends on how fre-
quently the remote control unit is used.
e Replace the batteries with new ones earlier if the
remote contro! unit does not operate even from a
short distance.
e Insert the batteries in the proper + and ~ direction,
following the marks in the battery compartment.
e Remove the batteries when not using the remote
control unit for extended periods of time.
© To avoid damage and leakage:
Do not use a new battery with an old one.
- Do not use two different types of batteries.
- Do not short-circuit, take apart, heat or dispose of
batteries in flames.
© If the batteries should leak, carefully wipe the fluid
out of the battery compartment, then insert new
batteries.
@ Remove the remote control unit's sliding cover.
@ Insert the two R6P (AA) batteries, following the + and -
marks in the battery compartment.
thumb and slide off.
G@)
m
=
mi
Ps]
>
-
wn
m
if)
a
)
2
For details, refer to Page 19. Cautions on U:
@ The remote control unit may not operate if the remote
sensor is exposed to direct sunlight or the strong light
from a lighting fixture, or if there is an obstacle between
the remote contro! unit and the remote sensor.
e Do not press buttons on the remote control unit and on
the set at the same time. Doing so could result in
malfunction.
©
Display
If
the
remote
contro!
unit
is
pointed
away
from
the
remote sensor during continuous operations (such as
when turning the volume up or down), the operation will
stop. If this happens, point the remote contro! unit at the
remote sensor and press the but ton again.
CASSETTE DECK DISPLAY
This displays the tape
counter and tape size.
This displays the record-
ing and playback level.
o> +40 -30 -20 -18 8-3-4 Oo 43 OB 10
a 5 ai a 5 tL cOoncooRoonRAAoORoaSsooAaD
R DOOOCoOoOoONMODOOcoSaESHoaDpoDATM
TAPE —-REMAIN.B _C!
e The remote sensor is located on the
pre-main amplifier. Point the remote
control unit at the remote sensor as
shown on the diagram when operating
it.
The remote contro! unit will operate
from a direct distance of approximately
7 meters, but this distance will be shor-
tened if obstacles are present or if
operated at an angle.
(The remote control unit will operate at
an angle of up to 30° in either direction.)
CO SRS OFF
This lights when the tape
counter is set to the re-
maining time mode.
This lights during re-
cording.
This lights when in the
standby mode.
This fights during syn-
chronized recording of a
co.
These indicate the Dolby
NR mode.
This lights during play-
back and record.
This indicates whether or not a tape is toaded.
This is not displayed when no cassette tape is loaded in the cassette tray.
oo
8
e
SS OI IT TENE EI MRCS () | —\-(] SSR
