English
4
USE SPLASH GUARD FOR EVERY OPERATION FOR WHICH IT CAN BE USED.
REPLACE DAMAGED CUTTING WHEEL BEFORE OPERATING.
DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
NEVER USE PAN HEATER OR OTHER HEATER SOURCE FOR HEATING WATER. DAMAGE TO THE TOOL,
FIRE OR PERSONAL INJURY COULD RESULT.
THINK! YOU CAN PREVENT ACCIDENTS.
ON CUTTING WHEEL
COVER
CAUTION: PROPERLY SECURE COVER WITH BOTH SCREWS BEFORE USE.
ON CAR
T
WARNING: TO REDUCE THE RISK OF INJURY, ALWAYS VERIFY THE CUTTING WHEEL IS ADJUSTED TO
THE CORRECT HEIGHT AND LOCATION IN THE CENTER OF THE CART GROOVE BEFORE OPERATING SAW.
WARNING: For your own safety, read the
instruction manual before operating the wet tile
saw.
Failure to heed these warnings may result in
personal injury and serious damage to the saw.
When servicing this tool, use only identical replace-
ment parts. Have damaged cords replaced by an
authorized service center.

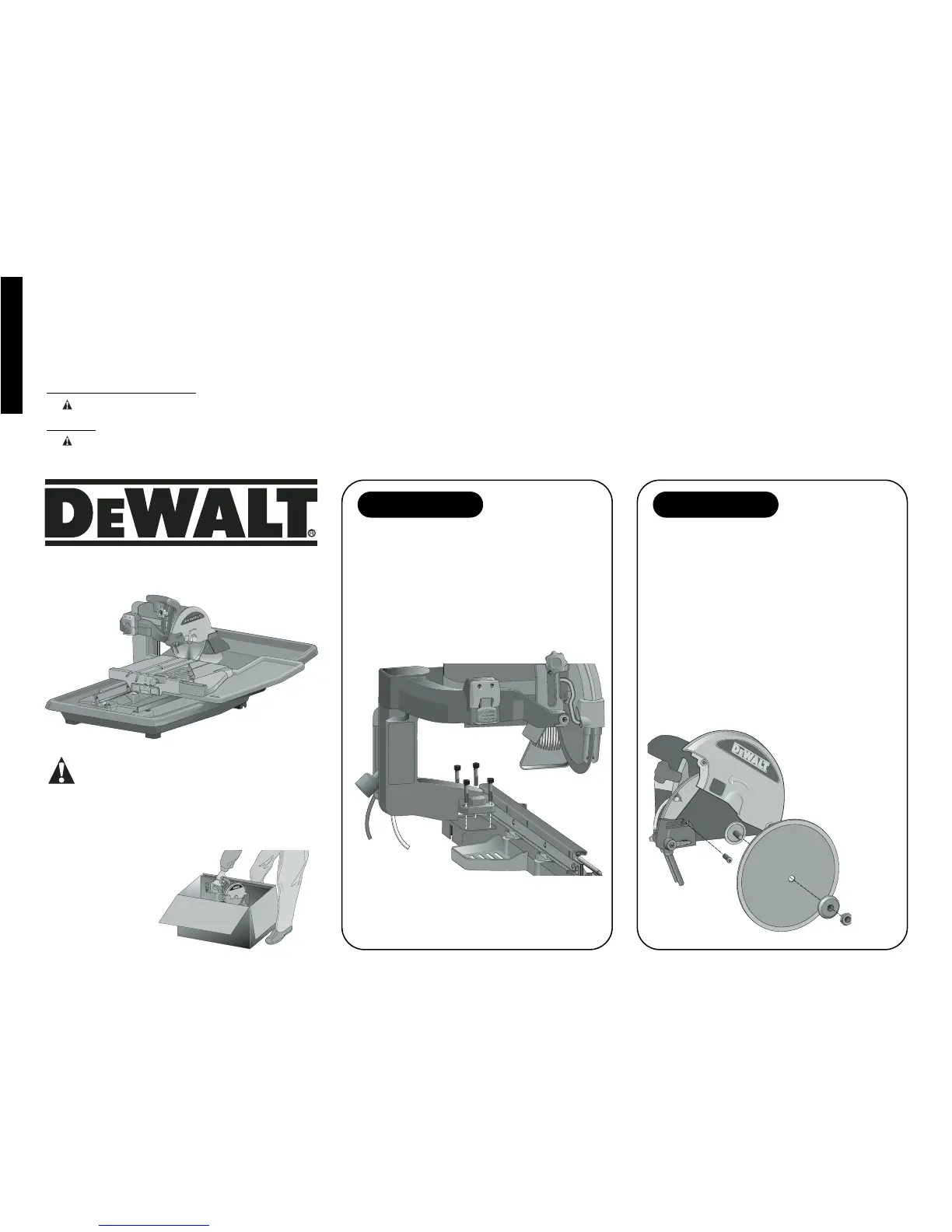

1. Install the motor arm onto frame assembly.
Using the wrench supplied, install and
tighten the two screws closest to the rail
first. Install and tighten the other two
screws.
Step 1
2. Attach the cutting wheel.
a. Using the smaller Allen wrench supplied,
loosen (do not remove) the screw on the
side of the cutting wheel cover. Pull the rub-
ber side flap back and lift the cover toward
the rear of the saw.
b. Press spindle lock button. Remove the cut-
ting wheel nut with hex wrench provided.
Remove outer flange.
c. Install the cutting wheel with the rotational
arrow facing the same way as on the rota-
tional arrow on the cutting wheel cover.
Press the spindle lock button while tighten-
ing the cutting wheel nut.
d. Replace cover and tighten screw.
Step 2
For further details, refer to
To Attach Cutting Wheel
in the
Instruction Manual.
Quick Start Guide
D24000 Wet Tile Saw
FIG. 1
The motor arm
assembly comes
assembled. Open
the box and lift the
assembly out, as
shown in Figure 1.
