DeWalt D25333 Instruction Manual

ENGLISH
24

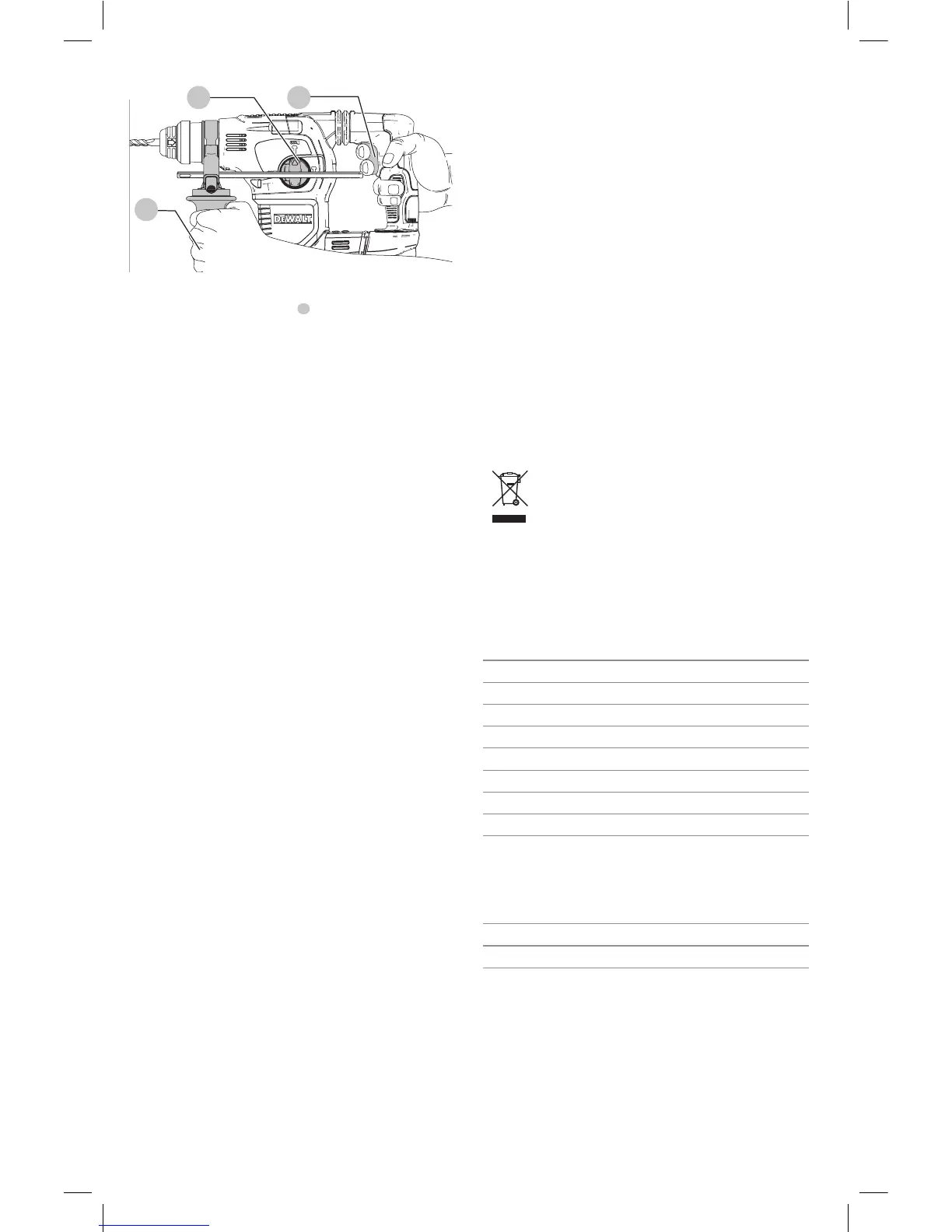

Fig. H
5
3 1
4. Place the bit/chisel on the desiredlocation.
5. Depress the trigger switch
1
.
6. To stop the rotary hammer, release theswitch.
Recommendations for Tool Operation
• Large (5/16" to 1/2" [7.9 mm to 12.7 mm]) holes in steel
can be made easier if a pilot hole (5/32" to 3/16" [4 mm
to 4.8 mm]) is drilledfirst.
• When drilling, always apply pressure in a straight line
with the bit, but do not push hard enough to stall the
motor or deflect thebit. A smooth even flow of material
indicates the proper drillingrate.
• If drilling thin material or material that is prone to
splinter, use a wood “back-up” block to prevent damage
to theworkpiece.

WARNING:
• Do not use this tool to mix or pump easily
combustible or explosive fluids (benzine,
alcohol,etc.).
• Do not mix or stir inflammable liquids
labelledaccordingly.
MAINTENANCE

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Your D
e
WALT power tool has been designed to operate
over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper
tool care and regularcleaning.
Lubrication
Your power tool requires no additionallubrication.
Cleaning

WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the
risk of eye injury, always wear approved eye protection
when performingthis.

WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into aliquid.
Accessories

WARNING: Since accessories, other than those
offered by
DeWALT
, have not been tested with this
product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only
DeWALT
recommended accessories should be used with
thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
servicecenter.
Repairs
The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement) should
be performed by a
DeWALT
factory service center
or a
DeWALT
authorized service center. Always use
identical replacementparts.
Protecting the Environment
Separate collection. Products and batteries
marked with this symbol must not be disposed
of with normal householdwaste.
Products and batteries contain materials that can be
recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to localprovisions.
Specifications
D25333
B3
Voltage 120 V
Frequency 50-60 Hz
Power 950 W
No Load Speed 0–1150/min (rpm)
Impacts per Minute 0–5200 ipm
Impact Energy 3.5 J
Drilling Range 1/2" (13 mm) - 1-1/8" (28 mm)
Drill Capacity Max. 1-3/16" (30 mm)
Concrete 1-1/8" (28 mm)
Steel 1/2" (13 mm)
Wood 1-3/16" (30 mm)
Vibration Measurement 6.9 m/s
2
Weight 3.7 kg (8.1 lbs)

DeWalt D25333 Specifications

General

Carrying case	Yes
Chuck type	SDS Plus
Product color	Black, Yellow
Impact rate	5200 bpm
Idle speed (max)	1150 RPM
Sound power level	104 dB
Impact energy (max)	3.5 J
Sound pressure level	93 dB
Sound level uncertainty	3 dB
Vibration level (chiseling)	7.8 m/s²
Drilling diameter in steel (max)	13 mm
Vibration level (metal drilling)	2.5 m/s²
Vibration level (hammer drilling)	6.9 m/s²
Drilling diameter in concrete (max)	30 mm
Vibration level uncertainty (chiseling)	1.5 m/s²
Input power	950 W
Power source	AC

Weight and Dimensions

Depth	355 mm
Width	95 mm
Height	250 mm
Weight	3700 g
