Belt Hook (Fig.A, C)

WARNING: Remove nails from magazine before making
any adjustments or servicing this tool. Failure to do so may
result in seriousinjury.

WARNING: Disconnect battery pack from tool before
making any adjustments, changing accessories,
servicing, or moving the tool. Such preventative safety
measures reduce the risk of starting the toolaccidentally.

CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
The DeWALT cordless nailers include an integrated belt
hook
10
and can be attached to either side of the tool to
accommodate left‑ or right‑handedusers.
If the hook is not desired at all, it can be removed from thetool.
To remove belt hook
1. Remove battery pack fromtool.
2. To switch the tool from right‑ to left‑hand usage simply
remove the screw
19
from the opposite side of the tool and
reassemble on the otherside.
3. Replace batterypack.
Inserting and Removing the Battery Pack
from the Tool (Fig.B)
NOTE: Make sure your battery pack
14
is fullycharged.
To Install the Battery Pack into the
Tool Handle
1. Align the battery pack
14
with the rails inside the tool’s
handle (Fig.B).
2. Slide it into the handle until the battery pack is firmly seated
in the tool and ensure that you hear the lock snap intoplace.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.

WARNING: Use only DeWALT battery packs andchargers.
These DCN650 (15GA) finish nailers are professional powertools.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Description (Fig.A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Trigger
2
Trigger lock‑off
3
Depth adjustment wheel
4
Headlights/Low battery/Stall indicator
5
Jam clearing latch
6
Contact trip
7
Magazine
8
Pusher
9
Bump/sequential selector switch
10
Belt hook
11
No‑mar pad
12
No‑mar pad storage
13
Stall release lever
14
Battery
15
Nail depth indicator
16
Battery release button
Intended Use
Your DCN650 (15GA) finish nailer has been designed for
professional nailing applications for woodenworkpieces.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
Date Code Position
The date code, which also includes the year of manufacture, is
printed into thehousing.
Example:
2020 XX XX
Year of Manufacture

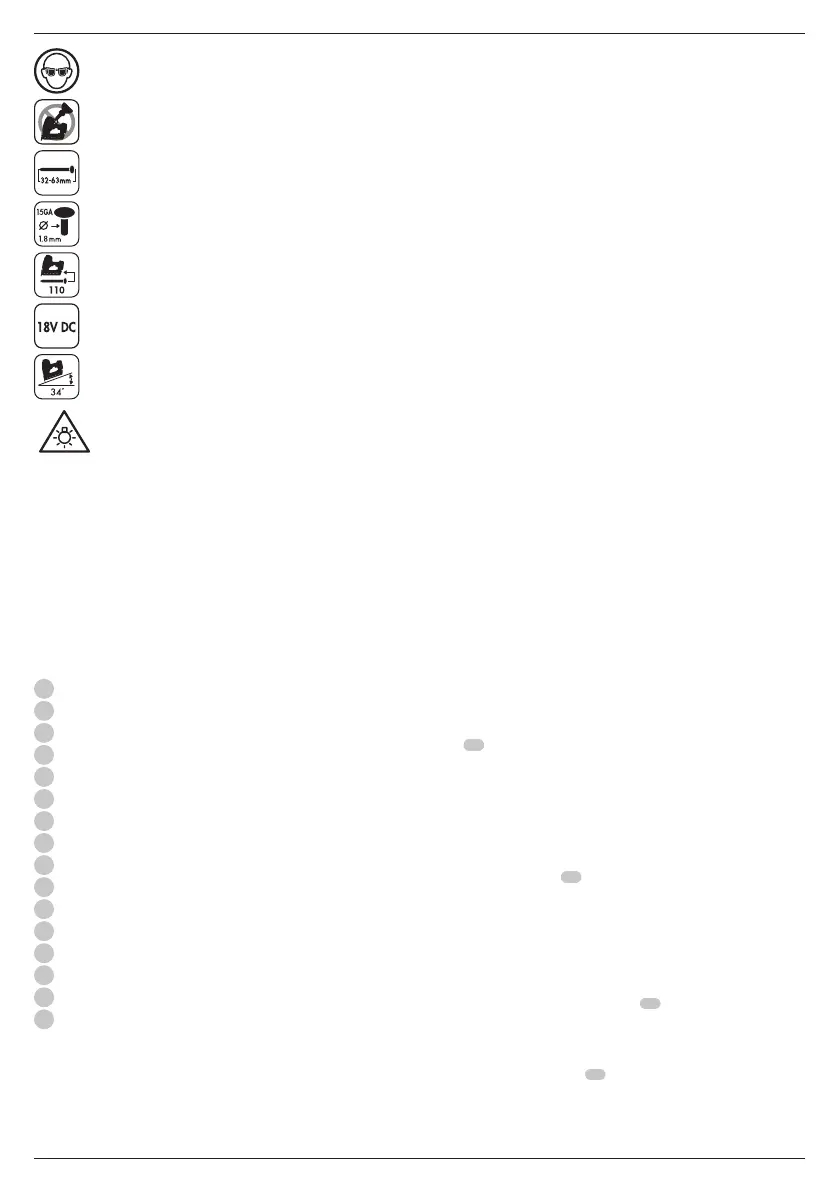

Wear eyeprotection.
No additionallubrication.
Length ofnails.
Nailthickness.
Loadingcapacity.
Toolvoltage.
Magazine angle: 34˚.
Visible radiation. Do not stare intolight.
