ENGLISH
9
Intended Use
Your cable stapler is intended ONLY for use in driving
staples into wood.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
Use
ONLY
DEWALT
staples that meet applicable building
coderequirements.
This tool is intended for use by construction professionals.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
TOOL SPECIFICATIONS
Actuation mode Sequential
Voltage 20V
Height 7.5" (190.5 mm)
Width 2.875" (73 mm)
Length 12" (304.8 mm)
Weight 4.75 lbs (2.15 kg) without battery
5.6 lbs (2.54 kg) with DCB203 battery
Magazine angle 0˚ straight
Loading capacity Up to 35 staples
Dry fire lock-out Yes
LED Yes
STAPLE SPECIFICATIONS
Staple type DRS18100 Insulated cable staple
Staple lengths 1" (25.3 mm)
Staple crown 3/4" (19.7 mm)
Staple insulator 0.85" (21.6 mm) long x 0.16" (4 mm) wide
Dry Fire Lock Out
Your stapler is equipped with a dry fire lockout which
prevents the tool from actuating when the magazine
is empty. After the last staple is fired the tool ceases to
operate. Refer to Loading the Tool to reload a stick of
collatedstaples.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery
pack before loading staples, making any
adjustments or removing/installing attachments
or accessories. An accidental actuation can
causeinjury.

WARNING: Remove staples from magazine before
making any adjustments or servicing this tool. Failure
to do so may result in serious injury.

CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping or
falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be
easily knocked over.

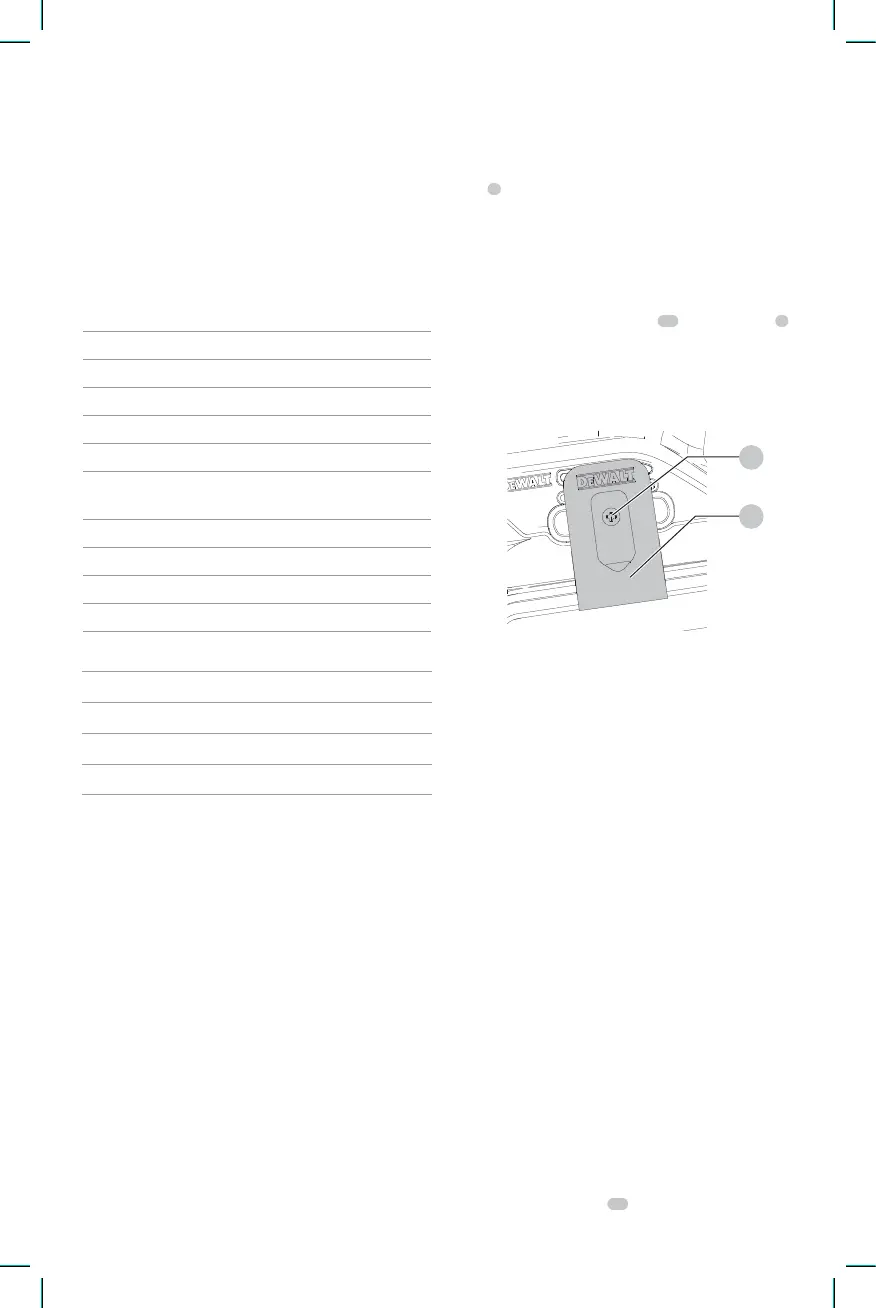

Utility Hook (Fig. D)
The
DEWALT
cordless stapler includes an integrated utility
hook
2
and can be installed on either side of the tool to
accommodate left- or right-handedusers.
If the hook is not desired at all, it can be removed from
thetool.
To Install the Utility Hook
1. Remove staples and battery pack fromtool.
2. Using only the provided screw
11
, the utility hook
2
can be be installed on either side of the tool. To
switch the tool from right- or left-hand usage simply
remove the screw and install the utility hook on the
oppositeside.
3. Load staples and replace battery pack .
Fig. D
2
11
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery
pack before loading staples, making any
adjustments or removing/installing attachments
or accessories. An accidental actuation can
causeinjury.

WARNING: Read the section titled Stapler Safety
Warnings at the beginning of this manual. Always
wear eye and ear protection when operating this
tool. Keep the stapler pointed away from yourself and
others. For safe operation, complete the following
procedures and checks before each use of thestapler.

WARNING: To reduce the risk of personal injury,
disconnect battery pack from tool before performing
maintenance, clearing a jammed staple, leaving work
area, moving tool to another location or handing the
tool to anotherperson.

WARNING: NEVER use a tool that has the wire
indicator restrained in the upposition.

WARNING: NEVER use a tool that has
damagedparts.
Installing and Removing the Battery Pack
(Fig. E)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
10
into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
