it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button
9
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.

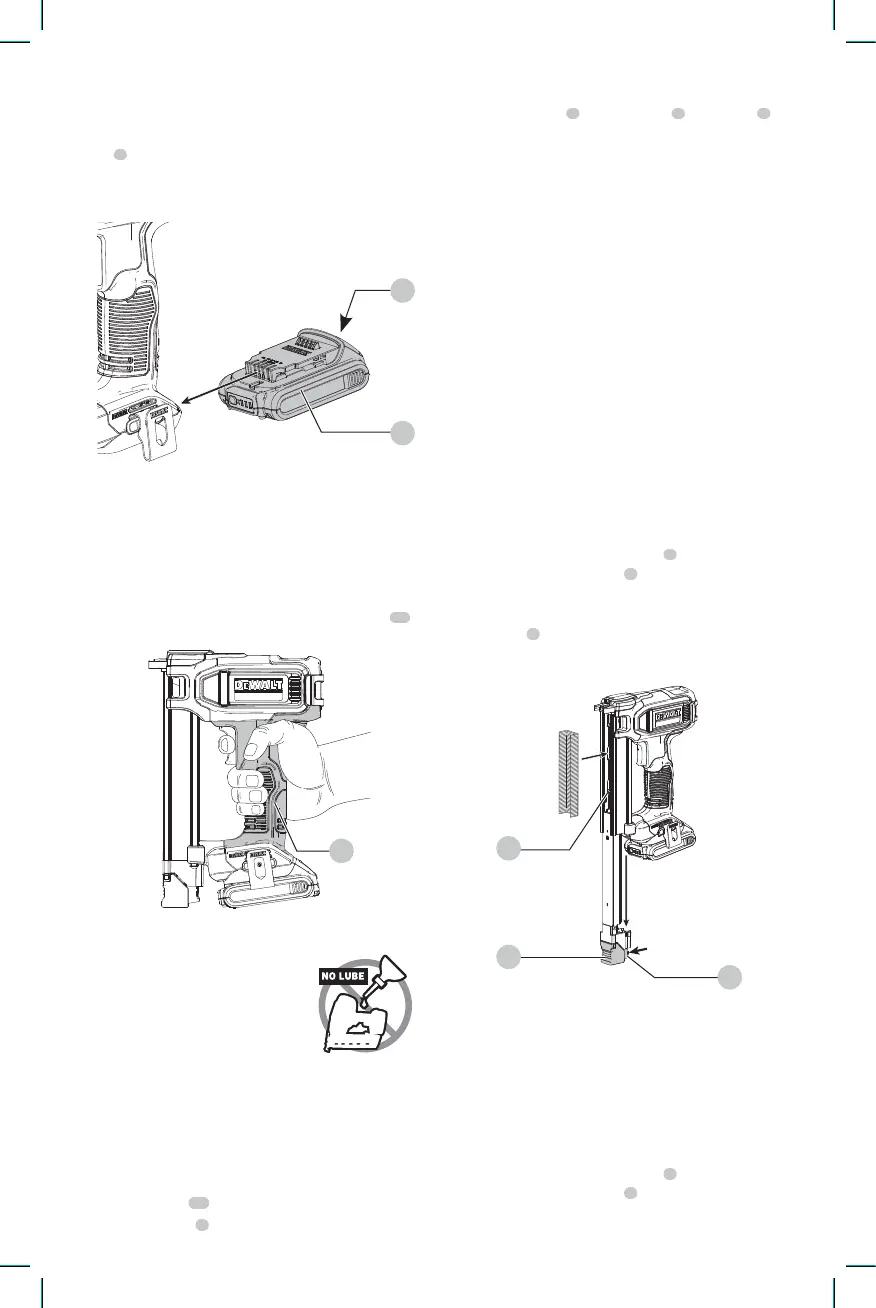

Fig. E
9
10
Proper Hand Position (Fig. F)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the handle
12
as shown in Fig. F.
Fig. F
12
Preparing the Tool (Fig. A)
NOTICE: NEVER spray or in
any other way apply lubricants
or cleaning solvents inside the
tool. This can seriously affect
the life and performance of
thetool.
NOTE: The battery pack is not fully charged out of the
carton. Follow instructions outlined (refer to Charging
ABattery).
1. Read the Stapler Safety Warnings section of
thismanual.
2. Wear eye and earprotection.
3. Remove battery
10
fromtool.
4. Ensure magazine
6
is empty of allfastners.
5. Check for smooth and proper operation of cable
alignment guide
3
, wire indicator
4
and pusher
8
assemblies. Do not use tool if either assembly is not
functioning properly. NEVER use a tool that has the wire
indicator restrained in the actuatedposition.
6. Keep tool pointed away from yourself andothers.
NOTICE: Do not store tool with battery pack installed.
To prevent damage to the pack and to ensure best
battery life, store battery packs out of the tool or
charger in a cool, drylocation.
Loading the Tool (Fig. G)
WARNING: Keep the tool pointed away from yourself
andothers.
WARNING: Never load staples with the wire indicator
or triggeractivated.
WARNING: Always remove battery pack before
loading or unloadingstaples.
CAUTION: Keep fingers clear of pusher latch track to
preventinjury.
WARNING: Use
staples only in this tool.
Other staples can damage the wire insulation. Which
may result in electric shock, fire and/or seriousinjury.
1. Depress magazine release button
7
and slide the
magazine core and pusher
8
out until it reaches the
end of itstravel.
2. Drop staple strips into the loading slot of the
magazine
6
, making sure the staple heads align
correctly with the slot opening. (Refer to Staple
Specifications to determine compatible size.)
Fig. G
7
8
6
3. Keeping fingers clear of the track, close the magazine by
releasing the pusher latch. Carefully allow the latch to
slide forward and engage the staplestrip.
NOTE: Do not slam magazine core assembly into
magazine or you could damagestaples.
Unloading the Tool
WARNING: Always remove battery pack before
loading or unloadingstaples.
1. Depress magazine release button
7
and slide the
magazine core and pusher
8
out until it reaches the
end of itstravel.
