Digikeijs DR 4088 series User Manual

DR4088CS / GND / OPTO 2021-08-11
P 8
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
4.1 Feedback modules DR4088CS; 2-wire track
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz

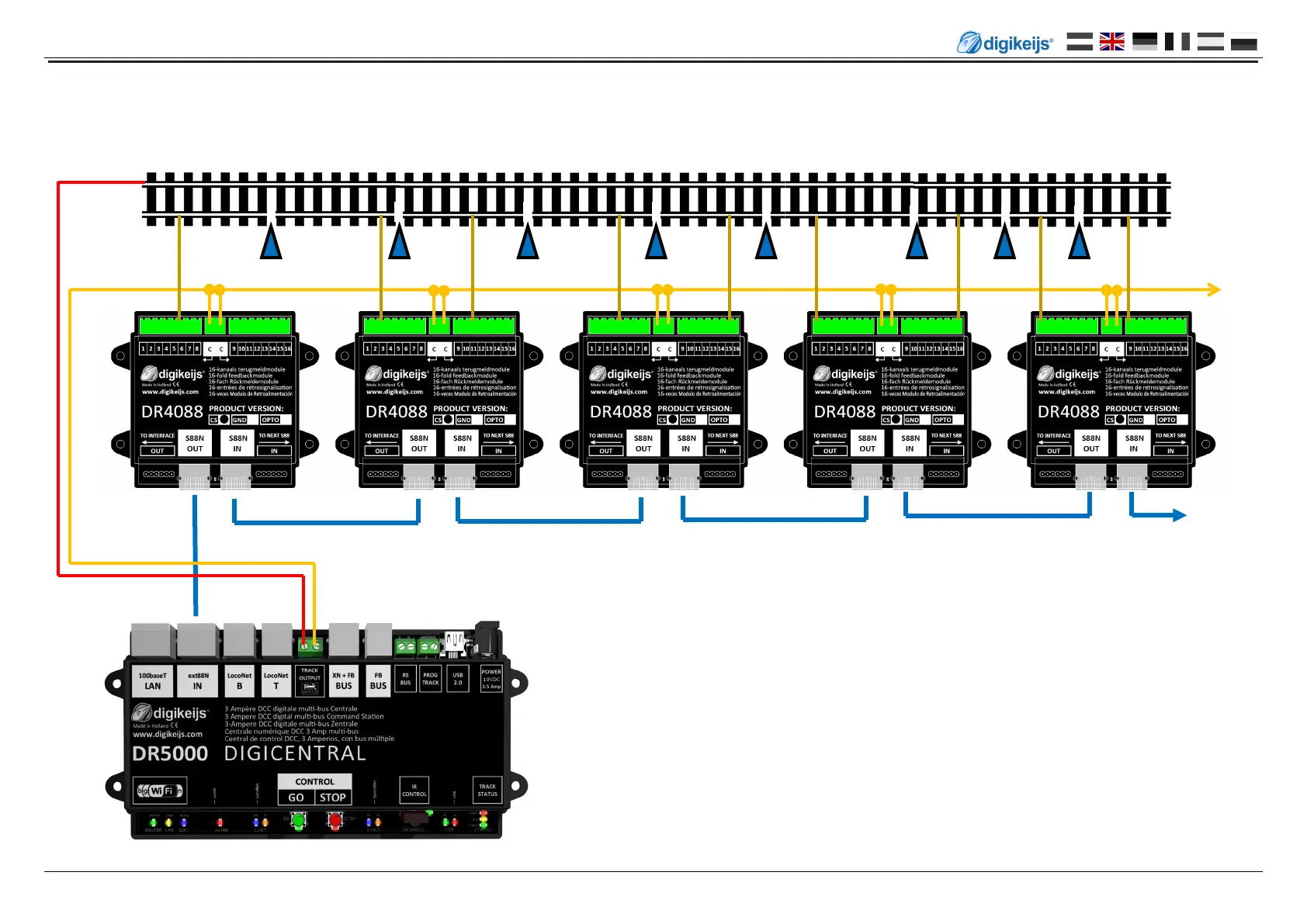

DR5000 in conjuncon with S88N® feedback modules
The ext88N connector of the DR5000 is a compable S88N® bus.
In this example the feedback modules DR4088CS (current sensors) are used. These feed-
back modules are connected to the DR5000 and to each other with normal RJ45 cables. A
maximum of 16 S88N® modules with 16 inputs each can be connected to the central unit. A
total of 256 feedback modules (S88N®/ext88N ) can be managed by the DR5000.
