DigiTech RP70 User Manual

13
Getting Started
Making Connections
There are several different connection options available with the RP70. Before connecting the
RP70, make sure that the power to your amplifier and the RP70 is turned off. There is no power
switch on the RP70. To turn the RP70 on or off, connect or disconnect the included PS200R
power supply from the Power Input jack.

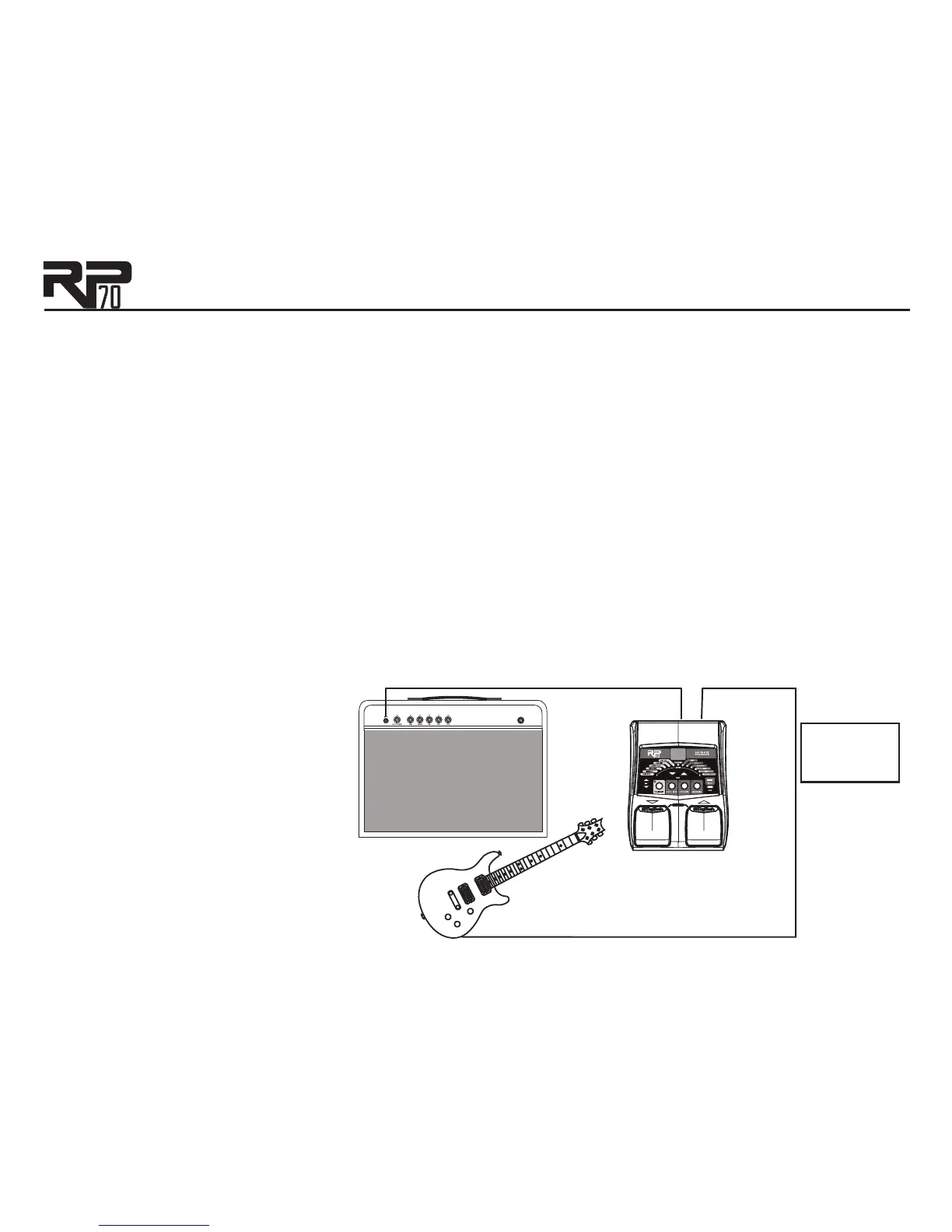

Mono Operation - Amplifier
Connect your guitar to the Input of the RP70. Connect a single mono instrument cable from the
Left (Mono) output of the RP70 to the instrument input or effect return on your amplifier. Set
the Amp/Mixer switch to Amp.
Guitar Amp Input/
Effect Return
Left (Mono)
Output
Input
Amp/Mixer
switch set to
Amp.
NOTE: When using a
guitar amp, it may be best to
connect the Output of the
RP70 to the effect return of
the amplifier.
