HT25 - BACKHOE
CONTROL DESCRIPTIONS
54
HT25 - BACKHOE
CONTROL DESCRIPTIONS
CONTROL DESCRIPTIONS

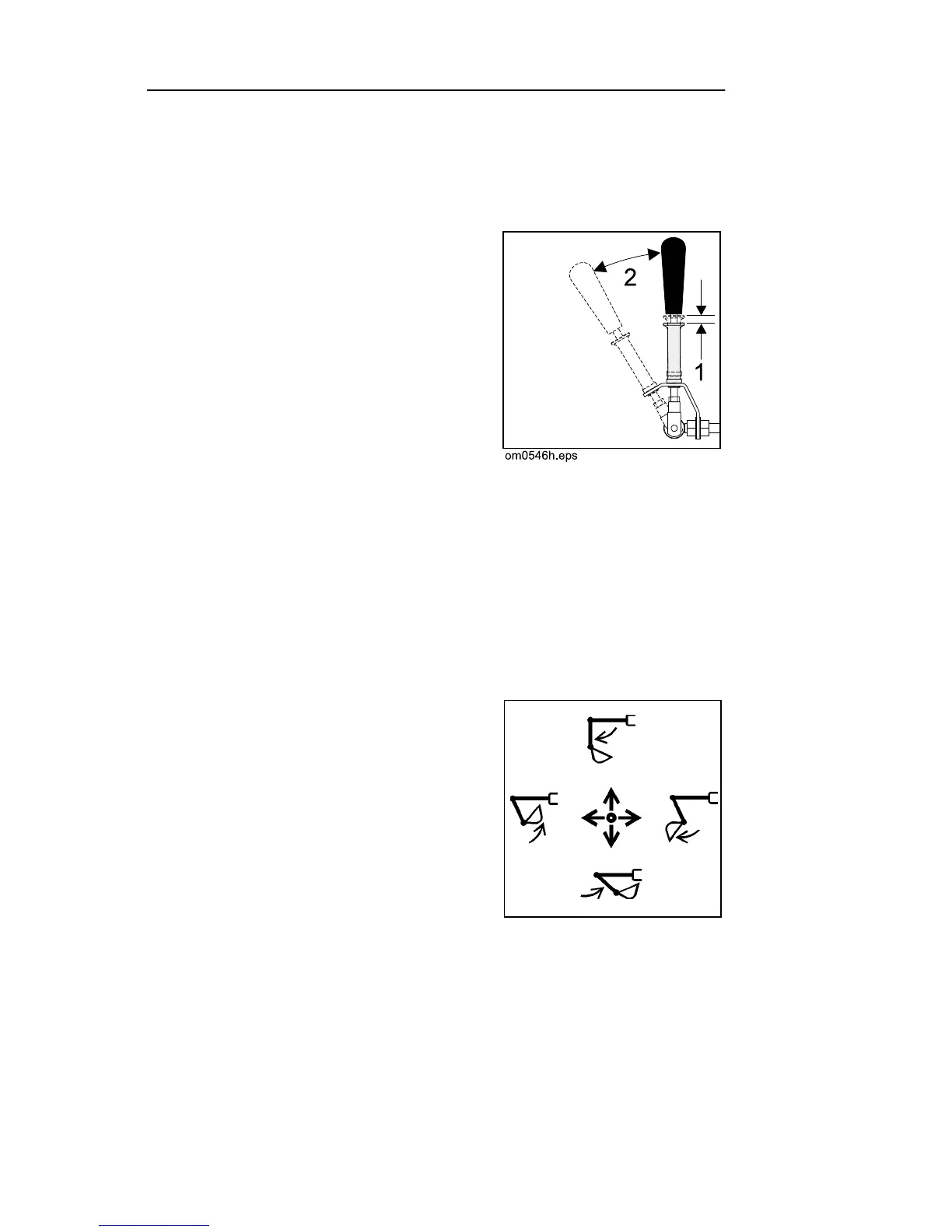

Position Adjustment Sleeves
These sleeves allow movement of
boom/swing control and bucket/
dipper control between stowed
position and operating position.
• Lift sleeve (1) and pull control
(2) to operating position.
Release sleeve before
operating.
• Lift sleeve and push control to
stowed position. Release sleeve.
NOTICE:
Do not operate backhoe with control in the stowed
(upright) position. Component failure could occur. Return control
to stowed position when finished operating.
Bucket/Dipper Control
This control opens or closes bucket
and moves dipper in or out.
• Move right to open bucket
• Move left to close bucket.
• Pull to move dipper in.
• Push to move dipper out.
Control can perform more than one
action at a time. Using them together, operator can “feather,” or
combine backhoe operations.
ic0043c.eps
CONTROL DESCRIPTIONS
Position Adjustment Sleeves
These sleeves allow movement of
boom/swing control and bucket/
dipper control between stowed
position and operating position.
• Lift sleeve (1) and pull control
(2) to operating position.
Release sleeve before
operating.
• Lift sleeve and push control to
stowed position. Release sleeve.
NOTICE:
Do not operate backhoe with control in the stowed
(upright) position. Component failure could occur. Return control
to stowed position when finished operating.
Bucket/Dipper Control
This control opens or closes bucket
and moves dipper in or out.
• Move right to open bucket
• Move left to close bucket.
• Pull to move dipper in.
• Push to move dipper out.
Control can perform more than one
action at a time. Using them together, operator can “feather,” or
combine backhoe operations.
ic0043c.eps
