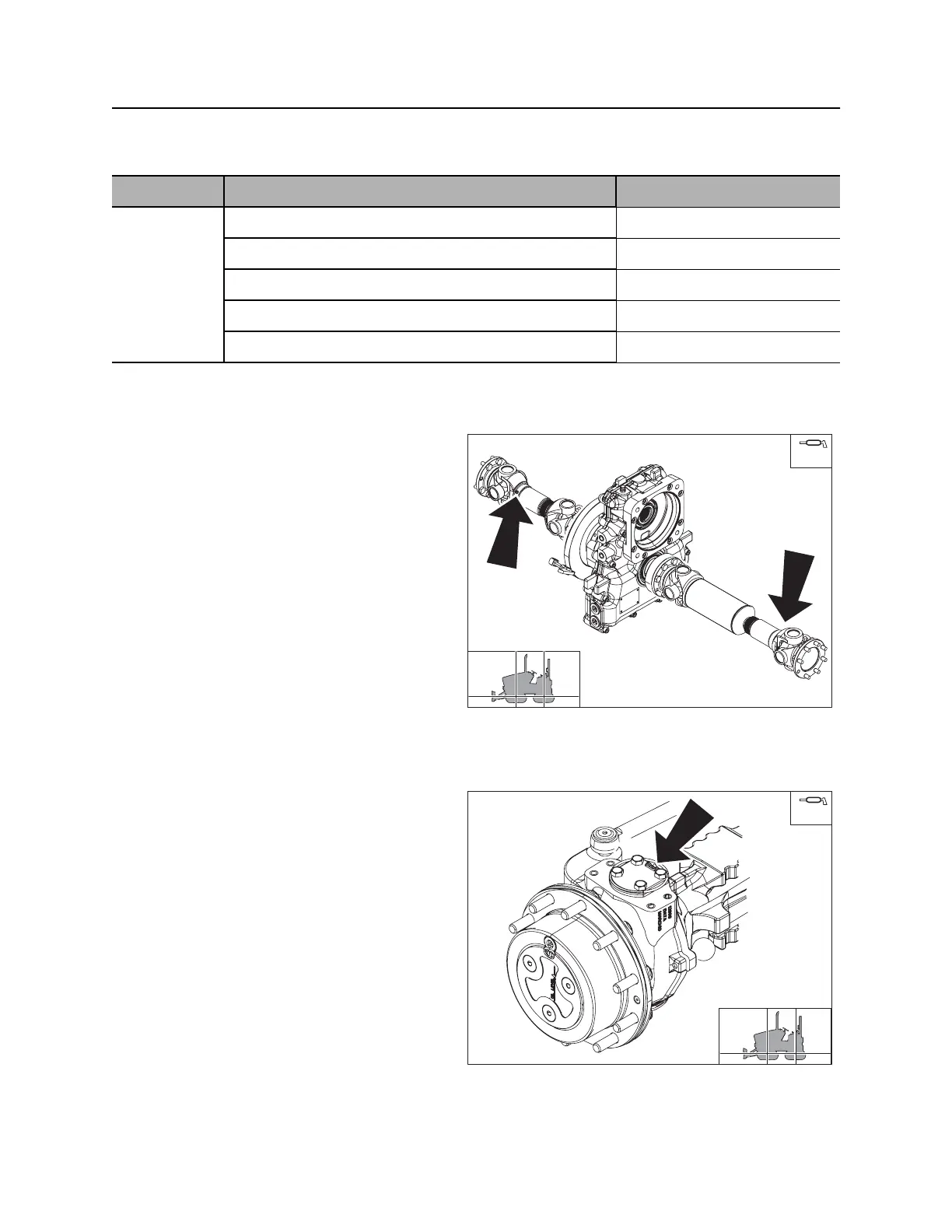

Service - 166
RT80Q Operator’s Manual
250 Hour
250 Hour
Tractor
Lube Driveshaft U-joints
Lube driveshaft U-joints every 250 hours with 3-4
shots of EPG.
Lube Axle Spindle Pins
Lube axle spindle pins every 250 hours with 3-4
shots of EPG.
Location
Task
Notes
TRACTOR
Lube driveshaft U-joints
EPG
Lube axle spindle pins
EPG
Check ground drive gearbox oil
MPL
Check differential oil
MPL
Lube planetary wheel ends
MPL
t33om037w
.eps
t33om038w
.eps
166
168
