HB2500
16
Operating instructions for users
GB
2 Information on installation
30mm
200mm
30mm
710
400
187
280
193
123
267.5
16
65.5
33
Ø55
207,5
609
87
141.5
Ø20

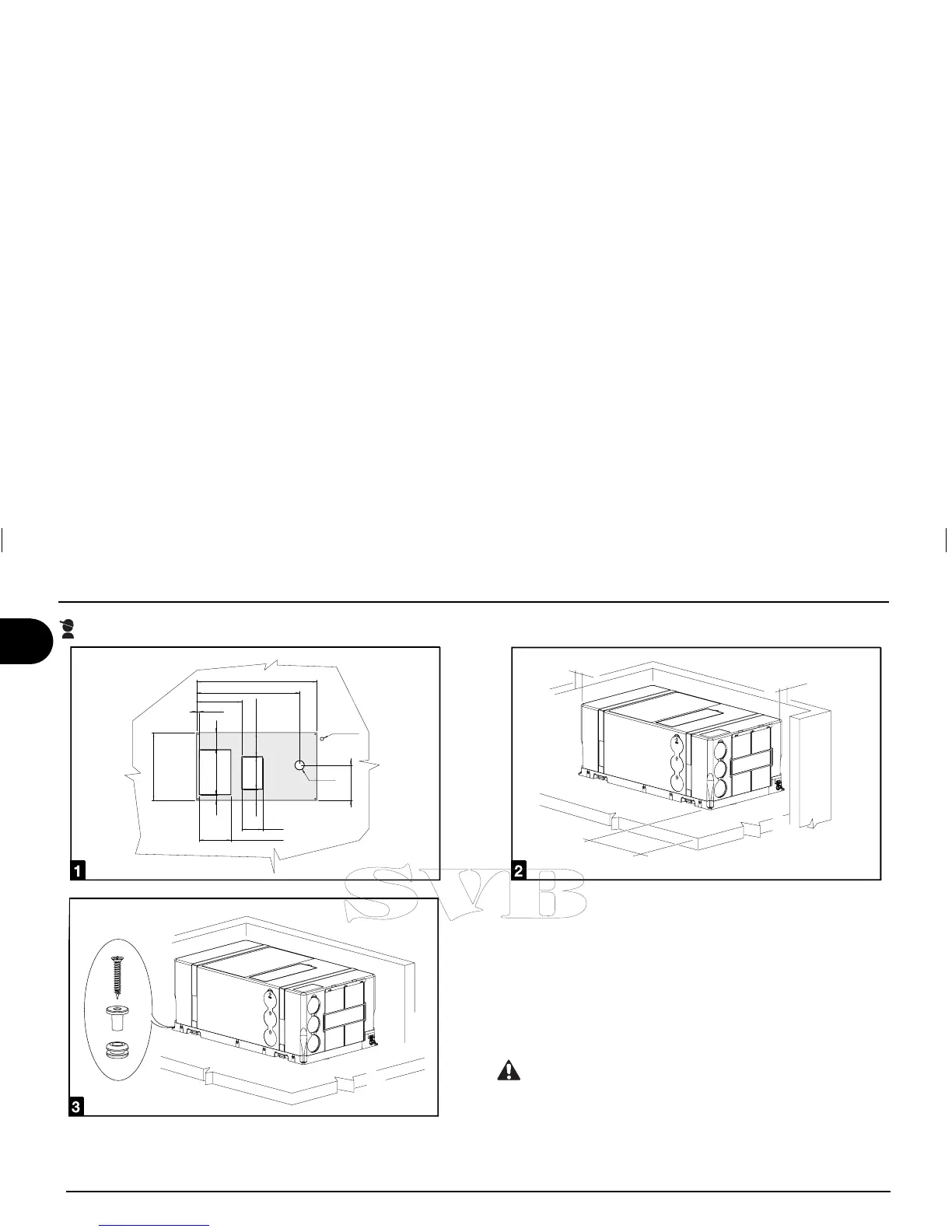

2.3. Preparing the opening and fi xing
To install the machine it is necessary to create openings in the fl oor.
The openings in the fl oor of the vehicle must be accessible and, there-
fore, must not be covered by parts of the chassis frame behind or the
like.
These openings must not be reached by splashes from the wheels; fi t
a splash guard or something similar if necessary.
Take care to leave a gap of at least 30mm between the machine and
the adjacent walls. Secure the machine to the fl oor using the kit pro-
vided.
The machine must preferably be installed level. Maximum an-
gle 10° to prevent condensation coming out.
Before making the holes, always check there are no cables, gas
pipes, parts of the chassis frame or the like underneath or hid-
den. Seal the machined surfaces of the openings in the fl oor with
water-repellent products.
