Specifications MasterFlush 7600 Series Toilet
4.2.4 Discharge Options
Floor Flange Option
Floor flange
3 in. (76 mm) ID;
0.25– 0.4 in. (6–11 mm) thick
Remote Option
(not mounted on the
flange directly above
the waste tank)
Sanitation hose size
1.5 in. (38 mm) or 1 in. (25 mm) ID
Horizontal hose run
40  (12.2 m) maximum**
**Check for an adequate discharge flow if the installation nears this distance.
Refer to ANSI 1192 and Z240 RV Series standards, where applicable, for
additional RV toilet installation guidelines. Specifications are subject to
change without notice.

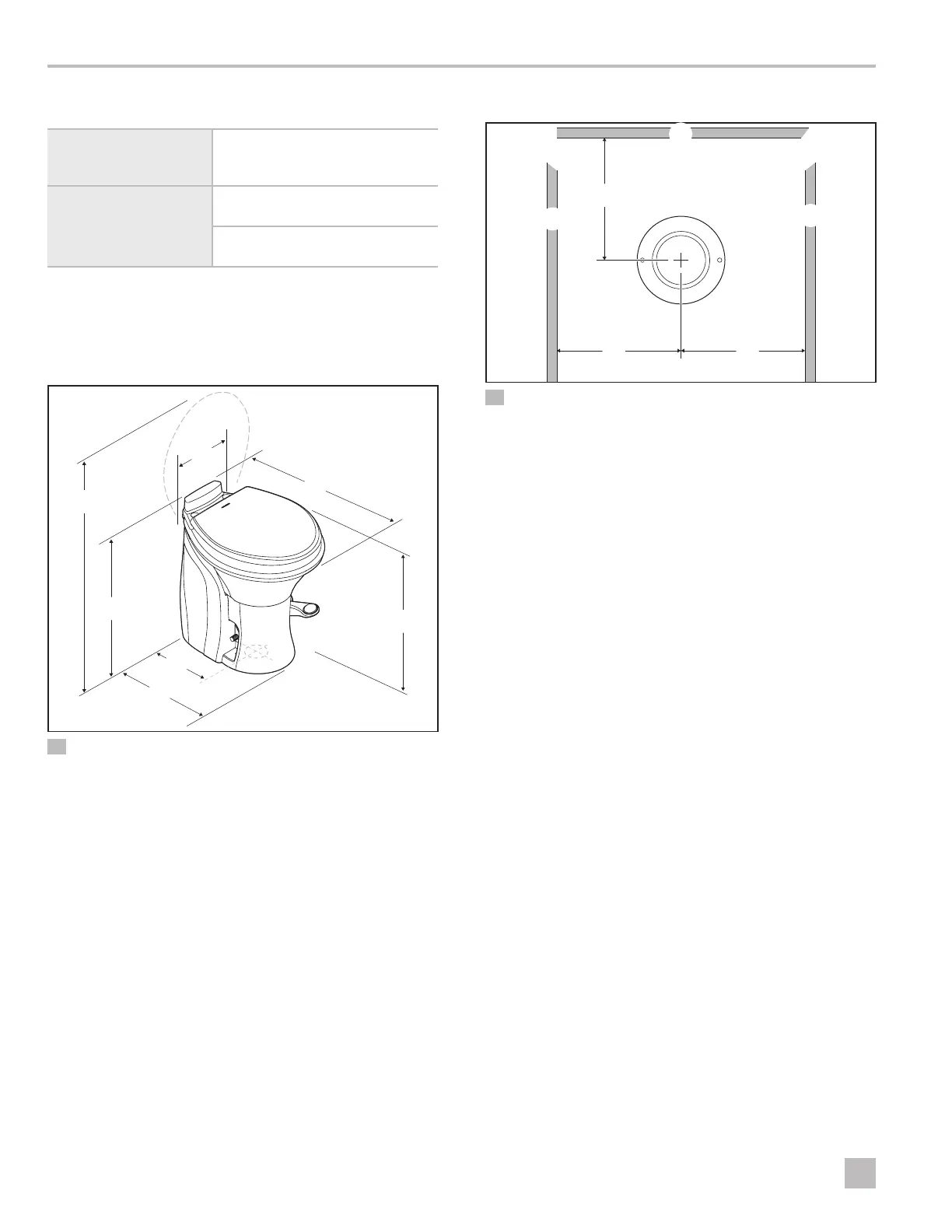

4.3 Toilet Dimensions
e
q
u
y
w
t
r
3 Toilet Dimensions and Clearances
q
15 in. (381 mm)
t
14.8 in. (375 mm)
back to front of base
w
33.9 in. (860 mm)
seat lid up
y
18.4 in. (467 mm)
seat height
e
20 in. (508 mm)
u
19 in. (483 mm)
r
10 in. (254 mm)
rough-in
4.4 Rough-In Dimensions
e
r
w
q
t
y
u
4 Rough-In Dimensions and Clearances
q
Back wall
t
Right wall
w
Le wall
y
11 in. (279 mm)
e
10 in. (254 mm)
u
11 in. (279 mm)
r
Floor flange
