15

Ventilation system

Installing the refrigerator in enclosure

NOTE: DO NOT install the appliance directly on carpeting. Carpeting must be removed or

protected by a metal or wood panel beneath the appliance, which extends at least the full

width and depth of the appliance.

6.3

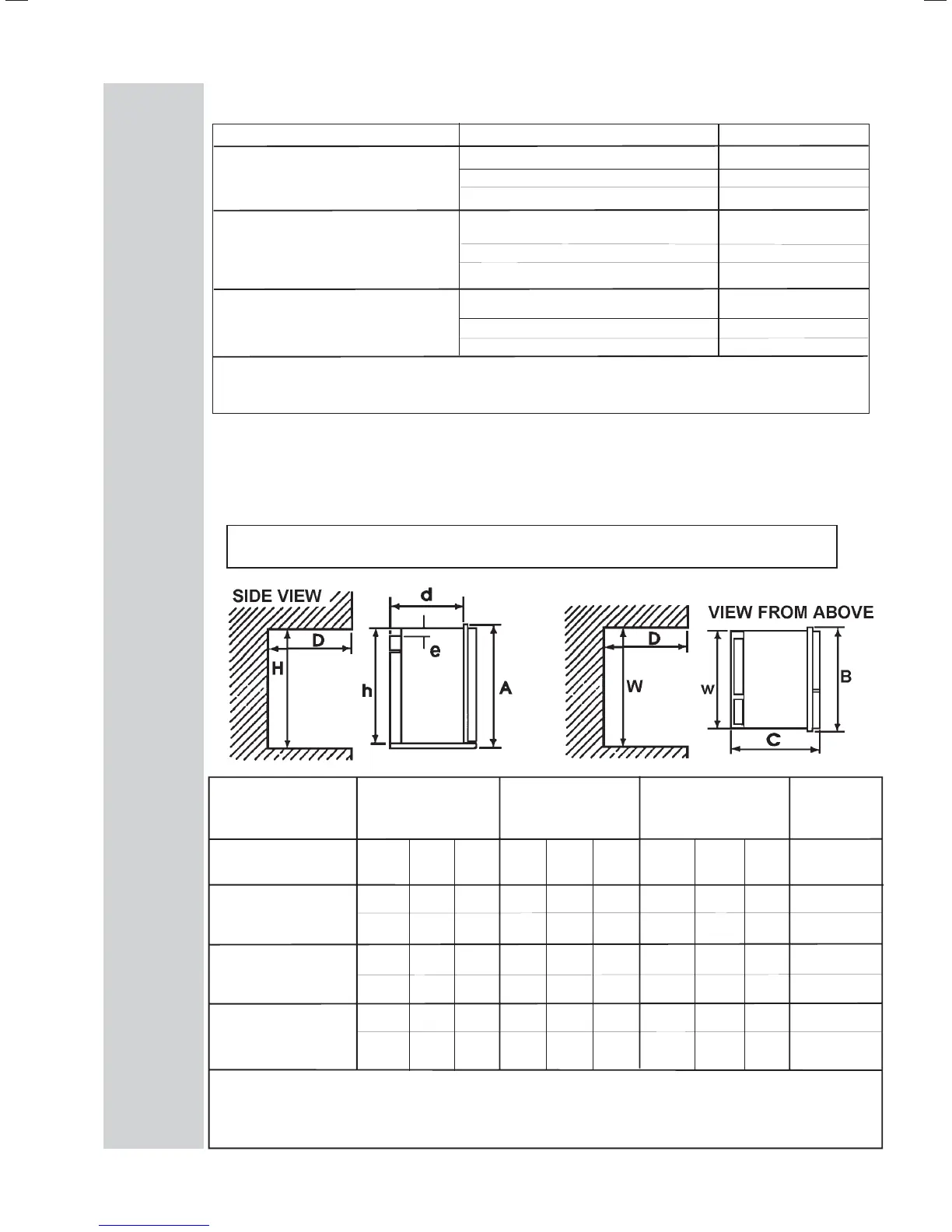

The dimensions shown in FIG.3 will give you adequate space for service and proper

installation.

RM 2191 Overall Installation Recessed Distance between

RM 2193 Dimensions Dimensions Dimensions Top of condenser +

Top of refrigerator

Vent Height Width Depth Height Width Depth Height Width Depth

Type A B C h w d H W e

Dual Metal (inches) 21-9/16 19-5/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 20-7/8 1/4

Side Vents (mm) 548 491 545 524 445 505 530 451 519 6

Metal & Plastic (Inches) 21-9/16 19-5/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 20-7/8 1/4

Side Vents (MM) 548 491 545 524 445 505 530 451 519 6

Dual Plastic (Inches) 21-9/16 19-5/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 *20-7/8 1/4

Side Vents (MM) 548 491 545 524 445 505 530 451 *519 6

* Depth D Dimensions Requirement with Plastic Vent System is Dependant on Vehicle Side Wall Thickness. If the Vehicle Side Wall

Thickness is less than1,5 inches ( 38mm ), the Recessed Depth Dimensions will be required to be Increased Proportionally to the Vehicle Wall

Thicknes.

VENT KIT OPTIONS COMPONENTS PART NO.

DUAL METAL SIDE * RM 123 Upper Metal Side Vent 3100451.024

VENTS * RM 183 Lower Metal Side Vent 8030211.332

** Power Ventilator Optional 3108705.751

UPPER METAL SIDE VENT * RM 123 Upper Metal Side Vent 3100451.024

LOWER PLASTIC SIDE VENT * Lower Plastic Side Vent 3107560.009

** Power Ventilator, Optional 3108705.751

DUAL PLASTIC SIDE * Upper Plastic Side Vent 3107560.041

VENTS * Lower Plastic Side Vent 3107560.009

** Power Ventilator Optional 3108705.751

* Vent System Requires One Each.

** Alternative instructions forwarded with ventilator kit. Used in conjunction with

upper and lower side vents at minimum vent heights for optimum performance.

6.2.3

FIG. 3
