Door locking
Changing the decor panel
The door panel can easily be mounted.
Dimensions of the panels in mm:
Height 501 mm
Width 453 mm
Thickness 3,3 mm
A. Remove the door.
B. Remove the lower trim molding.
(NOTE: Trim molding is not installed on new units in cartons)
C. Fit the new panel in place and slide it up as far as possible.
D. Fit the trim molding back in place.
Changing the doorhang
If required, the door hinges can be moved to the opposite side. Reverse the door
hang in the following way:
A. Unscrew the upper hinge pin, taking care not to lose the set of washers
and bushings.
B. Lift the door from the lower hinge pin. If decorative door panel is to be installed,
see 5.7.
C. Unscrew the pin and mount it on the opposite side hinge.
D. Unscrew the travel catch and mount it on the opposite side.
E. Replace door on lower hinge pin. Replace upper hinge pin and bushings removed
in Step A.
F. Check that the door closes properly and seals all around.

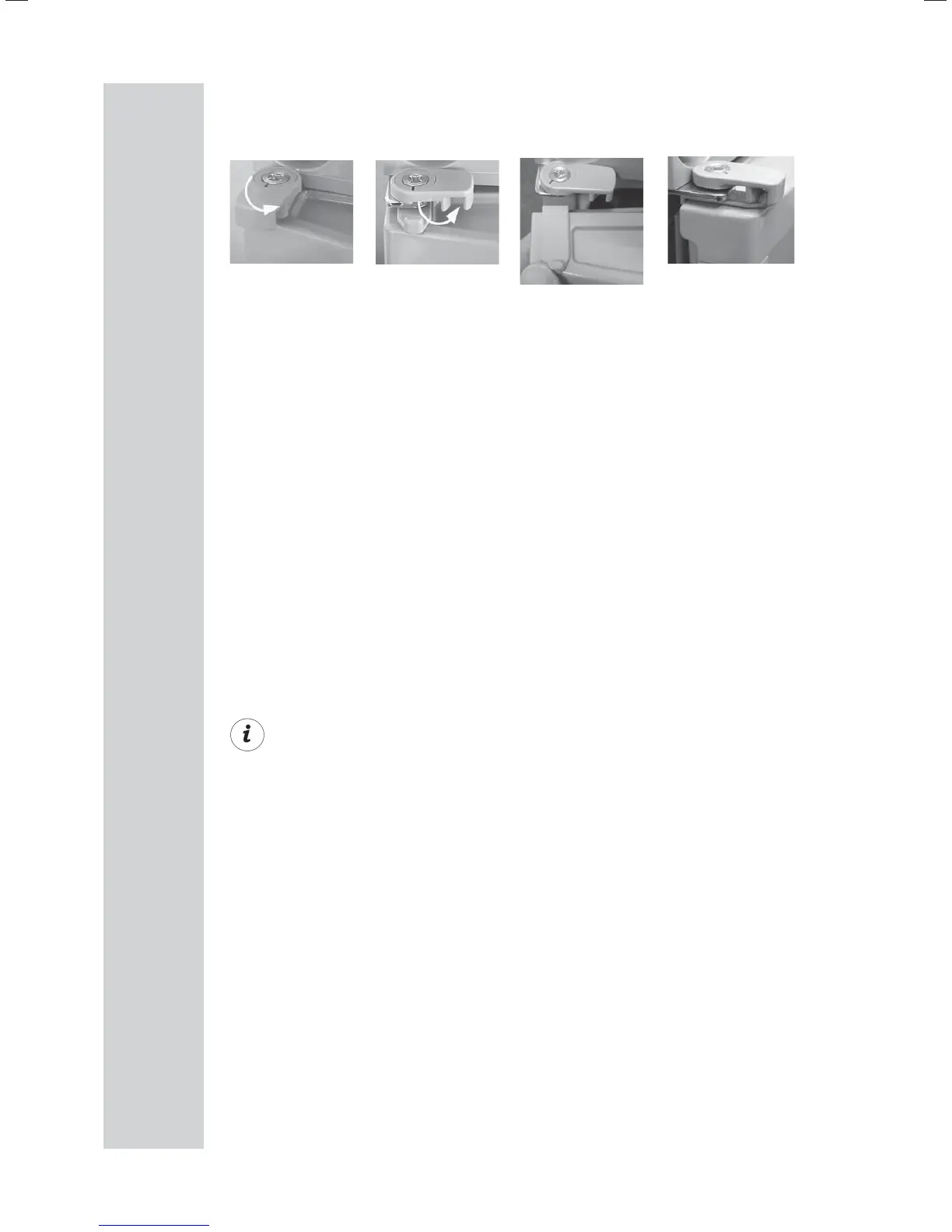

5.6
5.7
park position
open
closed
5.8
It is not always possible to change the door when the refrigerator is installed.
