Installation
The refrigerator must be installed in a substantial enclosure and must be level.
When installing the refrigerator in the
enclosure, all areas within the recess in
which the refrigerator is installed must be
sealed from the living space.
Make sure that there is a complete seal
between the front frame of the refrigerator
and the top, sides and bottom of the enclo
sure. A length of sealing strip is applied to
the rear surface of the front frame for this
purpose (FIG.4).
The sealing should provide a complete iso
lation of the appliance's combustion
system from the vehicle interior.
Note: Be careful not to damage the sealing strip when refrigerator is put in place.
Securing the refrigerator in enclosure
The refrigerator is installed in the enclosure with eight screws. Six screws are in the
front frame and two are in the plate on the rear. See FIG. 5.
NOTE: Push refrigerator into enclo
sure until front frame is tight against
the cabinet. First, secure the frame
to cabinet with six screws. Second,
install the two screws to the floor at
the rear of the refrigerator.
Failure to follow the sequence in
securing the refrigerator in the
enclosure can cause leakage bet
ween the frame and cabinet. Any
space between the counter, storage
area or ceiling and top of the refri
gerator should be blocked. The heat
produced at the rear of the refrigerator will become trapped in this space, making the
top of the refrigerator hot and reducing the efficiency.
The dimensions shown in FIG. 3 will give you adequate space for service and proper
installation.
6.4

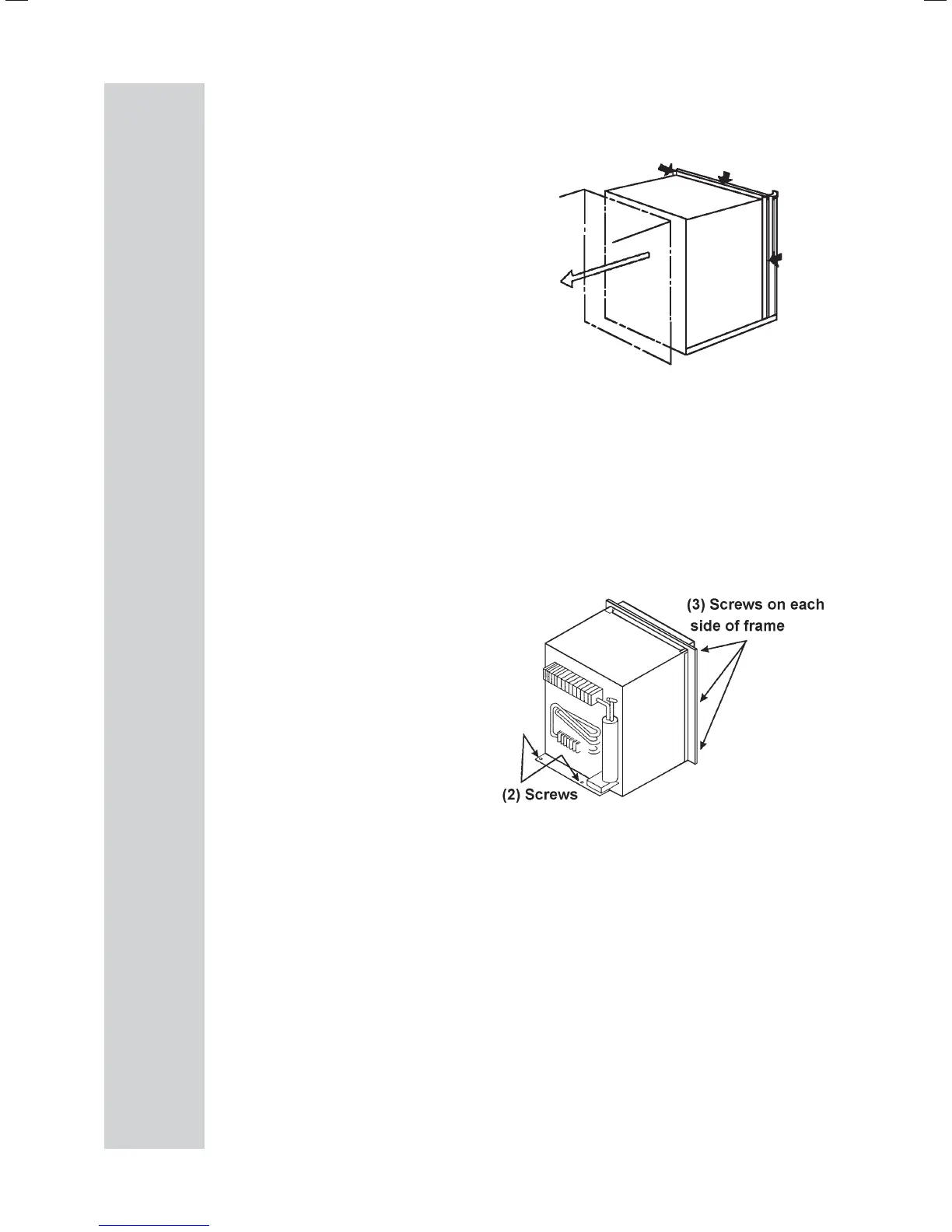

FIG. 4
