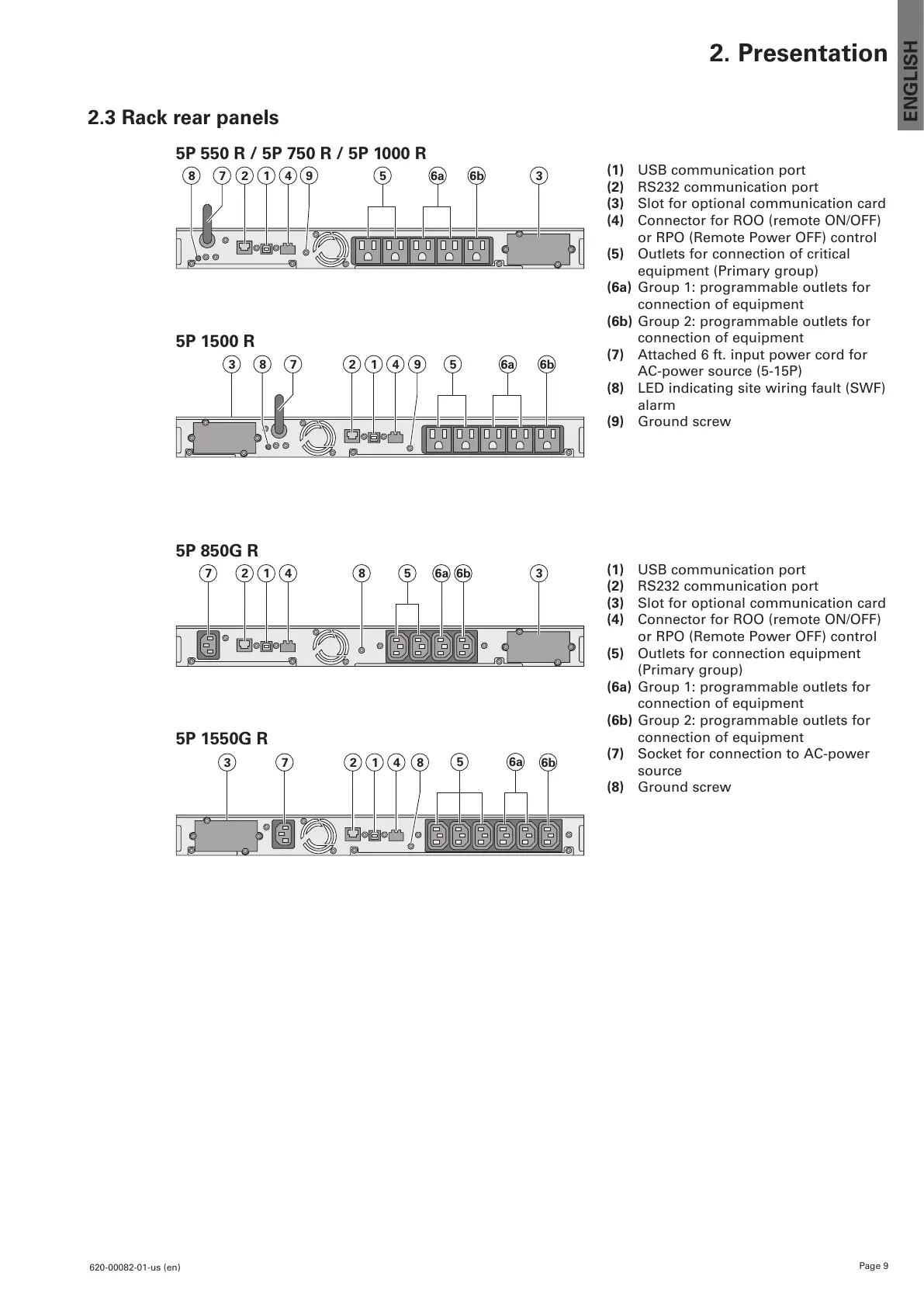

2. Presentation
2.3 Rack rear panels
5P 550 R / 5P 750 R / 5P 1000 R
2 1 48 36b5
6a
7
9
5P 1500 R
2 1 48 73 9 6b5
6a
5P 850G R
2 1 4 87 36a 6b5
5P 1550G R
6a
2 1 473 6b
5
8
(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power OFF) control
(5) Outlets for connection of critical
equipment (Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Attached 6 ft. input power cord for
AC-power source (5-15P)
(8) LED indicating site wiring fault (SWF)
alarm
(9) Ground screw
(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power OFF) control
(5) Outlets for connection equipment
(Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Socket for connection to AC-power
source
(8) Ground screw
