CBC-8000 capacitor bank control description
6 CBC-8000 capacitor bank control installation and operation instructions MN916001EN—October 2018 Eaton.com

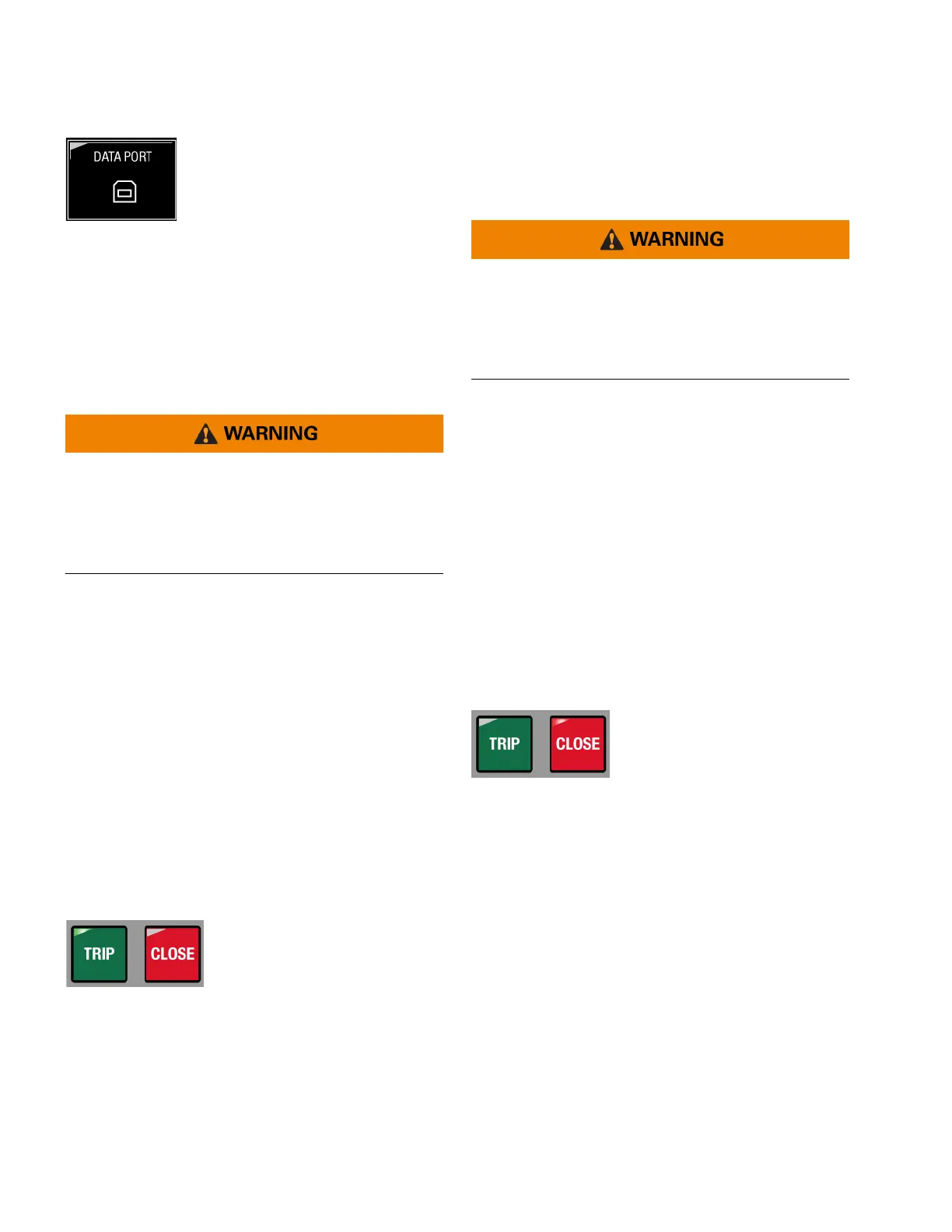

Figure 8. Data Port
Operating Panel
The Operating panel contains the following buttons:
TRIP Button
The TRIP button, shown in Figure 9, allows an operator to
manually trip the capacitor bank from the front panel. When
the TRIP button is pressed, a control request is sent to the
control. If the control is in Manual mode, the control opens
the capacitor bank.
Explosion hazard.
Move a safe distance away from the capacitor bank after
pressing the TRIP button on the control.
Failure to do so may result in severe personal injury or
death. C1103.0
The TRIP LED can have the following meanings:
• Illuminated – When the TRIP button is pressed, the LED
illuminates to visually indicate that the button has been
pressed.
• Flashing
• Slowly – The delay timer is running for a pending trip
operation or a trip operation has occurred and the
reclose delay timer is running. When the LED is flashing
slowly, the LED is lit for 1 second and off for 1 second.
• Fast – The trip relay is active and the control timer is
running. When the LED is flashing fast, the LED is lit for
1/2 second and off for 1/2 second.
• Off – The TRIP LED is turned off when the capacitor bank
operation timer ends.
Figure 9. TRIP button.
CLOSE button
The CLOSE button, shown in Figure 10, allows an operator to
manually close the capacitor bank from the front panel.
When the CLOSE button is pressed, a control request is sent
to the control. If the control is in Manual mode, the control
closes the capacitor bank.
Explosion hazard.
Move a safe distance away from the capacitor bank after
pressing the CLOSE button on the control.
Failure to do so may result in severe personal injury or
death. C1104.0
The CLOSE LED can have the following meanings:
• Illuminated – When the CLOSE button is pressed, the
LED illuminates to visually indicate that the button has
been pressed.
•Flashing
• Slowly – The delay timer is running for a pending close
operation. When the LED is flashing slowly, the LED is
lit for 1 second and off for 1 second.
• Fast – The close relay is active and the control timer is
running.
When the LED is flashing fast, the LED is lit for
1/2 second and off for 1/2 second.
• Off – The CLOSE LED is turned off when the capacitor
bank operation timer ends.
Figure 10. CLOSE button.
One-touch function buttons
These buttons set the operational mode of the control and
they allow quick access to certain menu items.
Illustrated in Figure 11, the one-touch function buttons are
arranged in three rows as follows:
• Row 1 – Mode of Operation: Manual, Remote, Auto
• Row 2 – Neutral Lockout Reset, Tracking, Alarms
• Row 3 – Reserved for future use
