SPEAR™ Single-Phase Recloser System
INSTALLATION AND OPERATION INSTRUCTIONS MN280048EN June 2016

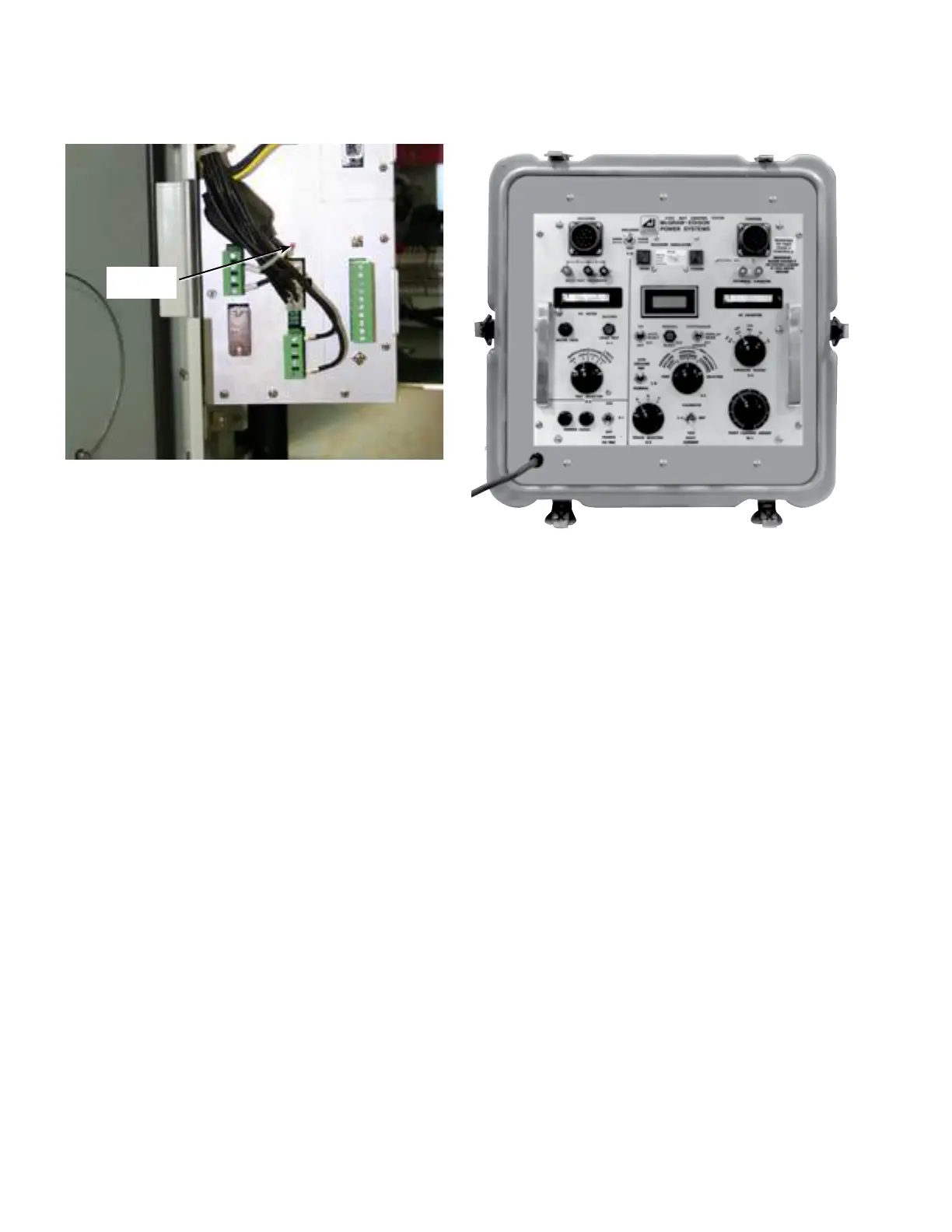

Figure 39.
Pushbutton
switch
Location of pushbutton switch on the SPEAR
single-phase recloser control side-panel for power-up
with battery power only
Testing with type MET tester
The Type MET electronic recloser control tester (Figure 40)
is used for testing the following functions of the SPEAR
single-phase recloser control:

Overcurrent Timing

Reclose Time

Operating Sequence

Reset Time

Minimum Trip Current

High Current Trip and Lockout
The MET Tester is completely self-contained, capable of
performing all required checks and tests from a simple
verification of operation to a complete verification of all
operating parameters.
Refer to Service Information S280-76-1 Type MET Electronic
Recloser Control Tester Operating Instructions for proper
setup and use of the MET Tester.
Figure 40.
Type MET electronic recloser control tester
ote:N Setting the S2 switch of the MET Tester to the
“CALIBRATE” position for more than three seconds
[with the MET Tester in the OPEN state] will
cause the Interrupter Malfunction diagnostic to
become active. The control CLOSED and LOCKOUT
LEDs will alternately blink with the OPEN LED. If
the Interrupter Malfunction alarm is configured,
the ALARM LED will also blink. The Interrupter
Malfunction diagnostic state is kept in non-volatile
memory, so it is not cleared when the control
is rebooted. In order to reset the Interrupter
Malfunction diagnostic, go to Reset Targets under
the Counters menu and press the ENTER button two
times to reset targets.
ote:N When using the MET electronic recloser control
tester, cable part number KSPRC-145-15 must be
used with the SPEAR Single-Phase Recloser Control
to ensure proper testing and control operation.
