NOTE: The common battery configuration can only be used in a
system described above.

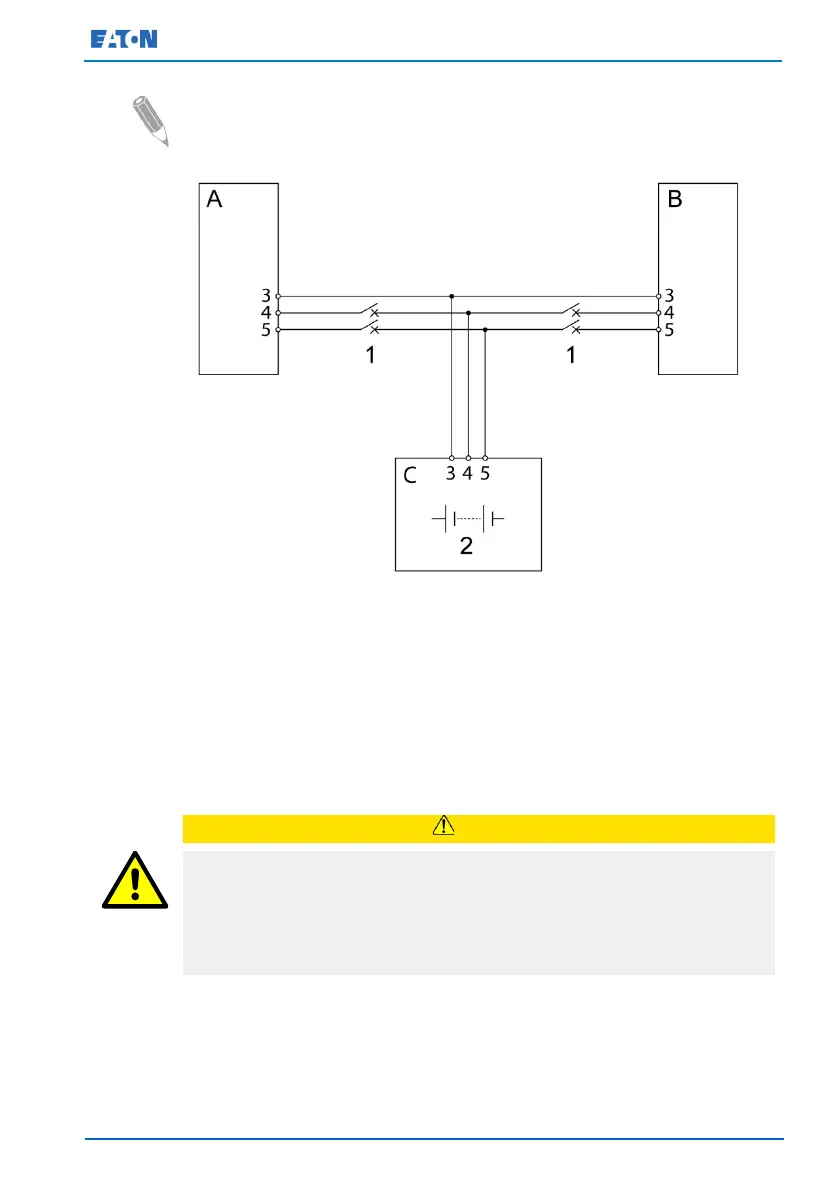

Figure 18. Common battery configuration in a redundant 1+1 system
A
UPS 1
1
Battery breaker
B
UPS 2
2
Battery
C
External battery cabinet
3
PE
4
+
5
-
5.5 Installing interface connections
CAUTION
The interface cabling must be anchored to the UPS door (onto a
surface that is not covered when the door is closed). Make sure that
the removal of the UPM fan pan is possible without removal of the
interface cabling.
