UPS System Installation
4-6 Eaton 93E UPS (300/400 kVA, 380/400/415V) Installation and Operation Manual
4.6 Installing Interface Connections
4.6.1 Installing Building Alarm Connections
To install wiring:
1. Verify the UPS system is turned off and all power sources are removed. See Chapter 6, “UPS Operating
Instructions,“ for shutdown instructions.
2. To locate the appropriate terminals and review the wiring and termination requirements, see
paragraph 3.2.3, Table 4-1, Figure 4-2and Figure 4-3.

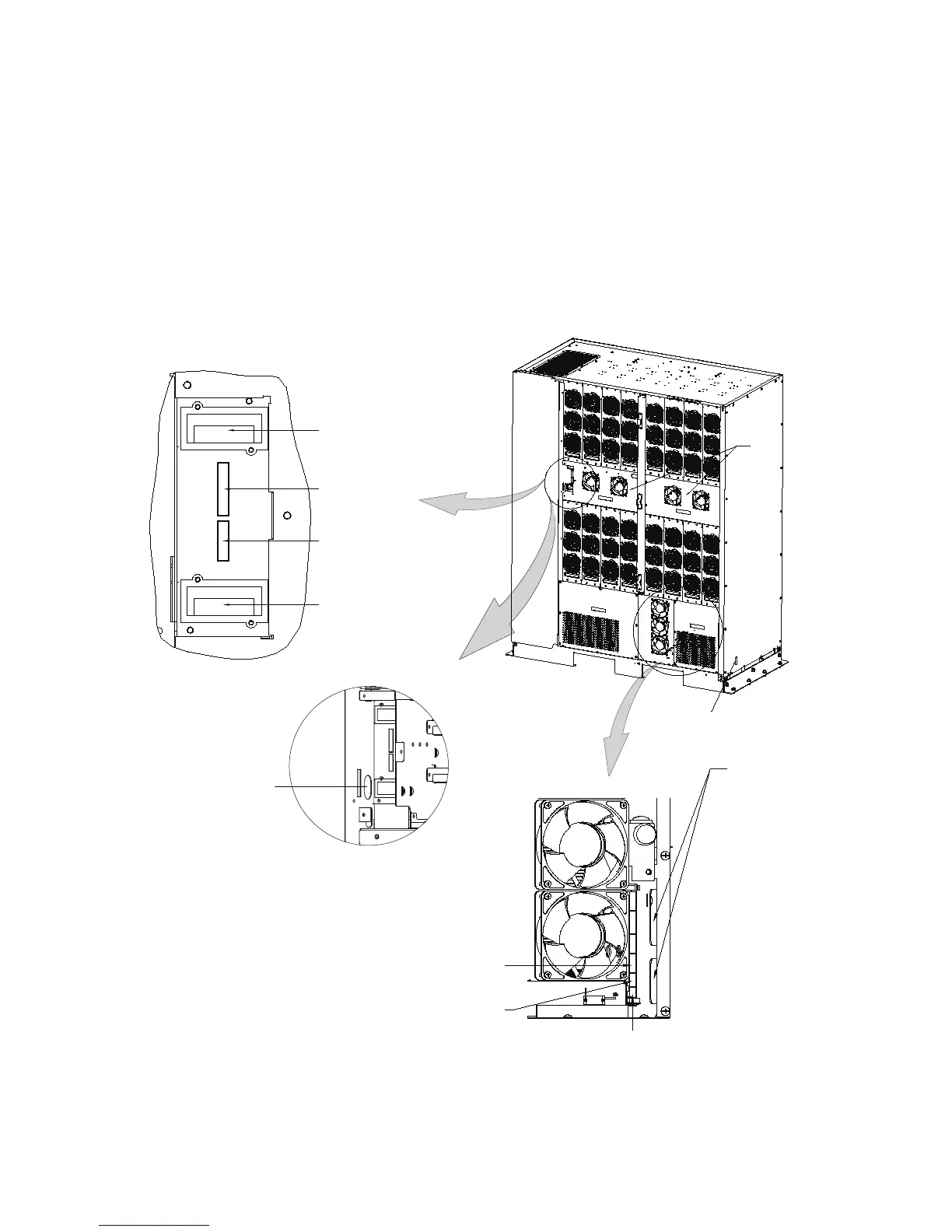

Figure 4-3. Interface Terminal Locations
Front middle cover plate
REPO Terminals
(See Figure 4-7 for detail)
Mini-Slot Communication Bays 1
Mini-Slot Communication Bays 2
Wiring Access
Remove the cover plate
CAN communication line
Pull chain hole 2
Pull chain
Building Alarm
Pull chain hole 1
Pull chain Terminals
