4.3 Configuration
4.3.1 COMMUNICATION PORTS
On the back of the UPS (see UPS Views), the following communication ports are present: RS232 connector, USB connector, Slot
for optional connectivity cards

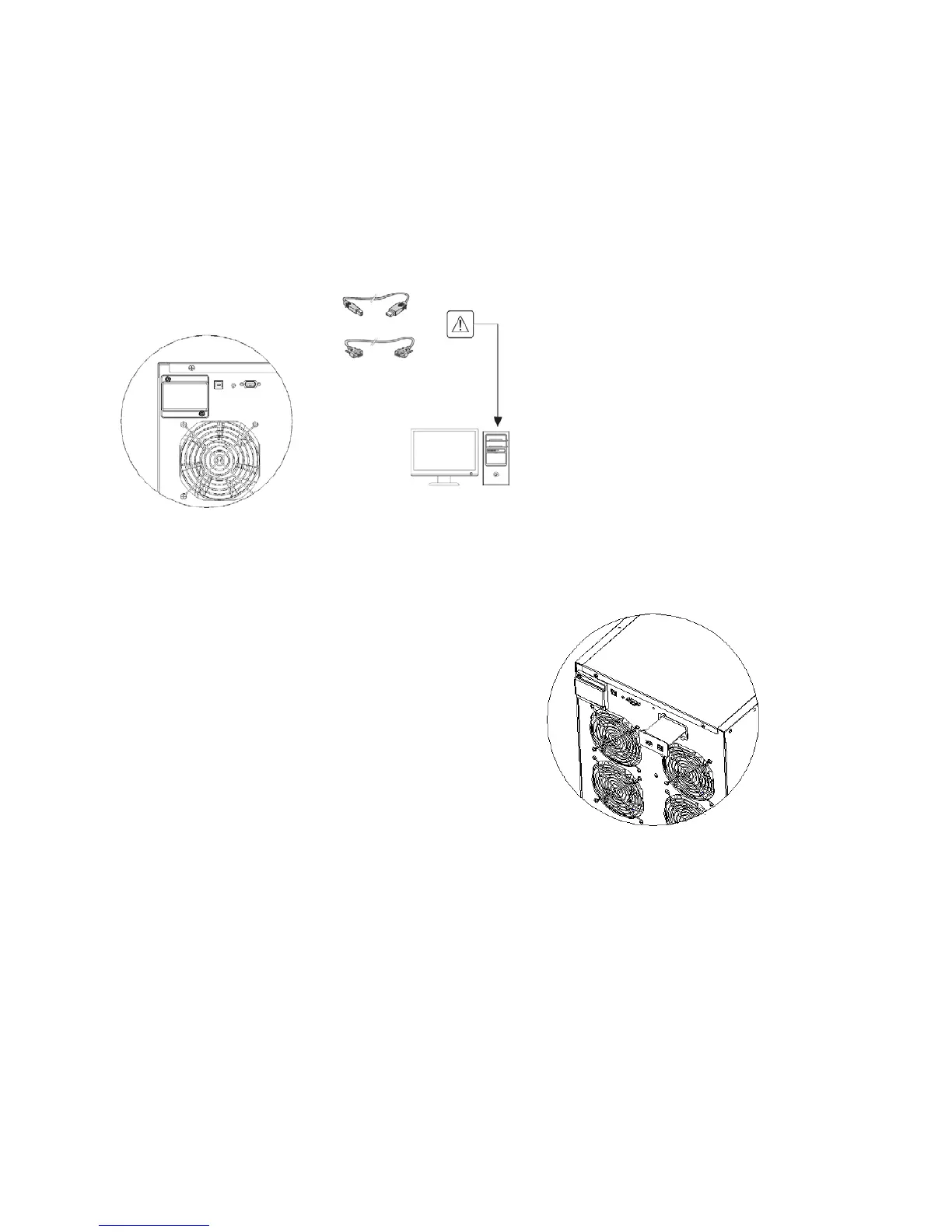

RS232 or USB communication ports
The RS232 and USB communication ports cannot operate simultaneously.
1. Connect the RS232
or USB communication cable to the serial or USB port on the computer.
2. Connect the other end of the communication cable to the RS232 or USB communication port on the UPS.
The UPS can now communicate with EATON power management software
Connectivity Cards
The UPS is equipped with an expansion slot for optional Connectivity
Cards (see figure on right).
It is not necessary to shutdown the UPS before installing a
communication card.
1. Remove the slot cover secured by screws.
2. Insert the communication card in the slot.
3. Secure the card cover with the 2 screws
Connectivity cards allow the UPS to communicate in a variety of networking environments and with
different types of devices.
• Network-MS card - has SNMP and HTTP capabilities as well as monitoring through a Web browser
interface; connects to Ethernet network. In addition, a Environmental Monitoring Probe can be atta- ched
to obtain humidity, temperature, smoke alarm, and security information.
• Modbus-MS card - has connection to Modbus protocol in addition to network management.
• Relay-MS card - has isolated dry contact (Form-C) relay outputs for UPS status: Utility failure, Battery low,
UPS alarm/OK, or on Bypass.
4.3.2 EATON INTELLIGENT POWER SOFTWARE SUITE
Each 9E UPS ships with Eaton Intelligent Power Software suite. To begin installing, see the instructions
accompanying the Software suite CD.
Eaton Software suite provides up-to-date graphics of UPS power and system data and power flow.
It also gives you a complete record of critical power events, and it notifies you of important UPS or power
information.
If there is a power outage and the 9E UPS battery power becomes low, Eaton Software suite can automatically shut down
your computer system to protect your data before the UPS shutdown occurs.
