4. Communication
Connectivity Cards
Connectivity cards allow the UPS to communicate in a variety of networking environments and with dif-
ferent types of devices. The 9PX models have one available communication bay for the following
connectivity cards:
• Network-MS card - has SNMP and HTTP capabilities as well as monitoring through a Web browser inter-
face; connects to Ethernet network. In addition, a Environmental Monitoring Probe can be attached to
obtain humidity, temperature, smoke alarm, and security information.
• Modbus-MS card - has connection to Modbus protocol in addition to network management.
• Relay-MS card - has isolated dry contact (Form-C) relay outputs for UPS status: Utility failure, Battery
low, UPS alarm/OK, or on Bypass.

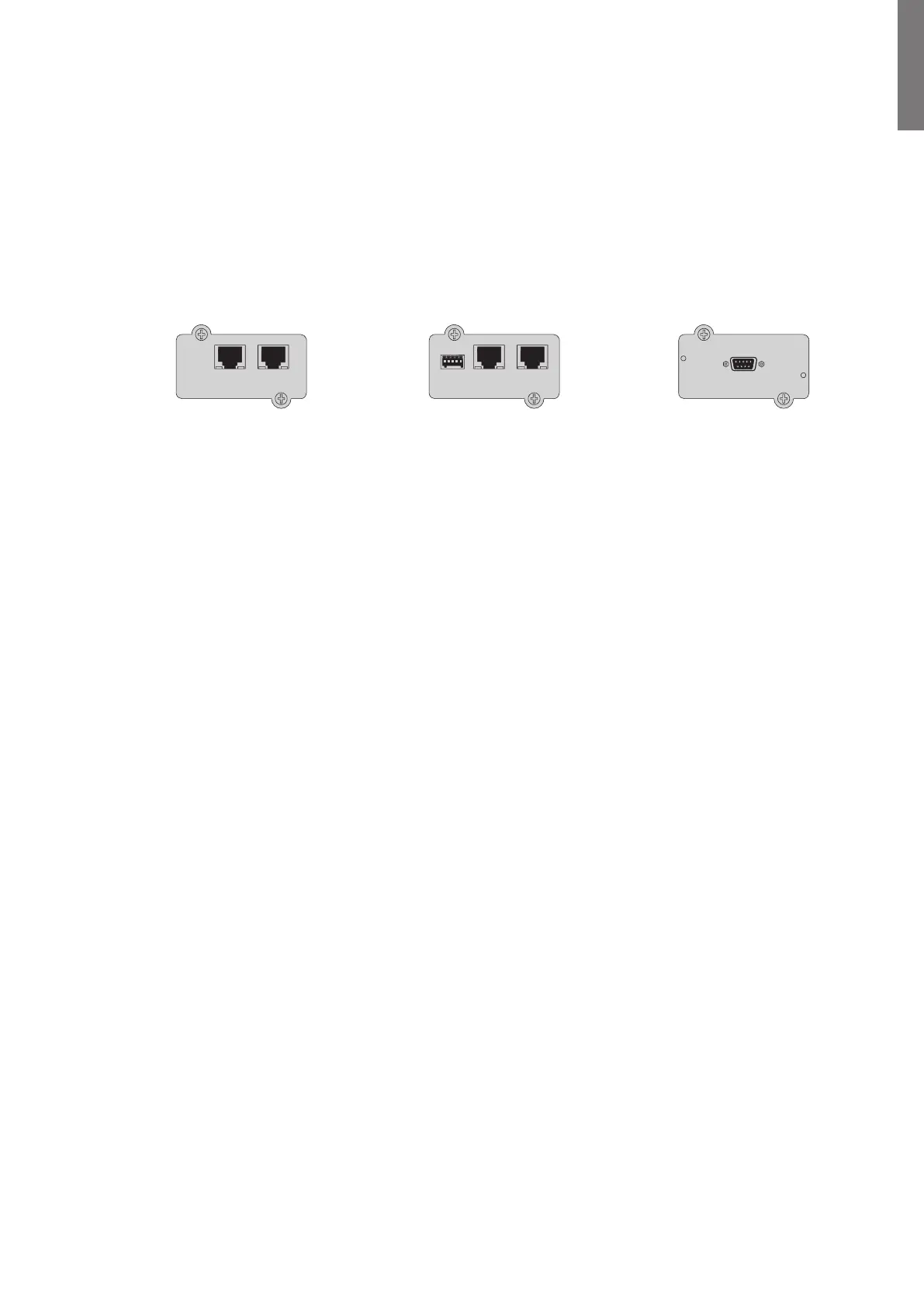

Relay-MS cardNetwork-MS card
ETHERNET
100M 10 M UPS data Reset
Setting/Sensor
Modbus-MS card
ETHERNET
100M 10 M UPS data Reset
Setting/Sensor
4.3 Eaton Intelligent Power Software suite
Eaton Intelligent Power Software suite is available from eaton.com/download.
EatonSoftwaresuiteprovidesup-to-dategraphicsofUPSpowerandsystemdataandpowerow.
Italsogivesyouacompleterecordofcriticalpowerevents,anditnotiesyouofimportantUPSorpower
information.
If there is a power outage and the 9PX UPS battery power becomes low, Eaton Software suite can automati-
cally shut down your computer system to protect your data before the UPS shutdown occurs.
