2. Presentation

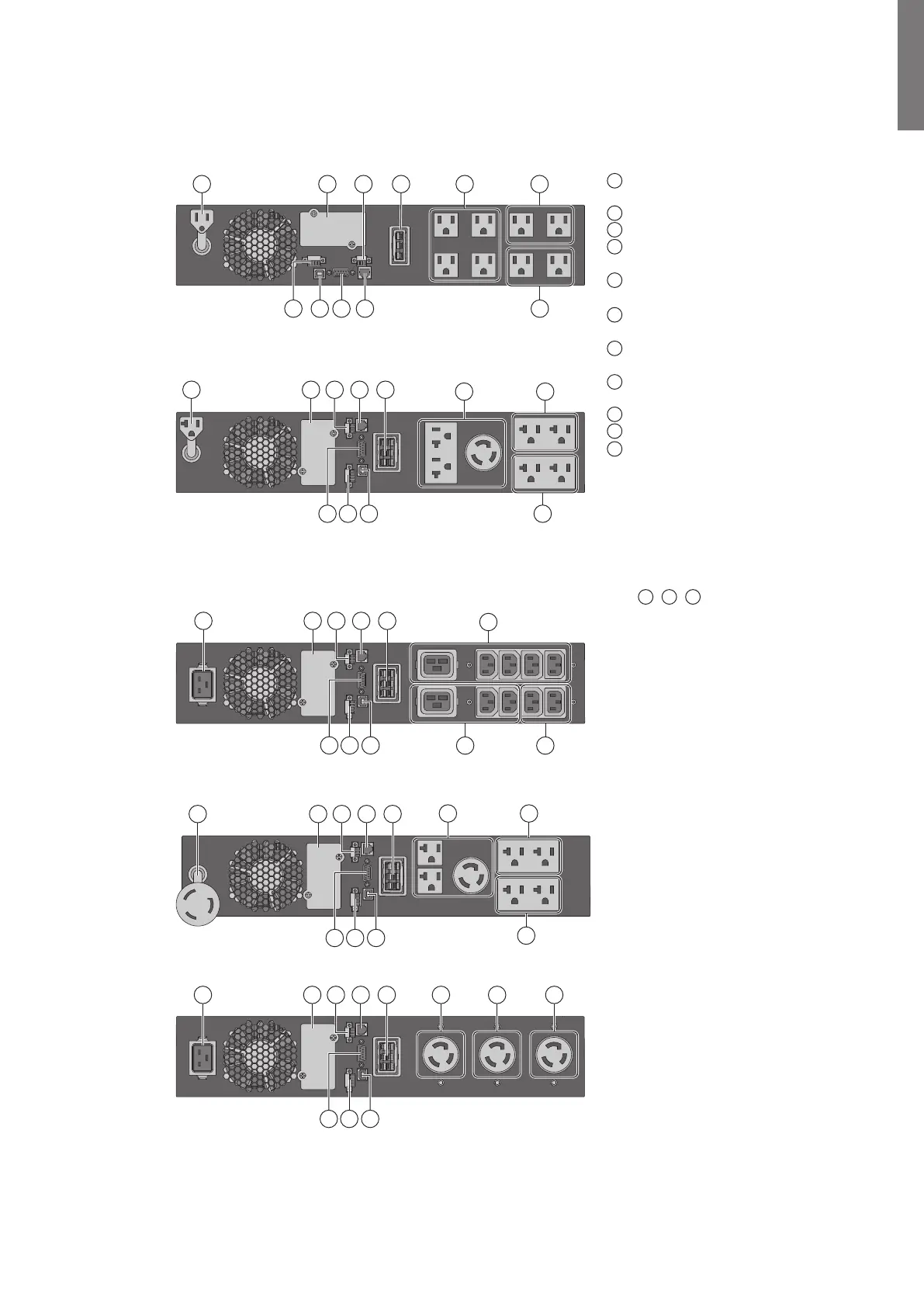

2.2 Rear panels
9PX 700RT / 9PX 1000RT / 9PX 1500RT
1 2 3 4 5 6
9 811 10 7
9PX 2000RT
1 82 43
5 6
9 1011
7
9PX 1000GRT, 9PX 1500GRT, 9PX 2200GRT &
9PX 3000GRT
1 82 43
5
9 1011
6 7
9PX 3000RT
(*)
1 82 43
5 6
9 1011
7
9PX 3000GLRT
1 82 43 5 6 7
9 1011
1
Socket for connection to AC power
source
2
Slot for optional communication card
3
Relay output contact
4
Connector for additional battery
module
5
Primary group: outlets for
connection of critical equipment
6
Group 1: programmable
outlets for connection of equipment
7
Group 2: programmable
outlets for connection of equipment
8
Connector for automatic recognition
of an additional battery module
9
RS232 communication port
10
USB communication port
11
Connector for ROO (Remote On/Off)
control and RPO (Remote Power Off)
(*) Primary and Grouped outlets
(
5
,
6
,
7
) are protected by 20A
circuit breakers.
