Note: please refer to Chapter 5 for more details of light display reference.
LED Indicator Color Instruction
Normal indicator Green
The LED is lit when load is powered by the utility via
inverter.
Battery indicator Yellow The LED is lit when UPS is powered by battery.
Bypass indicator Yellow
The LED is lit when load is powered by the utility via
bypass.
Fault indicator Red
The LED is solid on or flashes in case of UPS fault;
and there are continuous or periodic beeps.
Keys Denition Description
UP Scroll through lists on the same screen
Down Scroll through lists on the same screen
Confirm Enter next screen
Exit Return to last screen
按键名 说明 实现方法
⑤
向上 在同一目录下进行数据切换
⑥
向下
在同一目录下进行数据切换
⑦ 确认 进入下级目录
⑧ESC 退出 返回到上一级目录
按键名 说明 实现方法
⑤
向上 在同一目录下进行数据切换
⑥
向下
在同一目录下进行数据切换
⑦ 确认 进入下级目录
⑧ESC 退出 返回到上一级目录
按键名 说明 实现方法
⑤
向上 在同一目录下进行数据切换
⑥
向下
在同一目录下进行数据切换
⑦ 确认 进入下级目录
⑧
ESC
退出 返回到上一级目录
Cha pter 3 LCD Operat ion

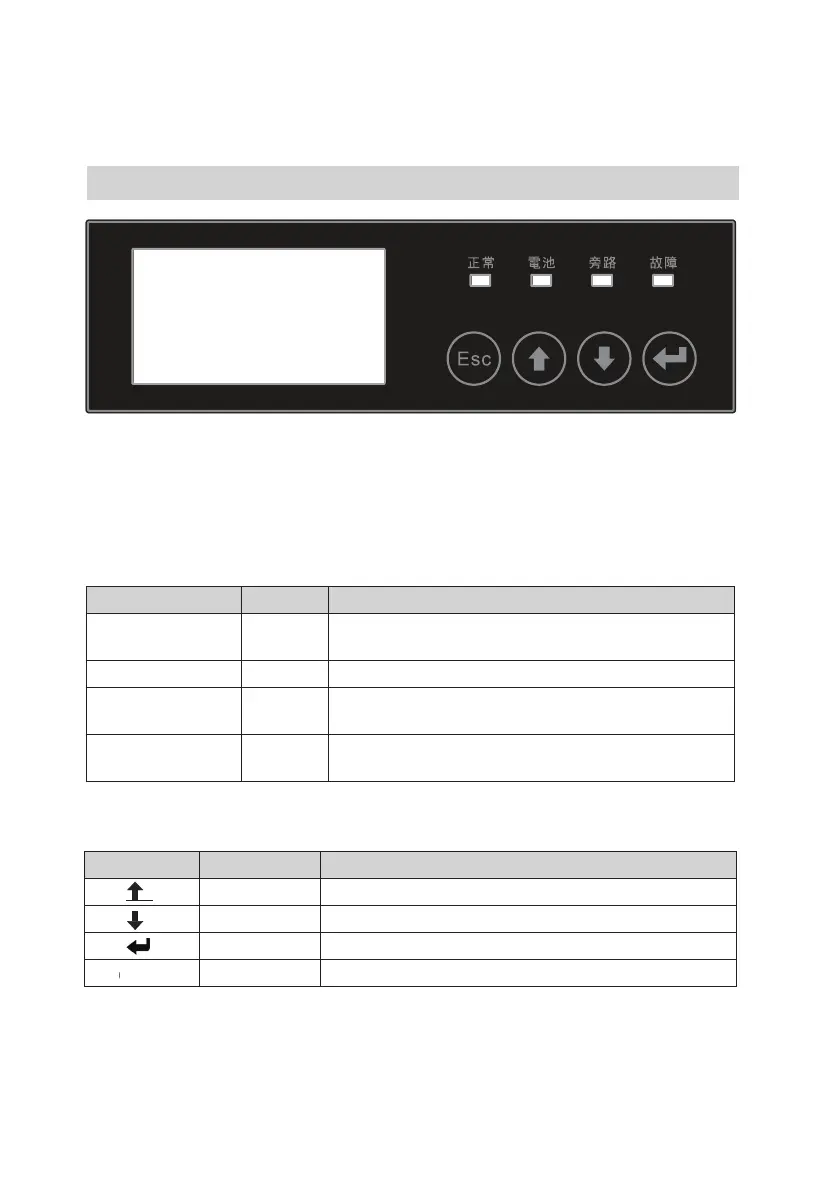

3.1 Control Panel
It is applicable for the following models:
C-6000FC: the standard model with internal battery and LCD ;
C-6000FCL: the long back up time model with external battery and LCD ;
C-10000FC: the standard model with internal battery and LCD;
C-10000FCL: the long back up time model with external battery and LCD;
