Effective 10/2004
Page 82
I.L. 70C1036H05

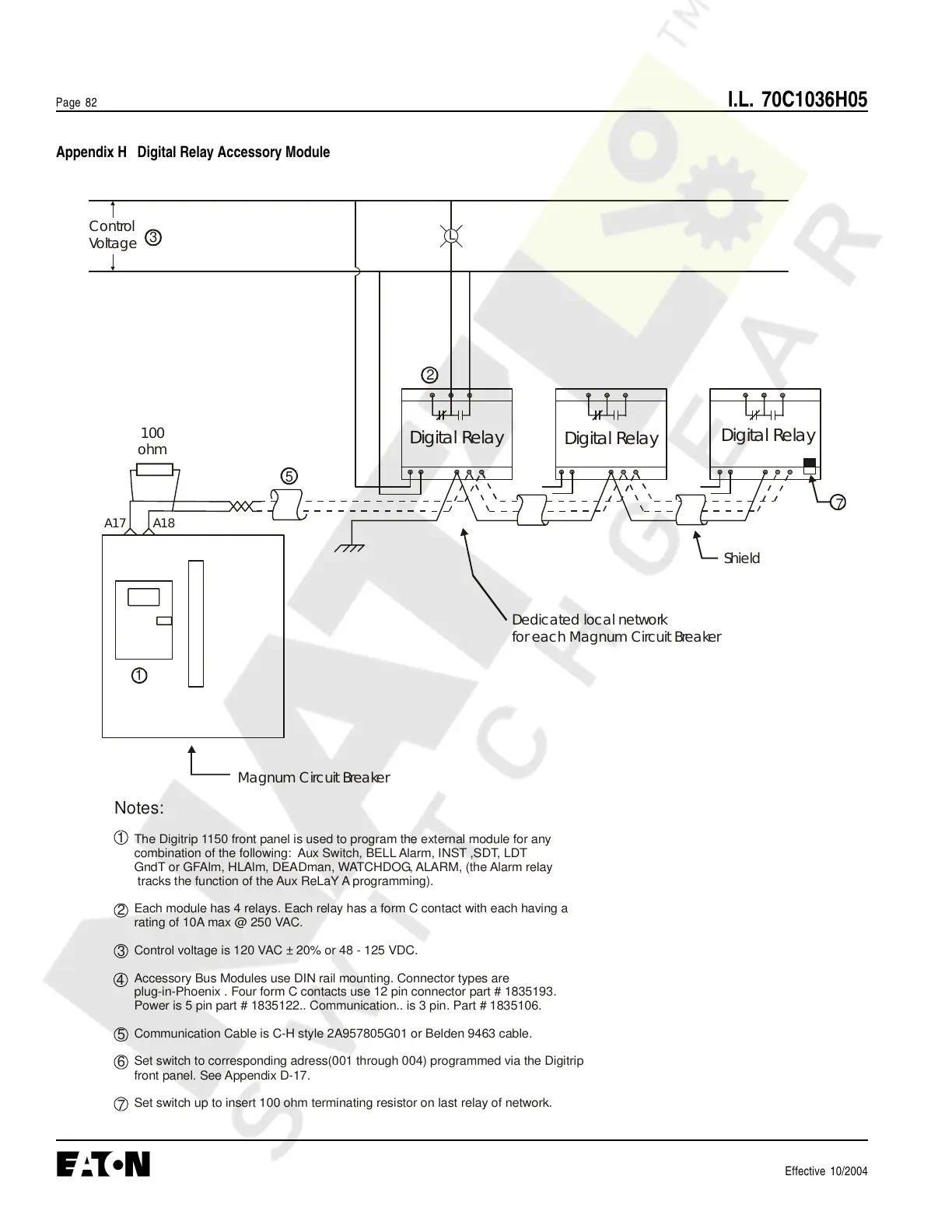

Appendix H Digital Relay Accessory Module
A18A17
Notes:
The Digitrip 1150 front panel is used to program the external module for any
combination of the following: Aux Switch, BELL Alarm, INST ,SDT, LDT
GndT or GFAlm, HLAlm, DEADman, WATCHDOG, ALARM, (the Alarm relay
tracks the function of the Aux ReLaY A programming).
Each module has 4 relays. Each relay has a form C contact with each having a
rating of 10A max @ 250 VAC.
Control voltage is 120 VAC ± 20% or 48 - 125 VDC.
Accessory Bus Modules use DIN rail mounting. Connector types are
plug-in-Phoenix . Four form C contacts use 12 pin connector part # 1835193.
Power is 5 pin part # 1835122.. Communication.. is 3 pin. Part # 1835106.
Communication Cable is C-H style 2A957805G01 or Belden 9463 cable.
Set switch to corresponding adress(001 through 004) programmed via the Digitrip
front panel. See Appendix D-17.
Set switch up to insert 100 ohm terminating resistor on last relay of network.
L
1
1
2
2
3
3
4
5
5
Shield
Dedicated local network
for each Magnum Circuit Breaker
Magnum Circuit Breaker
Control
Voltage
6
7
Digital Relay
Digital Relay
Digital Relay
7
100
ohm
