Page 11
I.B. ATS-RM05
Effective 6/01

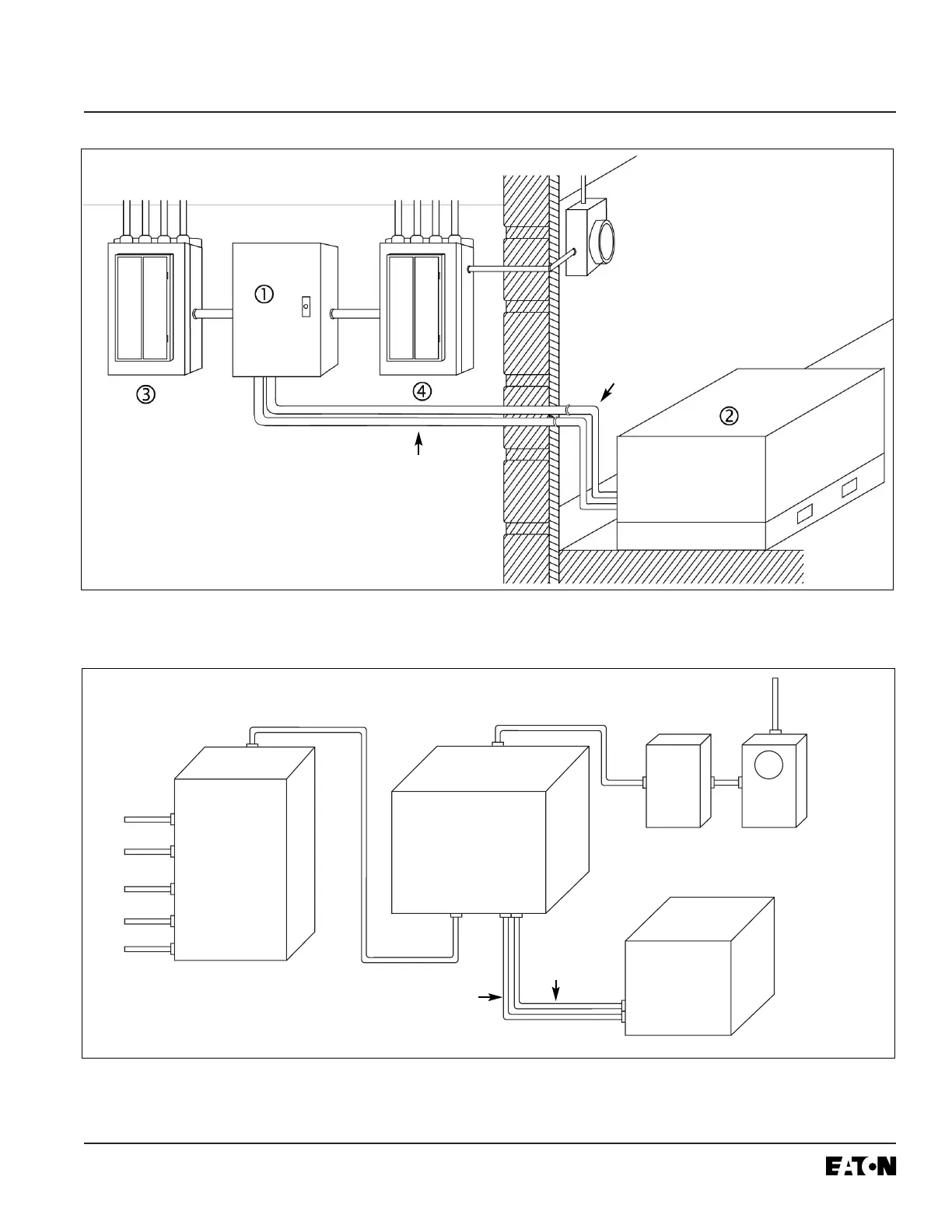

Figure 4-6 Typical installation of a residential or light duty automatic transfer switch. The switch (1) and generator (2)
are connected to the power supply. The automatic transfer switch is located between the emergency distribution (3)
and the utility panel (4).
Figure 4-7 Typical installation of a residential or light duty automatic transfer switch. The switch (1) and generator (2)
are connected to the power supply. The automatic transfer switch is located between the utility and the household
loads.
➀
➁
Main
Breaker
Panel
Transfer Switch
Disconnect
Switch
or Fuse
Watt
Hour-
Meter
Generator
Power
Cables
Control
Wiring
Power
Cables
Control
Wiring
To Next Page
