4 Basic circuit diagram
8 ESR5-NO-21-24VAC-DC 12/19 MN049007EN www.eaton.com
4 Basic circuit diagram

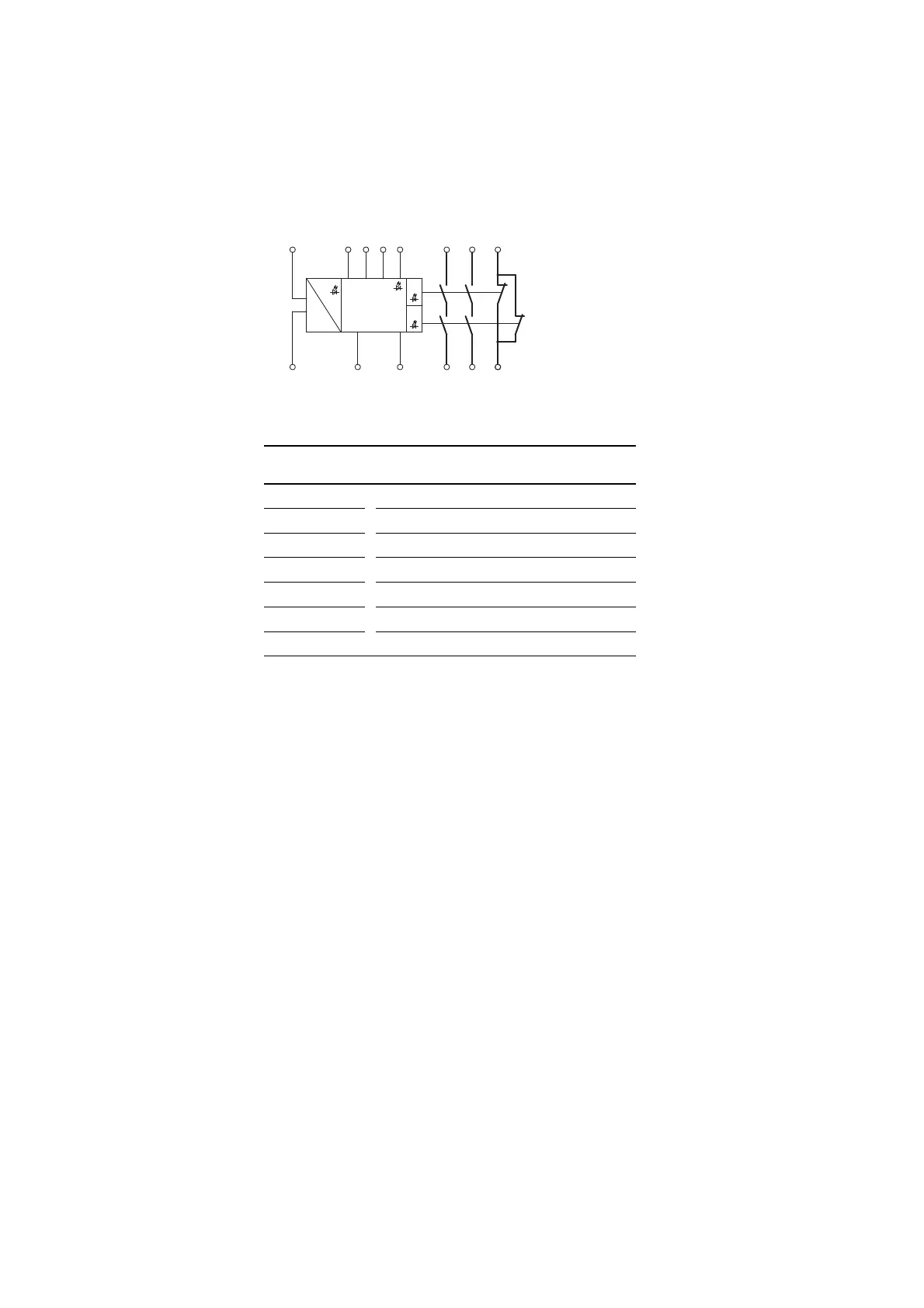

Figure 2: Block diagram
Designation Explanation
A1/A2 Safety relay input voltage
S11/S12 Input circuit 1
S21/S22 Input circuit 2
S33/S34 Start circuit
13/14 Undelayed enabling current path 1
23/24 Undelayed enabling current path 2
31/32 Signaling current path
Logic
IN 1/2
A1
S11S33 S34 S12 13 23
31
K1
K2
A2 S21 S22 14 24
32
24VDC
24V AC/DC
Power
