1. Presentation
86-81700-00EN A02 - Page 10

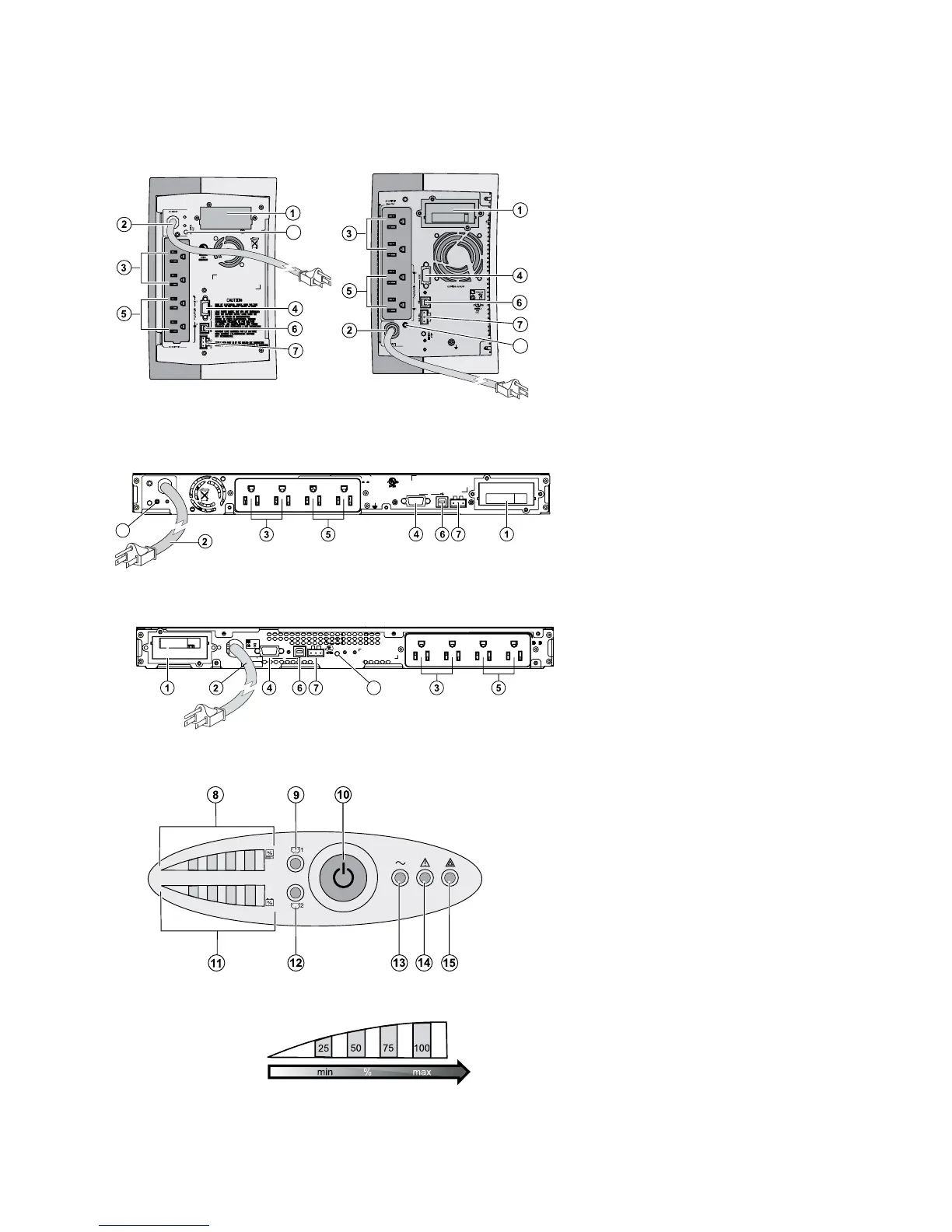

1.2 Rear Panels
Evolution 650/850/1150/1550
a
55K6
U.P.S.
R
AC OUTPUT
I max 12A
AC INPUT
FAULT
SITE WIRING
U.S. PAT. NO. 6,094,363
36Vdc, 9Ah
Pb
2
1
Programmable
or
RS232
ROO RPO
a
Evolution 650/850/1150/1550 Rack
Evolution 650/850/1150 Rack
AC INPUT
RS232
Site wiring fault
AC OUTPUT
Programmable
2
1
Pb
55K6
(E87247)
RPO ROO
or
a
Evolution 1550 Rack
RS232
RPO ROO
36Vdc, 9Ah
Pb
Volt 120V~1OAC Input
W/VA 1100W/1440VA
Volt 100/120/127V~1O
Amps 12A MAX
Hertz 50/60 Hz
Hertz 50/60 Hz
AC Output
AC INPUT
12
Programmable
AC OUTPUT
SITE WIRING
FAULT
U.S. PAT. No. 6,094,363
55K6
U.P. S.
R
or
I max 12A
Amps 12.96/12/11.34A
a
1.3 Control Panel
Bargraphs (8) and (11)
(1) Slot for optional communication card
(2) Attached 6 ft. input power cord with
5-15P plug, 15A
(3) 2 NEMA 5-15R for connection of
equipment
(4) RS232 communication port
(5) 2 NEMA 5-15R programmable outlets
(6) USB communication port
(7) Connector for remote RPO/ROO (Remote
Power OFF / Remote ON/OFF)
(a) LED indicating site wiring fault alarm with
reset button
(8) Bargraph indicating the percent load
(9) Programmable outlet 1 is supplied
(10) ON/OFF button for UPS and outlets
(11) Bargraph indicating battery-charge level
(12) Programmable outlet 2 is supplied
(13) Load protected LED
(14) Downgraded operation LED
(15) Load not protected LED
