Eaton FS-5005A User Manual

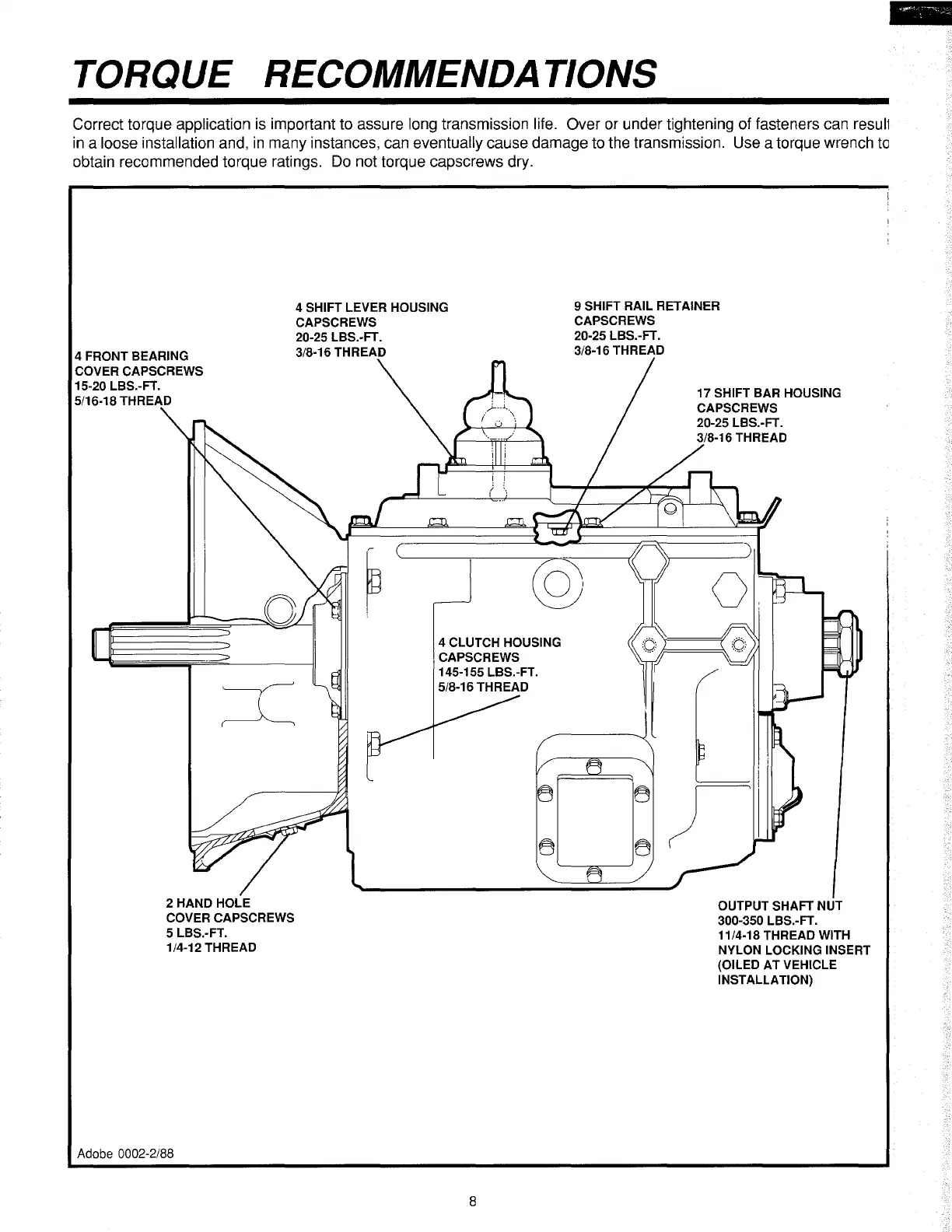

TORQUE RECOMMENDATIONS
Correct torque application is important to assure long transmission life. Over or under tightening of fasteners can resul1
in a loose installation and, in many instances, can eventually cause damage to the transmission. Use a torque wrench to
obtain recommended torque ratings. Do not torque capscrews dry.
4 FRONT BEARING
COVER CAPSCREWS
15-20 LBS.-FT.
5/16-18 THREAD
2 HAND
HOLE
COVER CAPSCREWS
5 LBS.-FT.
1/4-12 THREAD
Adobe 0002-2/88
4
SHIFT LEVER HOUSING
CAPSCREWS
20-25 LBS.-FT.
3/8-16 THREAD
9
SHIFT RAIL RETAINER
CAPSCREWS
20-25 LBS.-FT.
3/8-16 THREAD
17
SHIFT BAR HOUSING
CAPSCREWS
20-25 LBS.-FT.
3/8-16 THREAD
@
4 CLUTCH HOUSING
CAPSCREWS
145-155 LBS.-FT.
5/8-16 THREAD
8
OUTPUT SHAFT NUT
300-350
LBS.-FT.
11/4-18 THREAD
WITH
NYLON LOCKING INSERT
(OILED
AT VEHICLE
INSTALLATION)
