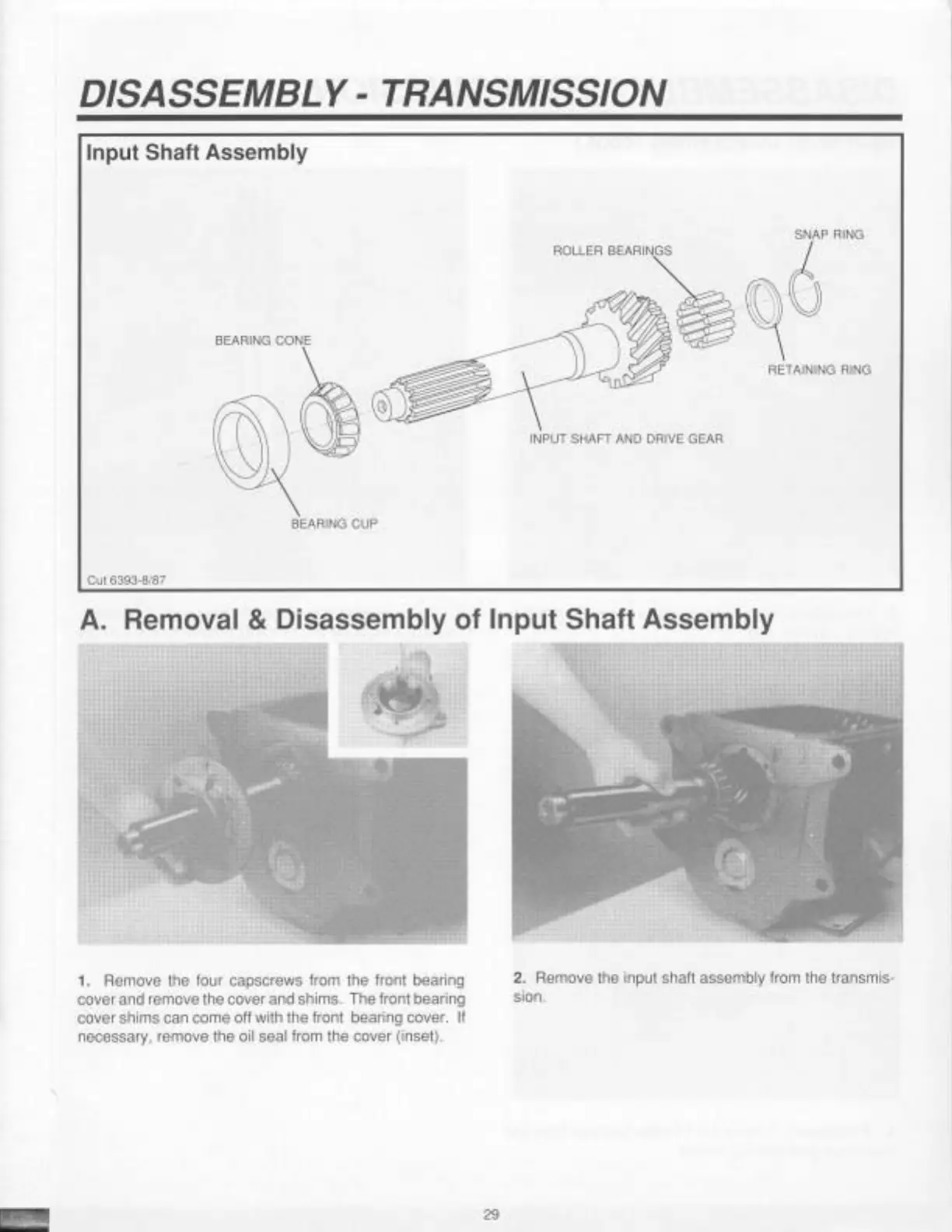

DISASSEMBLY - TRANSMISSION
Input Shatt Assembly
INPUT SHArT ANO DRJVE GEAR
BeAfl:lNG CU P
A. Removal & Disassembly of Input Shaft Assembly
1. Remove ltle four capscrews trom lhe front bearing
oover a.nd remove 1he cover and shims The tront beanng
oovershlms can come oft \Vlth 1he front bean.ng cover. If
necessary remove the oi1 seal from the cover (inset).
29
2. Remove I.he input shaft assembly from the transmls·
.. ..,
