Installation Requirements
Installation
Requirements
Air Supply Requirements
1. It is required to use a high quality commercially available air dryer in the air supply line before the transmission.
2. Minimum air requirement for the transmission is 65 PSI.
3. A minimum of 1/4” diameter air supply line is required.
4. The transmission air supply is required to be routed from the air tank, which supplies air to either the front or rear vehi-
cle service brakes, with a gauge indicator in the cab.
5. Transmission airlines should not be routed or attached at the bottom air tank fittings to avoid any chances of introduc-
ing moisture into the airline.
6. Care should be used when routing the air supply to avoid kinks and close contact to heat sources.
7. The transmission air supply must be connected to the air filter/regulator mounted on the range cylinder cover.
Note: The air filter/regulator must not be removed during installation.
8. Air additives such, as alcohol devices should not be permitted to enter the transmission air supply. Additives could
cause damage to air system components, which could lead to degraded transmission performance.

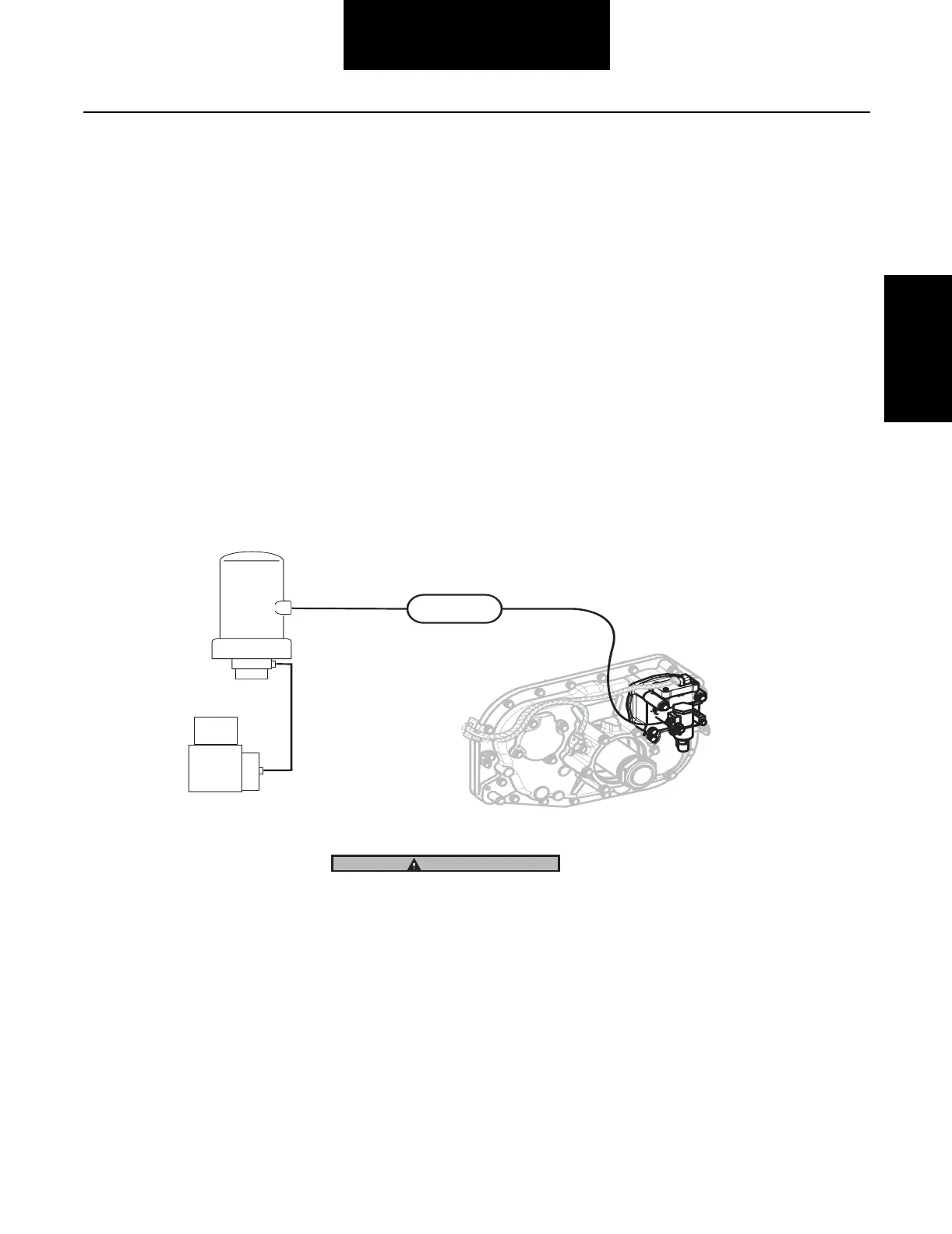

SERVICE TANK
Air
Drying
Compressor
Do not tie wrap air line
to wire harness on transmission
CAUTION
To Next Page
