LCD touchscreen display programming
PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com
LCD touchscreen display programming
Introduction
The PRC-E Series controllers are equipped with a 2.25” x
3.75” resistive LCD touch screen. The touch screen has
graphic icons that are used to navigate through the menus
of the controller, input data, configure the controller, and
initiate commands to control functionality. Throughout this
manual the word “touch” or “tap” will be used to describe
the action of choosing the icon on the LCD touch screen.
ote:N Some icons have touch time delays to help alleviate
errors due to multiple button presses.
The following LCD instructions follow the process of the
initial commissioning of a panelboard. Each screen will be
covered, but not in the order as displayed. LCD access can
be secured by an optional Pin-code which can be set in
the software.
ote:N The BCB installation, addressing and correct cabling
is crucial to the successful control of the controllable
circuit breakers. See the “BCB installation” section
on page 78 for further information on cabling and
correct state of the status LEDs on the BCB.
In the idle state, the LCD will have a blank screen.
Log-in

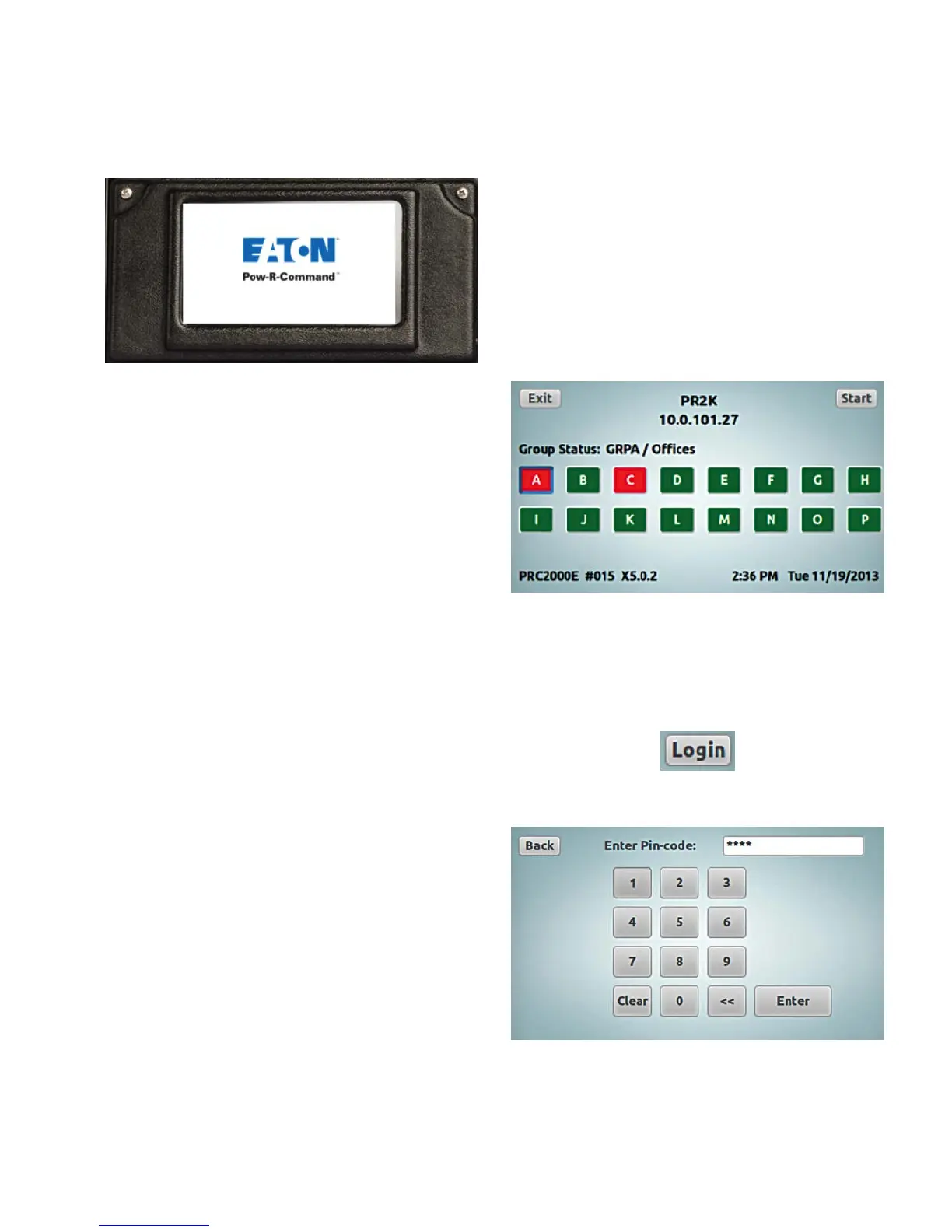

Tap the LCD screen of the PRC-E controller.
This will “wake up” the LCD display. A splash screen will
briefly appear, then the “Intro” screen will display. This
screen displays following information:
Name and Description of the controller
IP address of the controller
Status of groups A through P
Controller type, Address, and Firmware revision
Time, Day, and Date
In the top right corner, the “Intro” screen will have a button
called “Log-In”, if a pin-code for the LCD has been previously
set, or “Start”, if a Pin-code has not been set.
If the “Log-In” button is present,
Tap “Log-in” button.
This will display the “Enter Pin-code” screen.
To Next Page
