Echo CS-500VL User Manual

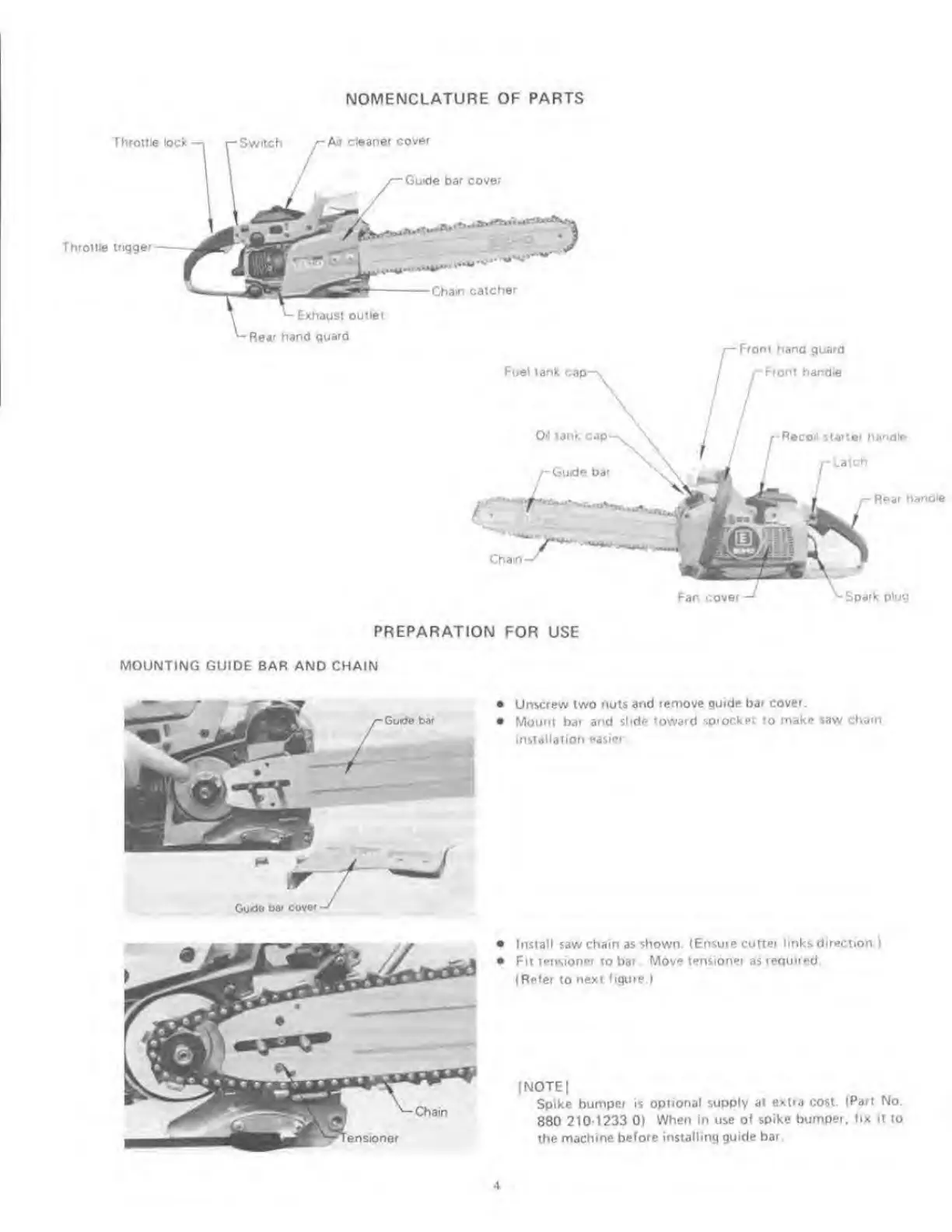

NOMENCLATURE OF PARTS
catcher
Exhaust outlet
har^d guard
Fuel tank
Front hand guard
From handle
Od tank cap
Recod starter handle
Latch
Rear handle
Fan cover
Spark plug
Throttle lock
Throttle
cleaner cover
Guide bar cover
PREPARATION FOR USE
MOUNTING GUIDE BAR AND CHAIN
e Unscrew two nuts and remove guide bar cover.
• Mount bar and slide toward sprocket to make saw chain
installation easier.
• Install saw chain as shown. (Ensure cutter links direction.)
« Fit tensioner to bar, Move tensioner as required.
(Refer to next figure,)
I NOTE I
Spike bumper is optional supply at extra cost. (Part No.
880 210-1233 0) When in use of spike bumper, fix it to
the machine before installing guide bar
4
