PE-225 MAINTENANCE
X7732272804 31
© 03/21 ECHO Incorporated

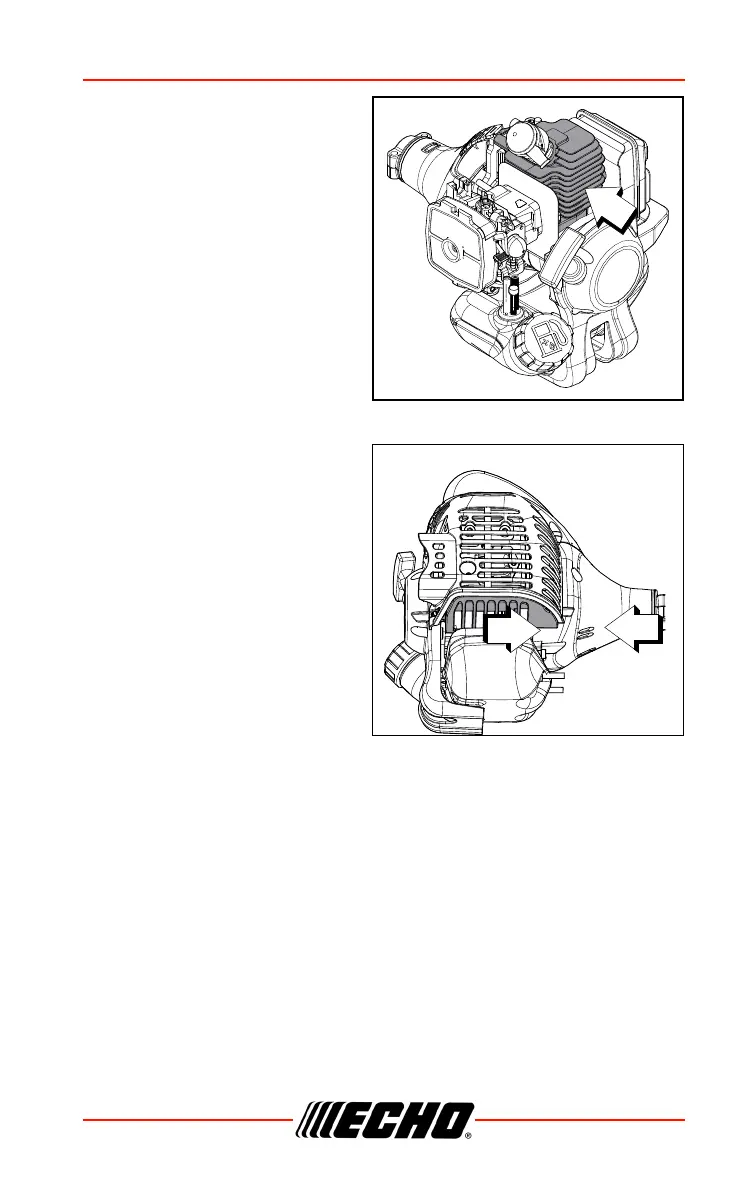

4. Use a brush to remove dirt
from the cylinder fins.
5. Remove ignition wires from
clip for cleaning.
6. Remove grass and leaves
from the grid between the
recoil starter and fuel tank.
7. Assemble components in
reverse order.
Exhaust System
Spark Arrestor Screen
Level 2.
1. Remove spark plug lead and engine cover.
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
Parts Required: Spark Arrestor Screen, Gasket
A
