PE-225 MAINTENANCE
X7732272804 35
© 03/21 ECHO Incorporated

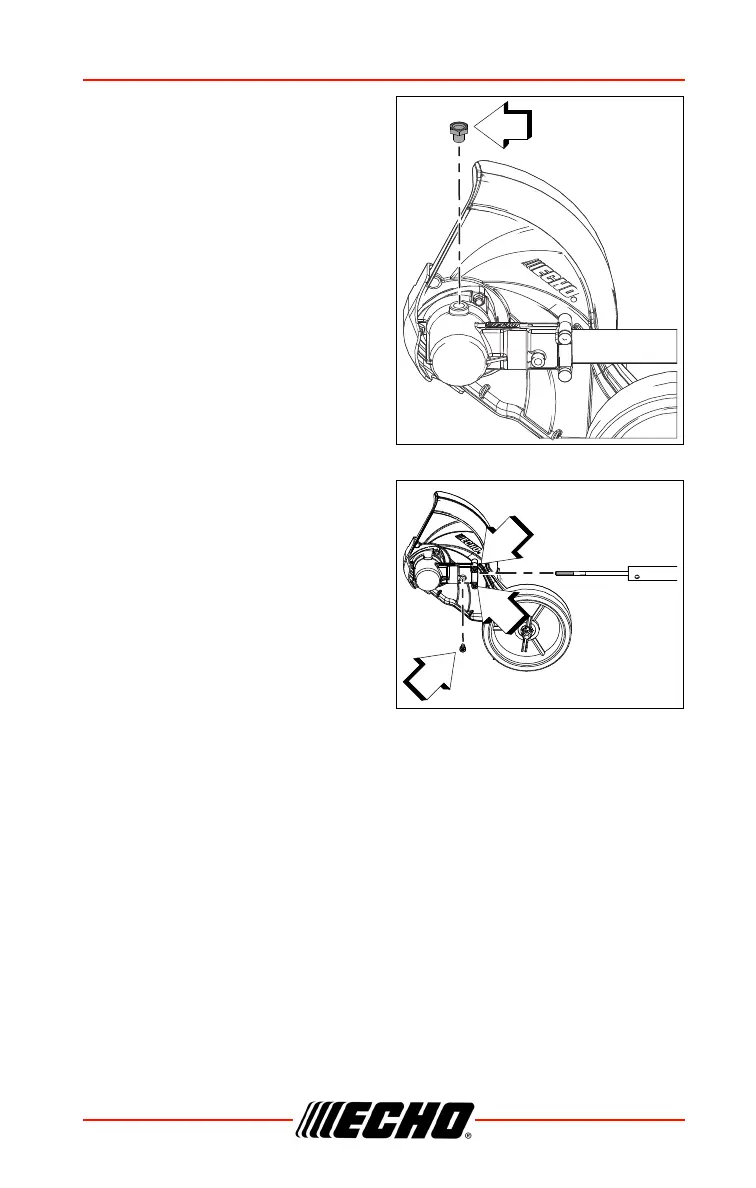

Gear Housing
1. Remove plug (A) and add grease
to gear housing. Do not overfill.
2. Replace plug and tighten
securely.
Drive Shaft
1. Loosen screws (B) and remove
center locating screw (C). Pull
gear box and shield from drive
shaft housing.
2. Pull flexible cable from the drive
shaft housing, wipe clean and re-
coat with 15 ml (0.5 oz.) of
grease.
3. Slide the flexible cable back in
the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and shield assembly. Align locating screw hole
with hole in drive shaft housing.
5. Tighten screws securely.
Edger Blade Replacement
Level 1.
Parts required: Blade, new split pin.
Note: Replace blade when it is bent, damaged, or worn shorter than
152.4 mm (6 in.).
