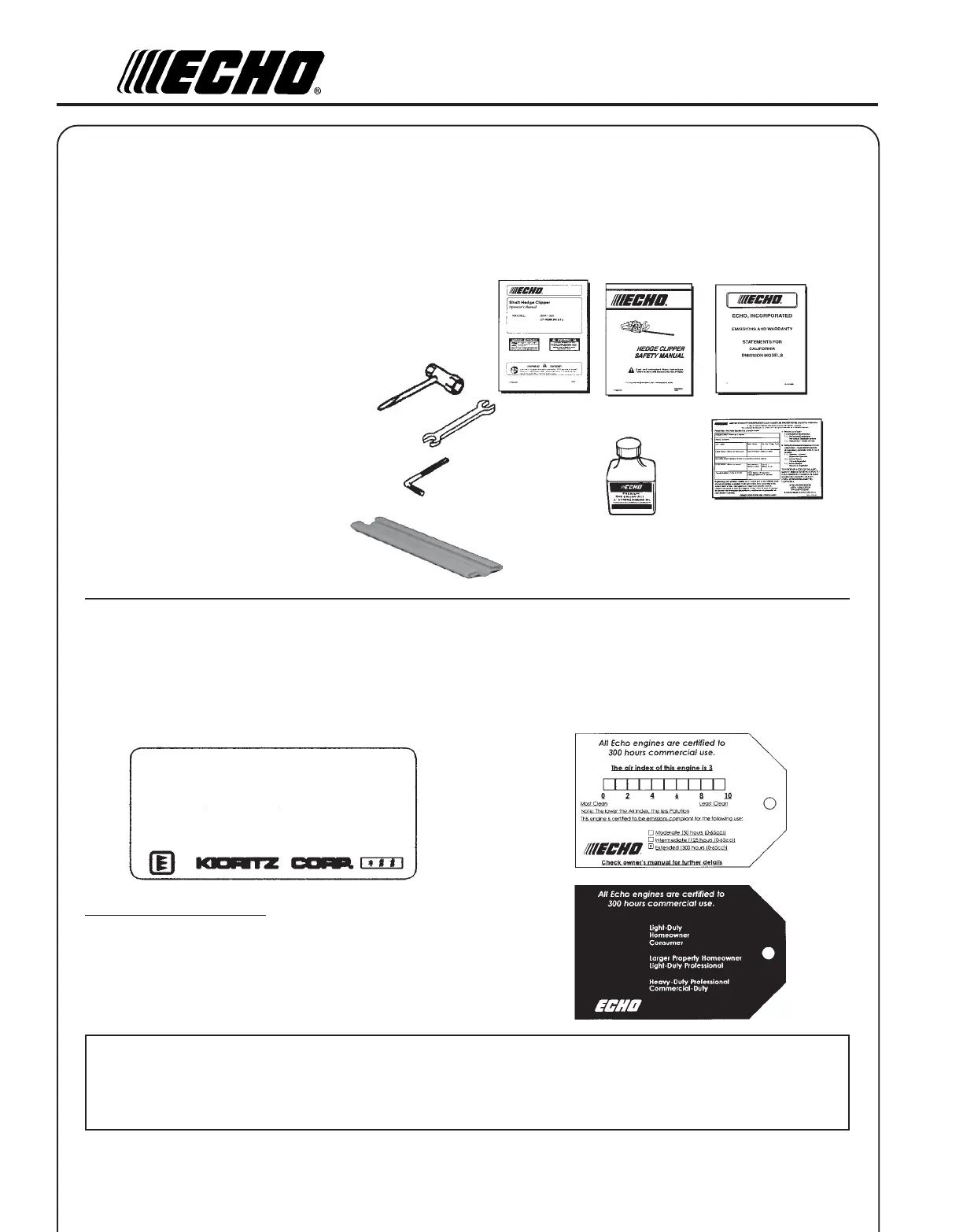

10
DESCRIPTION
The ECHO product you have purchased has been factory pre-assembled for your convenience. Due to packaging
restrictions, some assembly of the SHC-261 is required.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
CONTENTS LIST
__ 1 - Power Head
__ 1 - Gear Case Assembly
__ 1 - Drive Shaft Assembly
__ 1 - Operator's Manual
__ 1 - Hedge Clipper Safety Manual
__ 1 - Warranty Statement
__ 1 - Warranty Registration Card
__ 1 - Blade Cover
__ 1 - 2-Stroke Oil Sample, 2.6 oz.
__ 1 - Scrench 17 x 19
__ 1 - 4 mm Hex Wrench
__ 1 - 8 mm/10 mm Wrench
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: YEHXS.0254RA
DISPLACEMENT: 25.4 CC
THIS ENGINE MEETS U.S. EPA PH1 AND 2000 AND
LATER CALIFORNIA EMISSION REGULATIONS FOR
S.O.R.E. REFER TO OWNER'S MANUAL FOR
MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
An Emission Control Label is located on the engine. (This is an
EXAMPLE ONLY, information on label varies by engine FAMILY).
AIR INDEX TAG
The Air Index Tag indicates, for purposes
of consumer awareness, how this product's
emissions compare to the standards enacted
by the California Air Resources Board.
PRODUCT EMISSION DURABILITY
The 300 hour emission durability period is the time span selected by the manufacturer certifying the engine
emissions output meets applicable California emissions regulations, provided that approved maintenance proce-
dures are followed as listed in the Maintenance Section of this manual.
EMISSION CONTROL
California Tier 2
The emission control system for these engines are
EM (Engine Modification).
