14

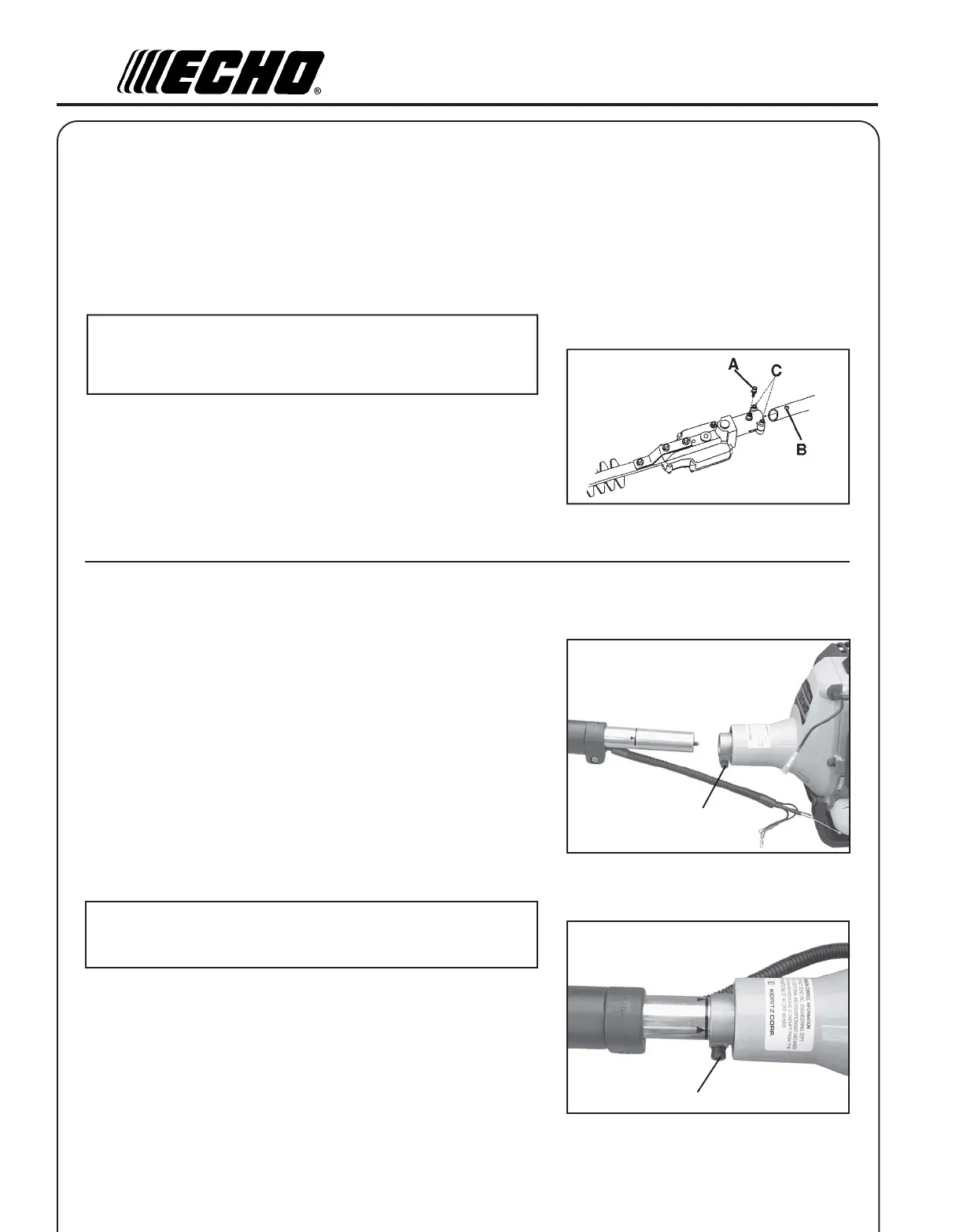

ASSEMBLY
GEAR
HOUSING ASSEMBLY / DRIVE SHAFT
Tools Required: 4 mm Hex Wrench, Screwdriver
Parts Required: Power Head/Drive Shaft Assembly and Gear Housing
Assembly.
NOTE
Hedge Clipper Blades are very sharp. Wear gloves to protect
hands.
1. Slide the Gear Housing Assembly on the Drive Shaft. Be certain
the Flex Drive Shaft engages the hole in Driver Gear.
2. Align the locating screw (A) with the locating hole (B) in the Drive
Shaft Housing, tighten screw (A) and clamping screws (C).
DRIVE SHAFT ASSEMBLY / POWER HEAD
Tools Required: 4 mm Hex Wrench
Parts Required: Power Head, Drive Shaft Assembly
1. Loosen, the bolt (A) at engine drive shaft clamp.
2. Carefully fit drive shaft assembly to engine making sure that
inner drive shaft engages into clutch mount.
NOTE
Lower gear housing cutter head assembly must be in line with the
engine.
3. Turn drive shaft housing so that center line of housing is midway
between the two arrows on shaft.
4. Tighten bolt (A).
