ASSEMBLY SRM-2620U
20 X7502341900
© 10/2016 ECHO Inc.

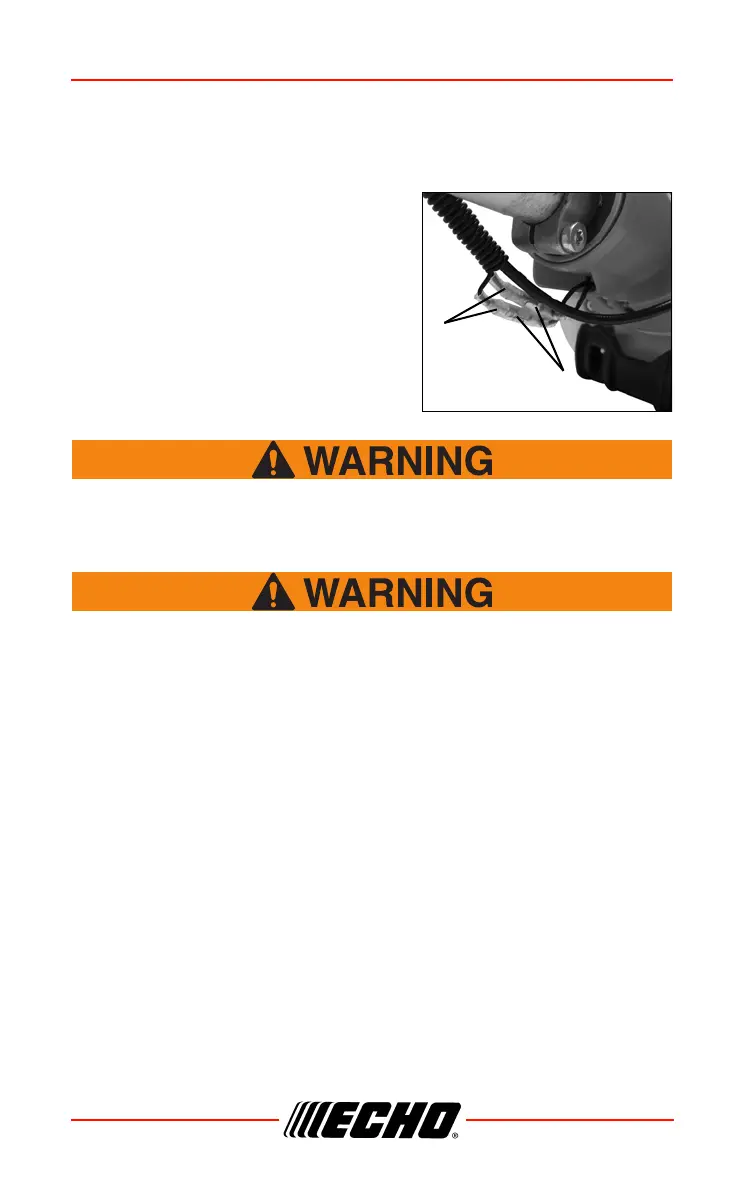

Note: The throttle linkage must be adjusted by moving the adjustment nut
(D). Consult with your Echo Dealer for correct adjustment
procedure.
5. Tighten nut (E).
6. Connect 2 ignition stop leads (F, G)
from throttle cable assembly to 2
ignition leads (F, G) on engine.
7. Install air filter and cover.
Blade Installation
You must install the U-Handle and all Blade Conversion parts
shown in the following instructions before operating this unit
with a metal blade, otherwise serious injury may result.
Shield with cutoff knife is for use with the Nylon Line Head only.
Install shield without cutoff knife when using plastic or metal
blades, or serious injury may result.
Note: Includes U-Handle, and necessary blade conversion parts.
Blades must be selected for type of cutting being performed.
See “Blade Selection.”
Install blade Shield
Parts Required: Shield without cutoff knife, Shield Plate, 3
bolts, 3 lock nuts
