SRM-3020 OPERATION
X7502350002 25
© 2/20 ECHO Incorporated

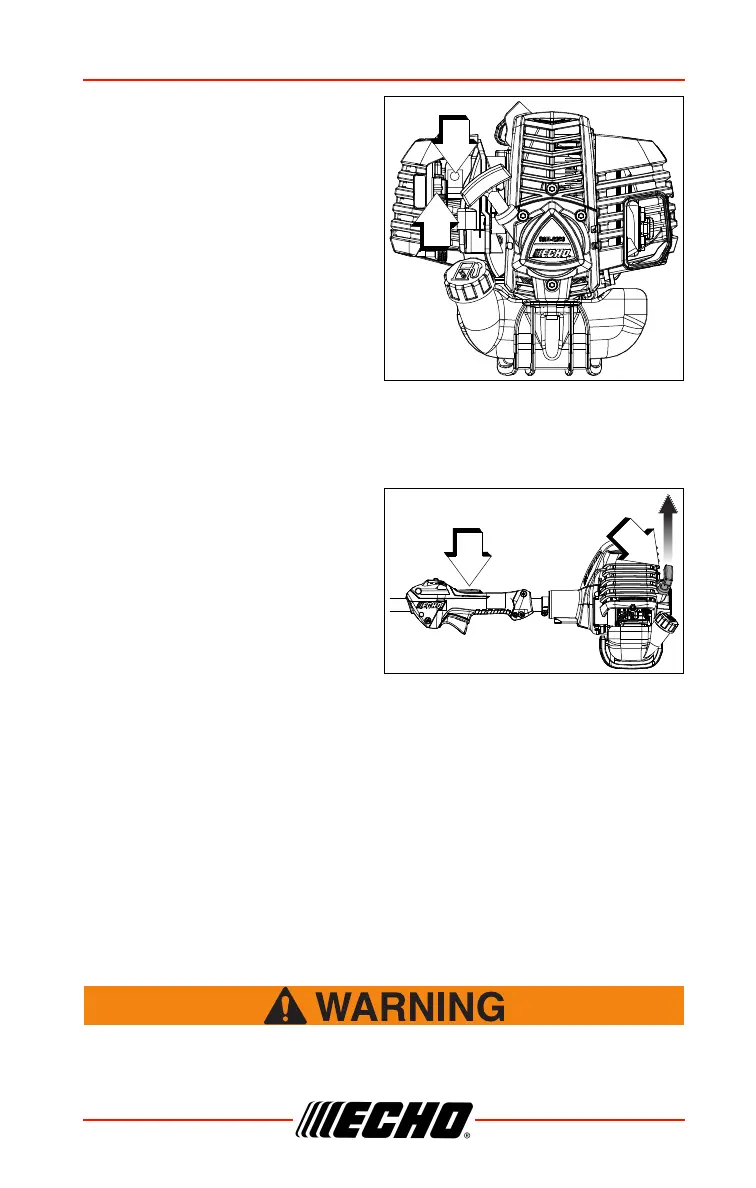

2. Choke
Move choke lever (B) to COLD
STARTposition.
3. Purge Bulb
Pump purge bulb (C) until fuel is
visible and flows freely in the
clear fuel tank return line. Pump
bulb an additional 4 or 5 times.
4. Recoil Starter
Lay the unit on a flat area and
keep movable attachment parts
clear of all obstacles. Firmly
grasp throttle handle and throttle
trigger lockout with left hand and fully depress throttle trigger to wide open
position. Rapidly pull recoil starter handle/rope (D) until engine fires (or
maximum five pulls).
5. Choke
After engine fires (or five pulls),
move choke to the RUN (open)
position. Firmly grasp throttle
handle and throttle trigger
lockout with left hand and fully
depress throttle trigger to wide
open position. Pull starter
handle/rope (D) until engine
starts and runs. Release throttle
trigger and allow unit to warm up at idle for several minutes.
Note: If engine does not start with choke in “RUN” position after five
pulls, repeat instructions 2 - 5.
6. Throttle Trigger
After engine warm-up, grip throttle handle and support handle. Depress
the throttle trigger lockout, and gradually depress throttle trigger to
increase engine RPM to operating speed.
Starting Warm Engine
The starting procedure is the same as Cold Start except DO NOT close the
choke, and do not hold throttle trigger fully depressed.
The attachment should not move at idle, otherwise serious
personal injury may result.
B
C
D
