Ecolab Ecoset-L User Manual

Ecodos-L, Ecorinse-L, Ecoset-L - 6 - Rev 3.12-07
4 Functional description, operation and settings
The control electronic is supplied with voltage via an external transformer (see accessory
list) as soon as the corresponding enabling signal from the dishwasher is applied. The
green LED at the front side of the unit lights up continuously in operation mode or is flash-
ing in standby mode.
The metering can be performed in “continuous controlled”, “timed controlled” or in “conduc-
tivity controlled” dosing mode. These modes can be set on the PCB
4.1 Settings
Detailed description see: “Operation manual Ecodos-PCB 2.237.82”
4.2 Adjustment of buzzer volume

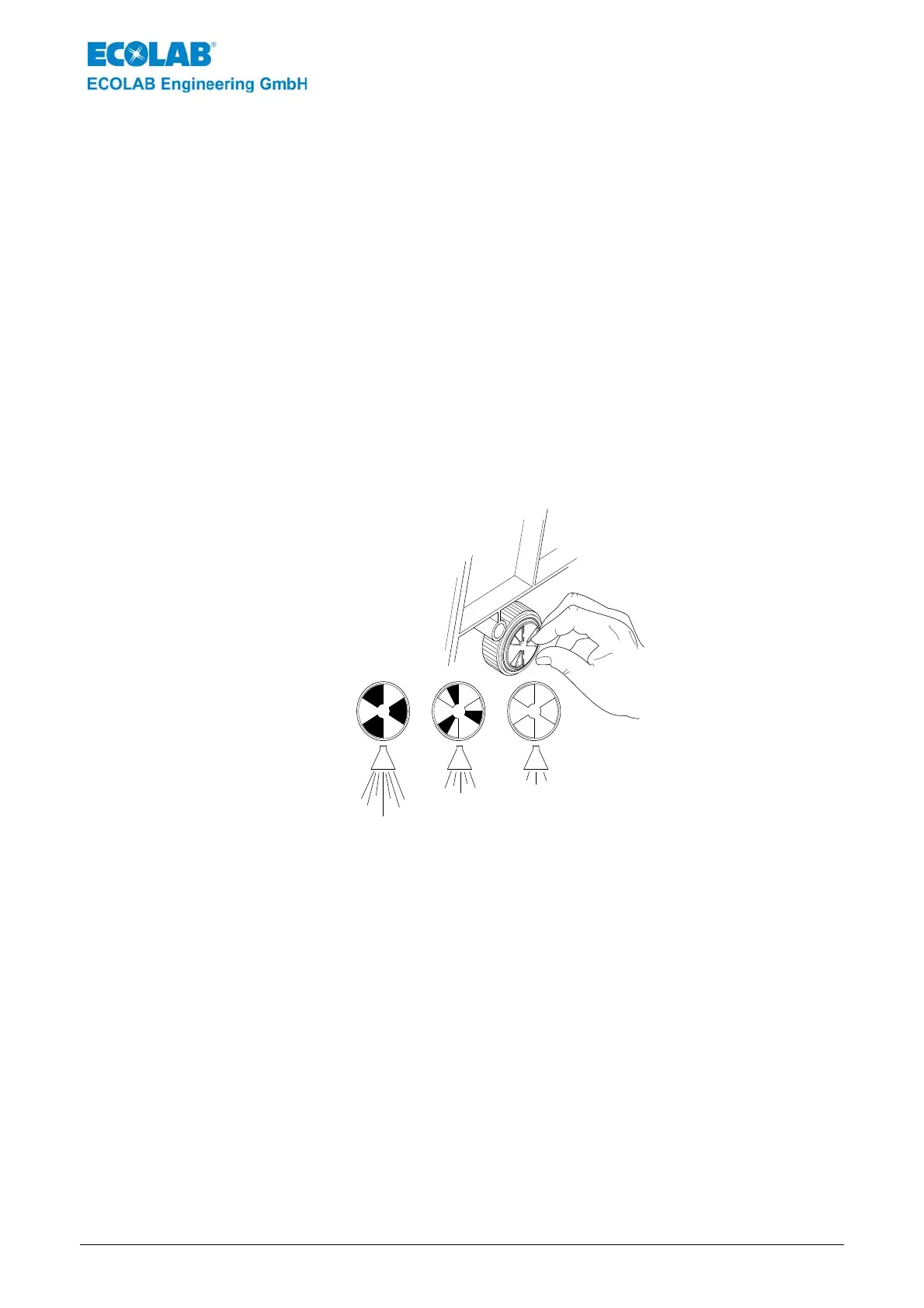

The unit comprises a buzzer for the acoustical alarm indication. It’s volume can be changed
by manually turning the inner disk (see illustration below).
Fig. 5.1
