Ecolab Ecoset-L User Manual

Ecodos-L, Ecorinse-L, Ecoset-L - 9 - Rev 3.12-07

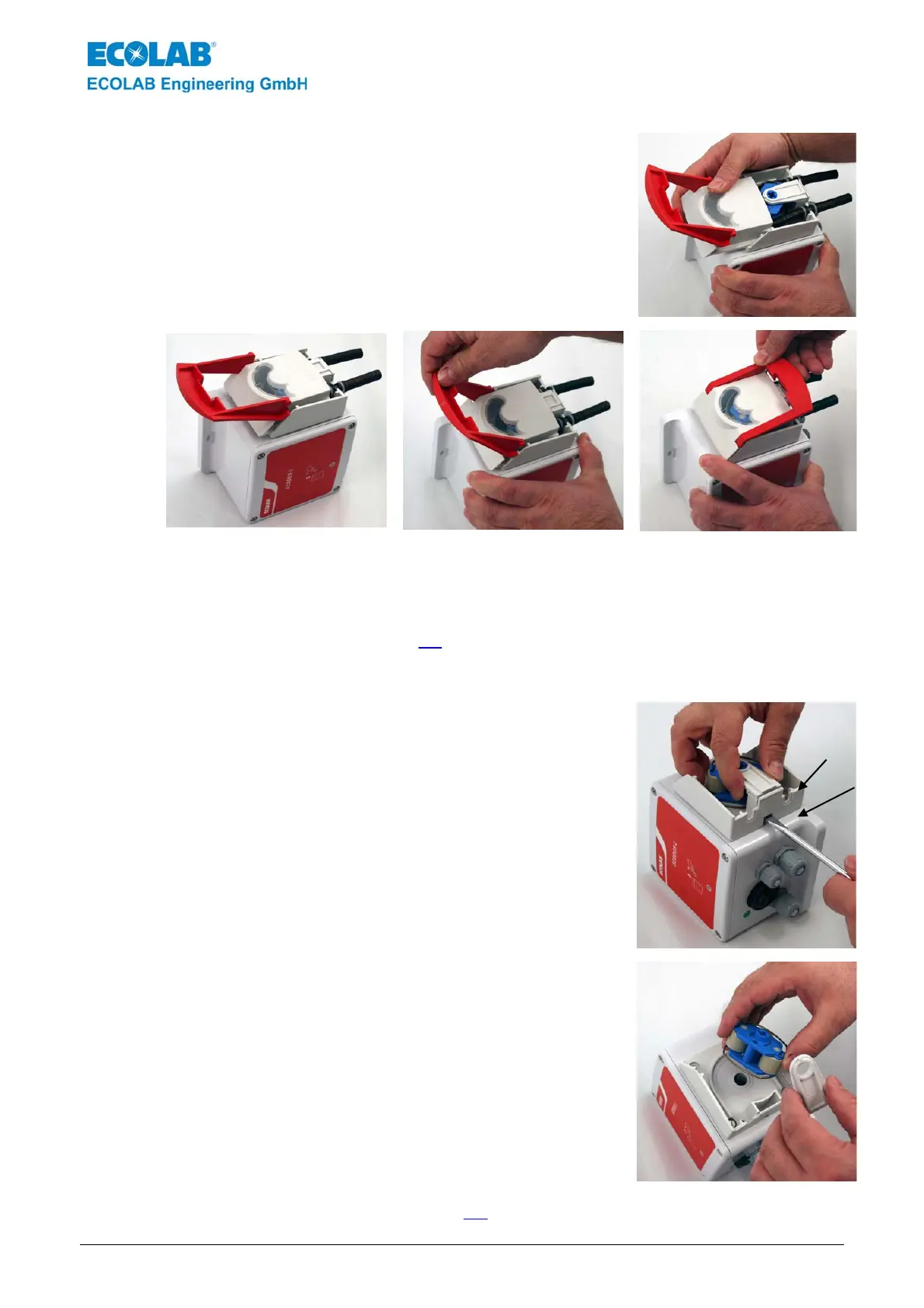

Fig. 6.4
6. Push cover on back wall and click blue lever into strap.
Fig. 6.5 Fig. 6.6 Fig. 6.7
6.2 Replacement of roller assy
Perform the replacement of the roller assy as follows:
1. Remove cover (see Chapter 6.1
).
2. Remove old peristaltic tube.
3. Clean tube housing and remove old silicone residues.
Fig. 6.8
4. Press fixation strap (1) with screw driver and lift of
holder of roller assy (2).
5. Carefully remove roller assy from pump head housing.
Fig. 6.9
6. Insert new roller assy, mount roller holder.
7. Reinstall pump head (see Chapter 6.1
).
2
1
