Ecolab Ecoset-L User Manual

Ecodos-L, Ecorinse-L, Ecoset-L - 8 - Rev 3.12-07
6 Maintenance and repair instructions
CAUTION
Any service and repair work must be carried out by authorized personnel only.
Ensure, that the power supply from the dishwasher is interrupted.
WARNING
Only the original spare parts must be used.
Before any repair work is carried out, the unit must be disconnected from it’s power
source. Following each repair work a functional test of the unit must be performed.
)
NOTE
The following points are to be given particular attention during servicing
of the unit:
- Condition of all product leading parts
- Condition of all electrical wiring
Repair policy:
Any maintenance and repair is limited to parts of the pump head, peristaltic tube and the
PCB. For all other defective components, the unit must be either returned to the equipment
center or disposed in accordance with the environmental regulations.

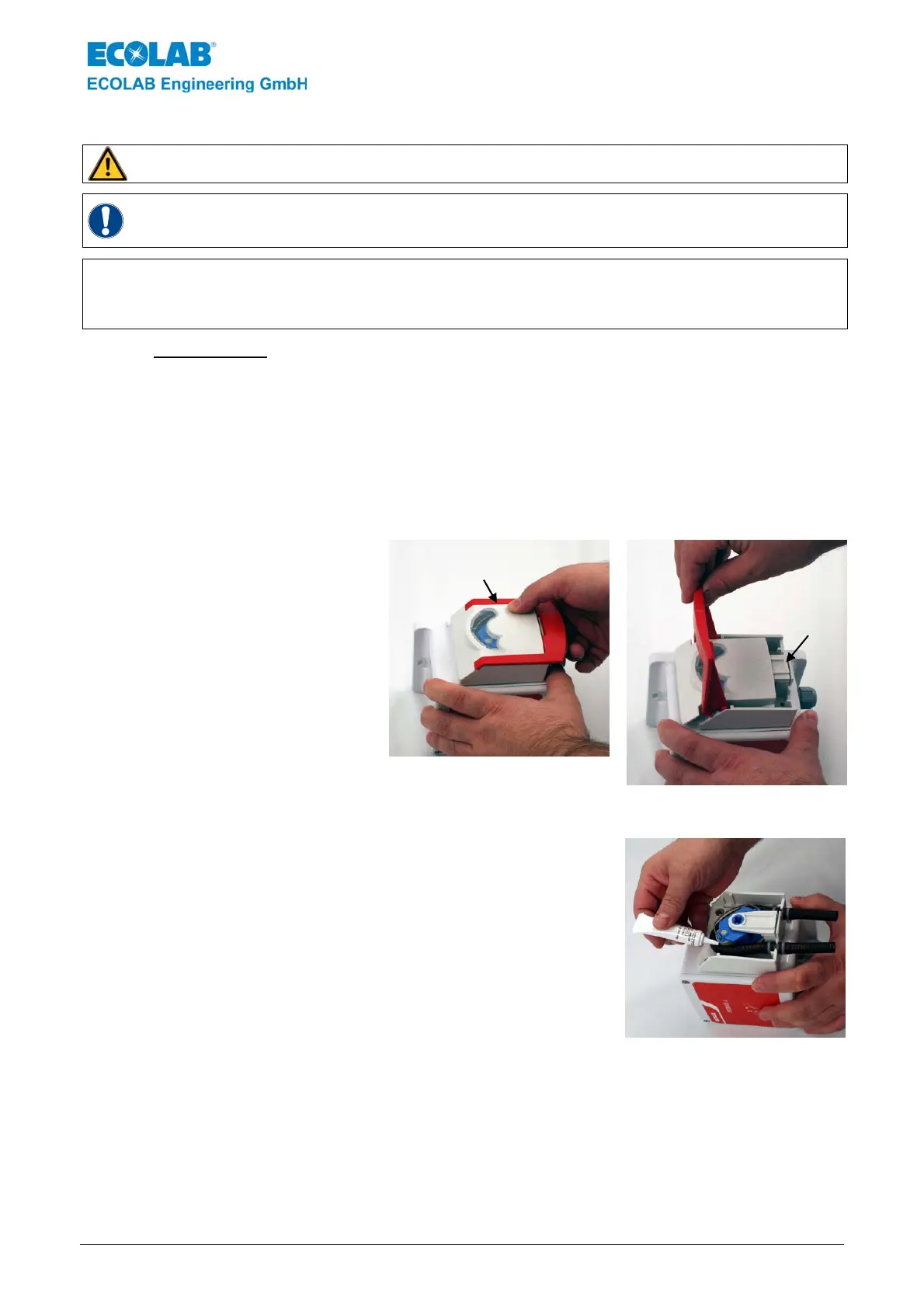

6.1 Replacement of peristaltic tube
1. Loosen tube ties and remove product feed- and metering tube from fittings.
Fig. 6.1 Fig. 6.2
2. Open lever while
pressing strap (1)
on back wall and lift
lever.
3. Remove old peristaltic tube.
4. Clean tube housing and remove old silicone residues.
Fig. 6.3
5. Insert new peristaltic tube and lubricate tube.
1
1
