9
Installing the Motherboard
Checking Jumper Settings

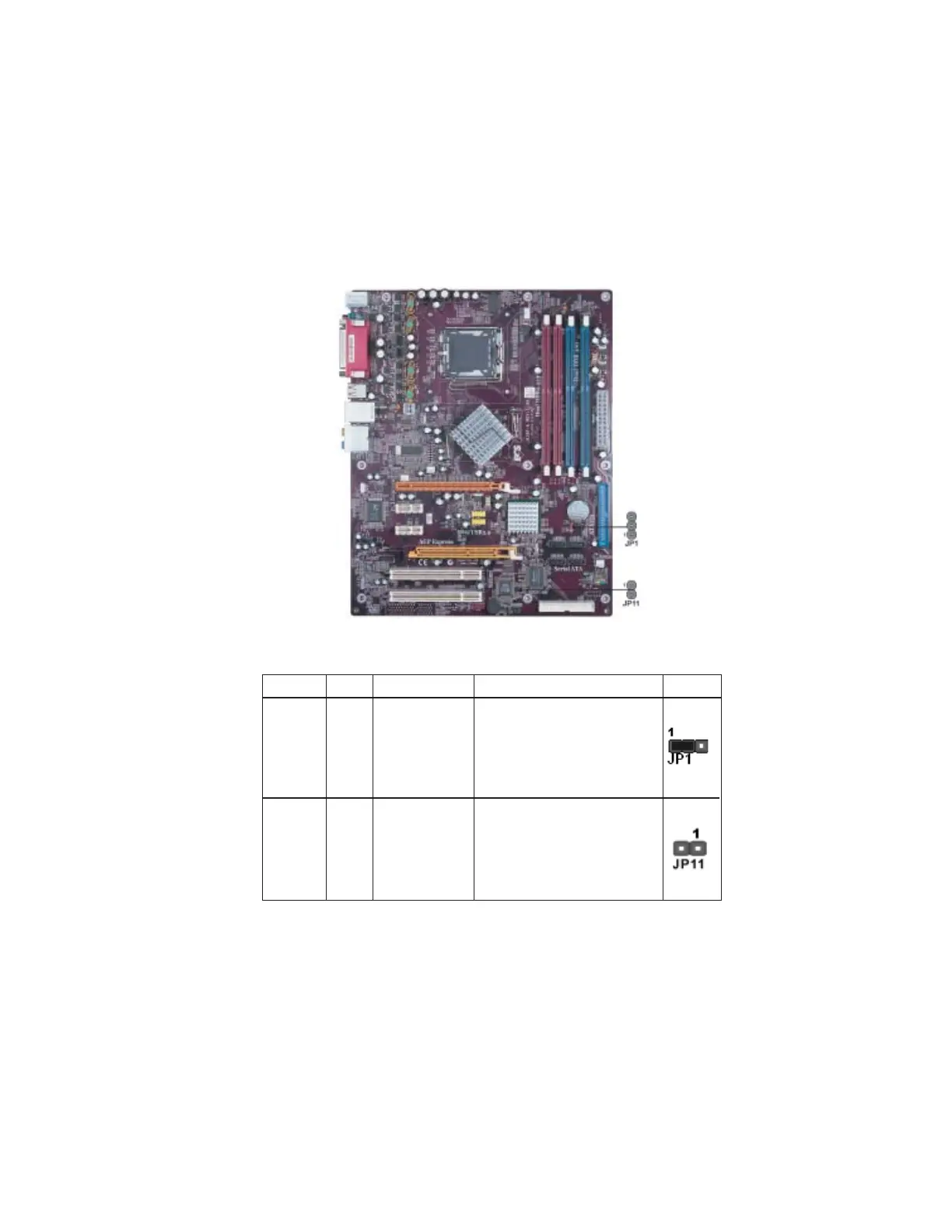

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
T
ype
Description
Setting (default)
JP1
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CMOS CLEAR
Before clearing the
CMOS, make sure to
turn off the system.
JP1
1
2-pin
BIOS WRITE
OPEN: WRITW UNPROTECT
SHOR
T
: WRITE
PROTECT
14
