ECS A785GM-M5 User Manual

23
Installing the Motherboard
Connecting I/O Devices

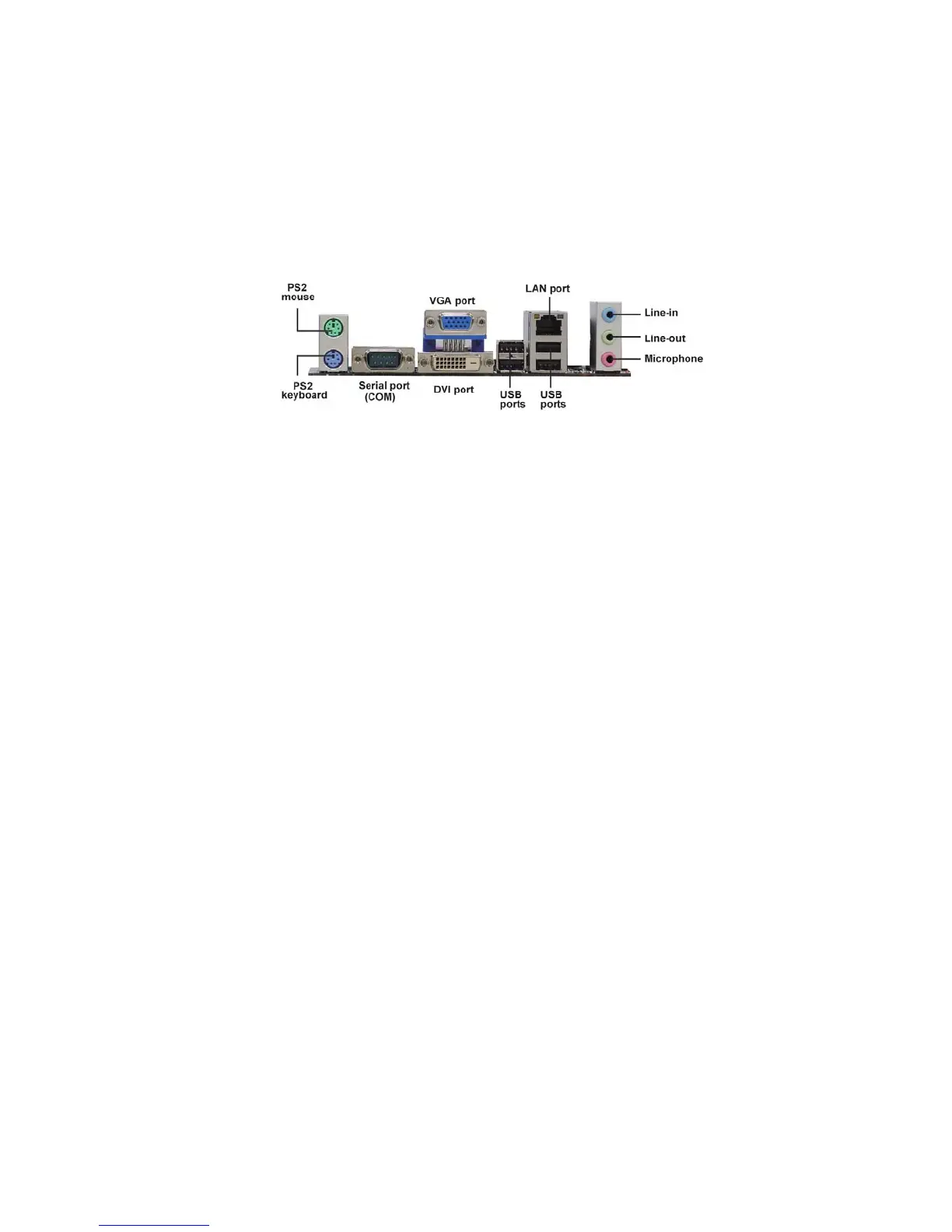

The backplane of the motherboard has the following I/O ports:
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
VGA Port Connect your monitor to the VGA port.
USB Ports Use the USB ports to connect USB devices.
Audio Ports
LAN Port Connect an RJ-45 jack to the LAN port to connect your
computer to the network.
DVI Port
Connect the DVI port to connect the monitor.
Serial Port
(COM)
Use the COM port to connect serial devices such as mouse
or fax/modems.
Use the three audio ports to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for stereo
line-out signal. The third jack is for microphone.

ECS A785GM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Graphics card	Radeon HD 4200
Maximum graphics card memory	512 MB
RAID levels	0, 1, 10

Weight and Dimensions

Depth	210 mm
Width	244 mm
