ECS A785GM-M5 User Manual

48
Using the Motherboard Software
Utilities Tab
Lists the software utilities that are available on the disk.
Information Tab
Displays the path for all software and drivers available on the disk.
Running Setup
Follow these instructions to install device drivers and software for the motherboard:

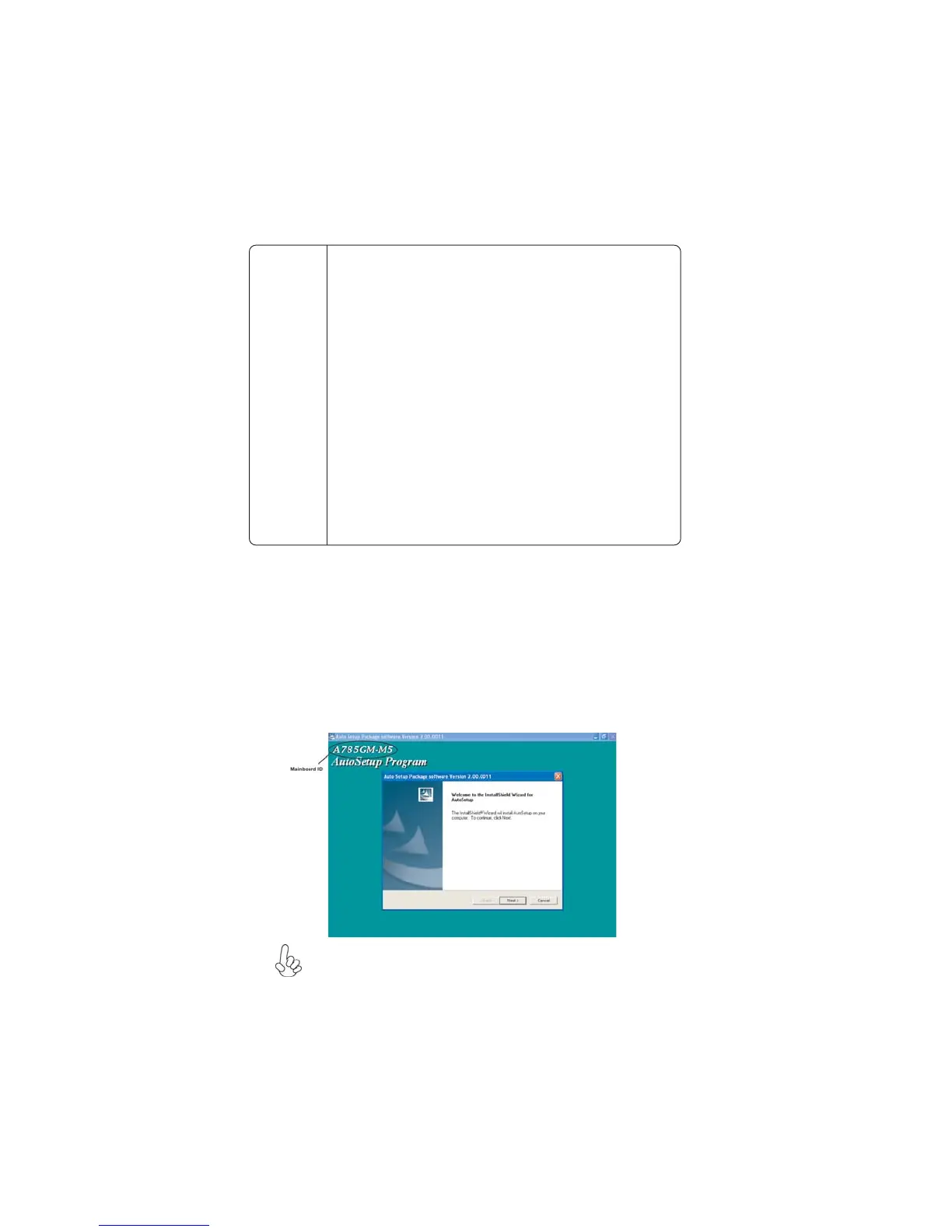

1. Click Setup. The installation program begins:
The following screens are examples only. The screens and driver lists
will be different according to the motherboard you are installing.
The motherboard identification is located in the upper left-hand corner.
Drivers Tab
Setup
Click the Setup button to run the software installation program.
Select from the menu which software you want to install.
Browse CD
Exit The EXIT button closes the
Auto Setup window.
The Browse CD button is the standard Windows command that
allows you to open Windows Explorer and show the contents of
the support disk.
Before installing the software from Windows Explorer, look for
a file named README.TXT or something similar. This file may
contain important information to help you install the software
correctly.
Some software is installed in separate folders for different operat-
ing systems, such as Windows XP/Vista/7. Always go to the cor-
rect folder for the kind of OS you are using.
In install the software, execute a file named SETUP.EXE by
double-clicking the file and then following the instructions on the
screen.

ECS A785GM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1705
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Graphics card	Radeon HD 4200
Maximum graphics card memory	512 MB
RAID levels	0, 1, 10

Weight and Dimensions

Depth	210 mm
Width	244 mm
