ECS A790GXM-AD3 User Manual

53
ATI CrossFireX
TM
Technology & Hybrid Graphics
®
Technology Support
Chapter 5
ATI CrossFireX
TM
Technology & Hybrid Graphics
®
Technology Support
This motherboard supports ATI CrossFireX
TM
Technology that allows you to install
multi-graphics processing units (GPU) graphics cards. Follow the installation proce-
dures in this section.
Requirements
1 You should have a CrossFireX
TM
Ready motherboard, a CrossFireX
TM
Edi-
tion graphics card and a CrossFireX
TM
ready graphics card.
2 Visit the ECS website (www.ecs.com.tw) for a list of qualified CrossFireX
TM
ready graphics card for this motherboard.
3 Make sure that your graphics card driver supports the ATI CrossFireX
TM
technology. Download the latest driver from the ATI website
(www.ati.com).
4 Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system.
Installation and Use of CrossFireX
TM
Technology

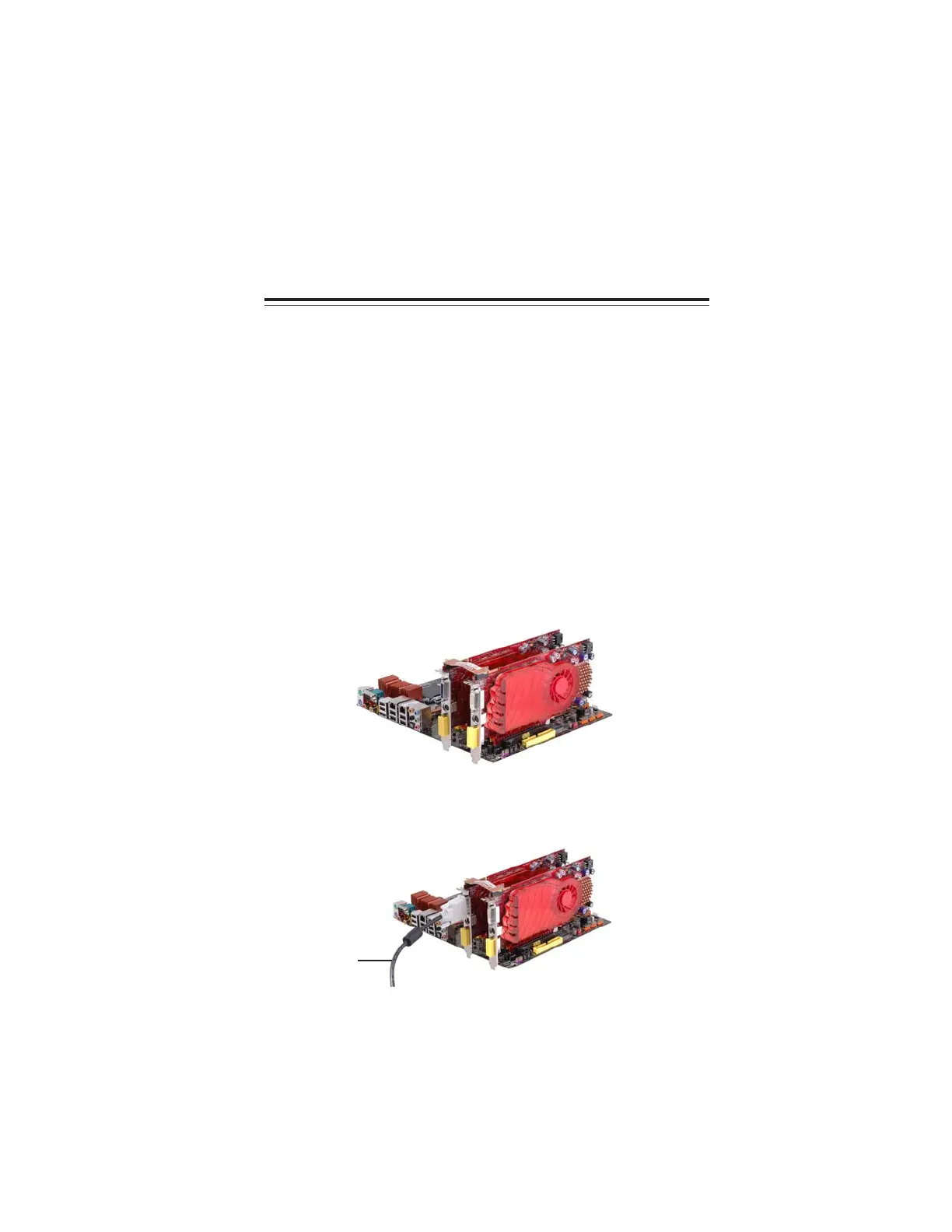

1. Insert the CrossFireX
TM
graphics cards into the PCIE16X_1 and PCIE16X_2 slots.
Make sure that the card is properly seated on the slot.
2. Connect an external cable to the CrossFireX
TM
ready graphics card installed on the
PCIE16X_2 slot.
External Cable

ECS A790GXM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	6
Number of EATX power connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Motherboard chipset	AMD 790GX
Audio output channels	7.1 channels
Motherboard form factor	ATX
PCI Express x16 slots	2
Controller interface type	AMD SB750
Controller 2nd interface type	JMB 361
Graphics card	Radeon HD 3300
RAID levels	0, 1, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
